| Categories | PLC Programmable Logic Controller |
|---|---|
| Brand Name: | Schneider |
| Model Number: | TSXAEY414 |
| Place of Origin: | France |
| MOQ: | 1 |
| Price: | negotiable |
| Payment Terms: | TT West Union |
| Supply Ability: | 100 |
| Delivery Time: | 2-3 work days |
| Packaging Details: | New in original box |
| Brand: | Schneider |
| Model: | TSXAEY414 |
| Series: | TSX |
| Product Name: | Analog input module |
| Micro: | TSX |
| Condition: | New |
| Lead time: | In Stock |
| Country of origin: | France |
Schneider Modicon Premium series Analog input module TSXAEY414
Description
TSXAEY414 is a Modicon Premium series analog input module launched by Schneider Electric. It features 4 high-level input channels, supports 16-bit resolution, and enables high-precision data acquisition. The rated working current of this module is 660mA under 5VDC, and it is suitable for industrial automation environments. Currently, this model has been discontinued and only provides after-sales service support. Its design aims to meet the strict requirements for signal accuracy and stability, and is commonly used in process control and monitoring systems.
Specifications
| Range of Product | Modicon Premium Automation platform |
|---|---|
| Product or Component Type | Analog input module |
| Input level | Low level |
| Analogue input number | 4 |
| Analogue input type | Current 4...20 mA Voltage +/- 10 V Voltage 0...10 V Voltage 0...5 V Voltage 1...5 V Thermocouple thermocouple B Thermocouple thermocouple E Thermocouple thermocouple J Thermocouple thermocouple K Thermocouple thermocouple L Thermocouple thermocouple N Thermocouple thermocouple R Thermocouple thermocouple S Thermocouple thermocouple T Thermocouple thermocouple U Resistor 0...3850 Ohm Resistor 0...400 Ohm Temperature probe Ni 1000 2 wires Temperature probe Ni 1000 4 wires Temperature probe Pt 100 2 wires Temperature probe Pt 100 4 wires Temperature probe Pt 1000 2 wires Temperature probe Pt 1000 4 wires Voltage - 13...63 mV Voltage +/- 5 V |
| Analog/digital conversion | 16 bits |
| Nominal read cycle time | 550 ms |
|---|---|
| Measurement error | 0.13 % of full scale 0...400 Ohm 25 °C 0.16 % of full scale 0...10 V 25 °C 0.19 % of full scale - 13...63 mV 25 °C 0.22 % of full scale 0...3850 Ohm 25 °C 0.22 % of full scale 0...5 V 25 °C 0.27 % of full scale +/- 10 V 25 °C 0.27 % of full scale +/- 5 V 25 °C 0.27 % of full scale 0...400 Ohm 0...60 °C 0.27 % of full scale 1...5 V 25 °C 0.39 % of full scale 0...10 V 0...60 °C 0.44 % of full scale - 13...63 mV 0...60 °C 0.45 % of full scale 0...5 V 0...60 °C 0.45 % of full scale 4...20 mA 25 °C 0.48 % of full scale 0...3850 Ohm 0...60 °C 0.5 % of full scale +/- 10 V 0...60 °C 0.5 % of full scale +/- 5 V 0...60 °C 0.56 % of full scale 1...5 V 0...60 °C 0.86 % of full scale 4...20 mA 0...60 °C 1.5 °C thermocouple B external 25 °C 1.5 °C thermocouple E external 25 °C 1.5 °C thermocouple T external 25 °C 1.5 °C thermocouple U external 25 °C 1.8 °C thermocouple J external 25 °C 10.5 °C thermocouple K internal 0...60 °C 11 °C thermocouple R internal 0...60 °C 12 °C thermocouple S internal 0...60 °C 2 °C thermocouple L external 25 °C 2 °C thermocouple N external 25 °C 2.3 °C thermocouple K external 25 °C 3.1 °C thermocouple U external 0...60 °C 3.2 °C thermocouple E external 0...60 °C 3.2 °C thermocouple R external 25 °C 3.2 °C thermocouple T external 0...60 °C 3.4 °C thermocouple S external 25 °C 3.5 °C thermocouple B external 0...60 °C 3.5 °C thermocouple B internal 25 °C 3.8 °C thermocouple J external 0...60 °C 4.1 °C thermocouple L external 0...60 °C 4.3 °C thermocouple N external 0...60 °C 4.7 °C thermocouple K external 0...60 °C 5.4 °C thermocouple U internal 25 °C 6 °C thermocouple N internal 25 °C 6 °C thermocouple R internal 25 °C 6.1 °C thermocouple E internal 25 °C 6.6 °C thermocouple S internal 25 °C 6.6 °C thermocouple T internal 25 °C 7.3 °C thermocouple J internal 25 °C 7.3 °C thermocouple U internal 0...60 °C 7.5 °C thermocouple L internal 25 °C 7.7 °C thermocouple R external 0...60 °C 7.8 °C thermocouple K internal 25 °C 8.1 °C thermocouple B internal 0...60 °C 8.1 °C thermocouple E internal 0...60 °C 8.5 °C thermocouple S external 0...60 °C 8.7 °C thermocouple N internal 0...60 °C 8.8 °C thermocouple T internal 0...60 °C 9.5 °C thermocouple J internal 0...60 °C 9.8 °C thermocouple L internal 0...60 °C 1 °C Ni 1000 25 °C 1.2 °C Pt 100 25 °C 2 °C Ni 1000 0...60 °C 2.4 °C Pt 100 0...60 °C 2.5 °C Pt 1000 25 °C 5 °C Pt 1000 0...60 °C |
| Isolation between channels and bus | 1780 Vrms |
| Isolation between channels and ground | 1780 Vrms |
| Isolation between channels | 2830 Vrms |
| Common mode between channels | 415 V AC or 200 V DC |
| Common mode between channels and earth | 240 V AC or 110 V DC |
| Input overvoltage protection | -15…15 V at state 0 250 Ohm -30…30 V at state 1 250 Ohm |

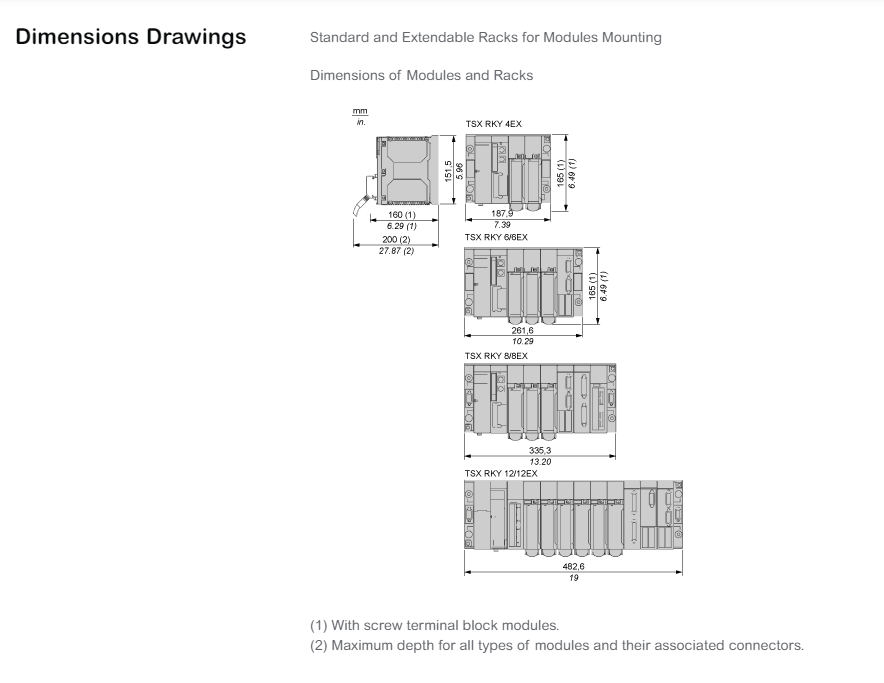

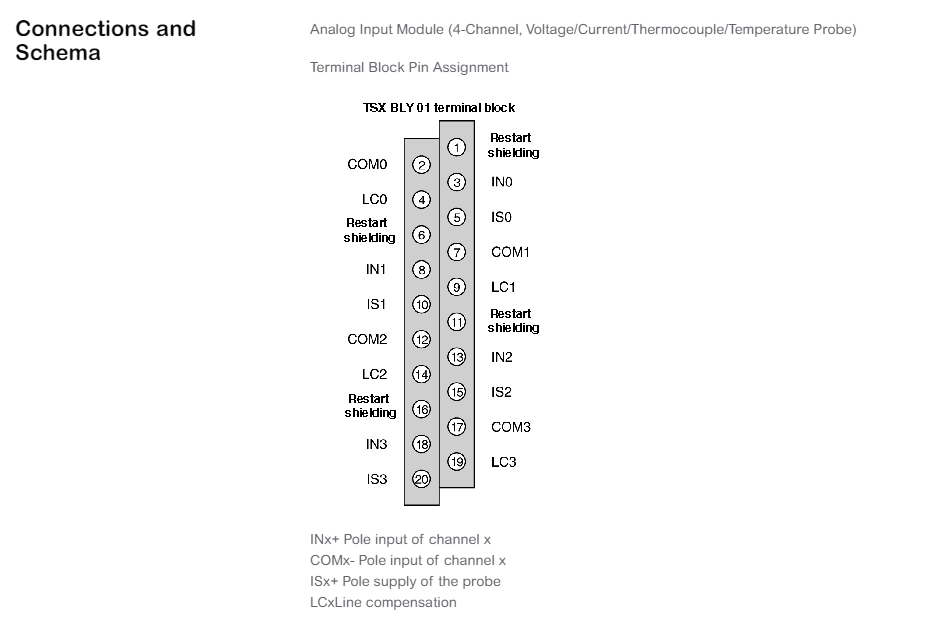

| Electrical connection | Screw terminal block |
| Overcurrent | -30…30 mA at state 1 250 kOhm |
| Marking | CE |
| Current consumption | 660 mA 5 V DC |
| Module format | Standard |
| Net Weight | 0.71 lb(US) (0.32 kg) |
| Standards | DIN 43760 IEC 584 IEC 751 DIN 43710 NFC 42-330 IEC 1131 |
|---|---|
| Product Certifications | DNV BV ABS RMRS RINA GL LR |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation for operation 5…95 % without condensation for storage |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Protective treatment | TC |
| IP Degree of Protection | IP20 |
| Pollution degree | 2 |
| Category | 22558-TSX PREMIUM, ATRIUM & PL7 PRO |
|---|---|
| Discount Schedule | PC22 |
| GTIN | 3389110756951 |
| Returnability | No |
| Country of origin | FR |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.2 in (5.5 cm) |
| Package 1 Width | 7.09 in (18.0 cm) |
| Package 1 Length | 10.2 in (26.0 cm) |
| Package weight(Lbs) | 16.05 oz (455.0 g) |
| Warranty (in months) | 18 |
|---|
