| Type: | ferrite tile |
| color: | black |
| base size: | 100*100 |
| thickness: | 5.2mm 6.7mm |
| 3dB Bandwidth: | 14K |
| Insertion Loss: | 100dB |
| Input Impedance: | 50ohm |
| Stopband Attenuation: | 100dB |
| application: | emc chamber |
| moq: | 500 pcs |
| supply: | 10000 |
| delivery: | by sea |
| Port: | shanghai |
| Company Info. |
| Changzhou Haozhuo Electronic Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

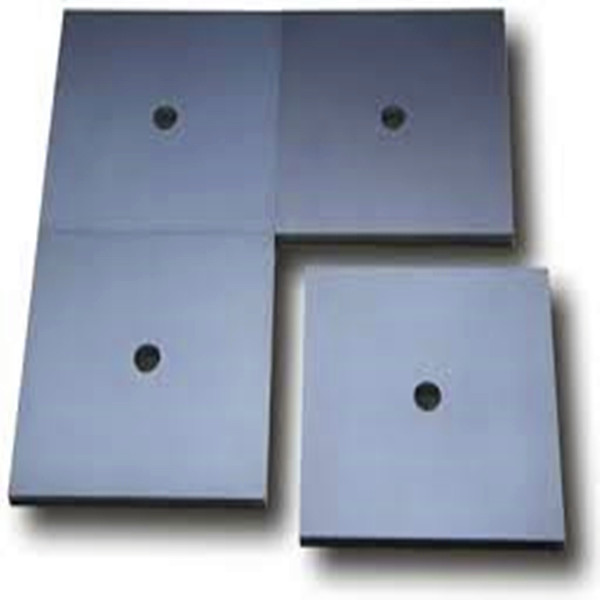

Ferrite Tile Size
Ferrite Tile Application
Based on the principle of having complex magnetic permeability equal (or nearly equal) to complex dielectric constant. Materials with this property exhibit an impedance equal to that of "free space" and therefore do not reflect radiated energy at normal incidence.
Ferrite Tile can provide 10dB - 25dB of absorption between 30MHz and 1GHz. Tiles are thin (approximately 0.26 inches), but can be heavy (roughly 10 lbs per square foot).
Size for EMC chamber ferrite tile
Application for EMC chamber ferrite tile
Used for EMC chamber
| Initial permeability | 5500 |
| Relative loss factor | 15@0.1MHz |
| Saturation flux density | 280(1194A/m) |
| Remanence | 180 |
| coercivity | 3 |
| Relative temp.factor | 3 |
| Curie temp. | 90 |
| Density | 4.85*1000 |
| Resistivity | 100 |

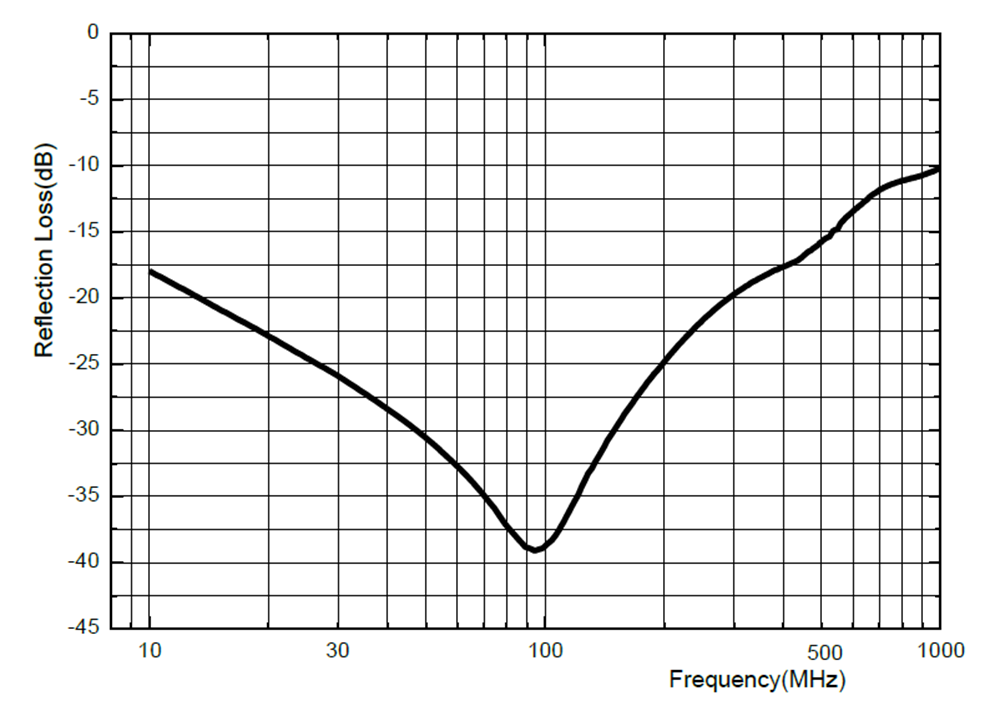

Performance
| 30MHz | -25.5dB |
| 100MHz | -38dB |
| 300MHz | -19.5dB |
| 500MHz | -16dB |
| 700MHz | -12dB |
| 1000MHz | -10dB |

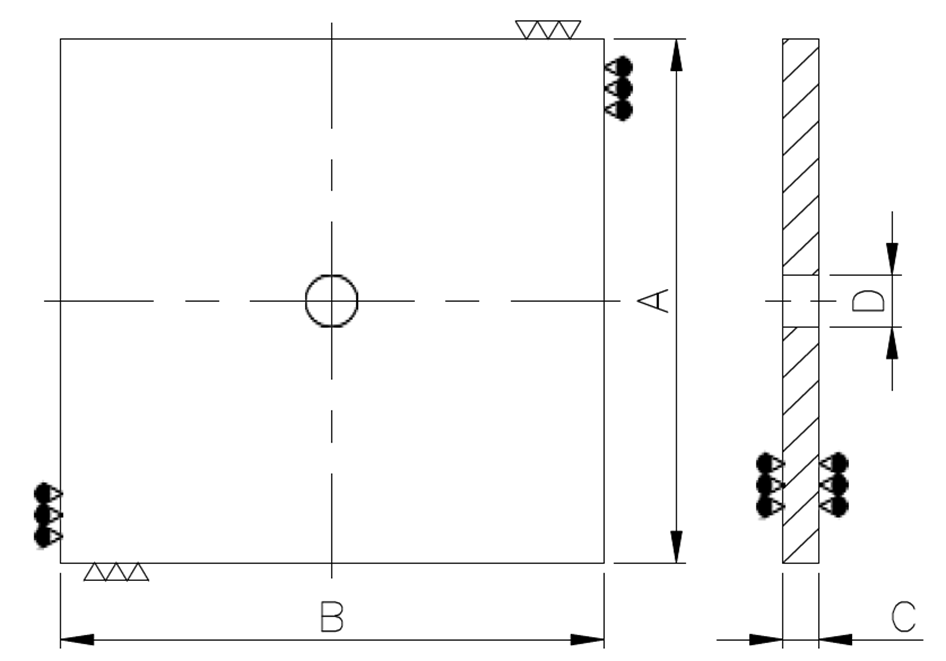

| Part | Dimentions in mm |
| A | 99.95 +/-0.10 |
| B | 99.95 +/-0.10 |
| C | 6.70 +/-0.10 |
| D | 10.00 +/-0.20 |
| Weight | 330g |
|
