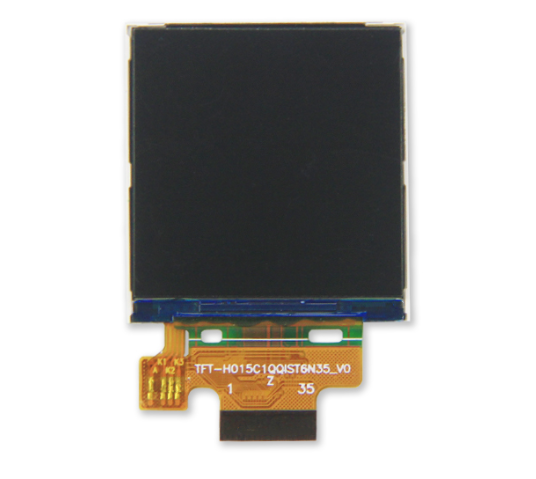

1.54" Inch With Touch 240x240 Square TFT LCD Display
This compact square display solution is specifically designed for
small smart devices, featuring IPS TFT technology with capacitive
touch capabilities.
Technical Specifications
| Product | 1.54" TFT Screen |
|---|
| Resolution | 240x240 |
|---|
| Viewing Direction | Full Viewing Angle (80/80/80/80) |
|---|
| Touch Screen | Without Capacitive Touch Screen (Optional) |
|---|
| Interface | MCU (Customizable) |
|---|
| Pin Number | 24 Pins |
|---|
| Surface Luminance | 500 Cd/m² (nits) |
|---|
| LED Lifetime | 40,000 Hours |
|---|
Product Core Features

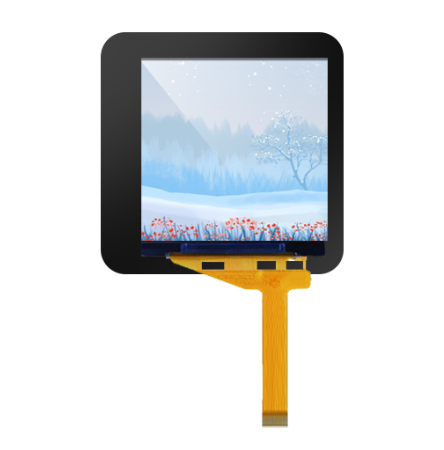

This 1.54-inch display features a diagonal size with 240×240 pixel
resolution and an effective display area of approximately
27.72×27.72mm. The thin, lightweight design (common thickness
around 2mm) incorporates IPS technology for full viewing angles up
to 80°+ in all directions with vivid, transparent colors.
- Capacitive touchscreen with G+F or G+G structure
- Sensitive touch response supporting single-point or simple
multi-point operations
- SPI/MCU + I²C touch interface compatibility
- Common driving chips: ST7789, GC9307
- 3.3V operating voltage with low power consumption
- Wide temperature operating range: -20ºC to 70ºC
- RoHS environmental compliance
Main Application Scenarios
- Smart wearable devices: smart watches, fitness trackers, health
monitoring bracelets
- Portable medical instruments: blood glucose meters, blood pressure
monitors, blood oxygen meters
- Smart home and IoT terminals: switch panels, environmental
monitors, sensor gateways
- Small industrial control and handheld devices: barcode scanners,
POS terminals, sensor displays
- Maker and DIY electronic projects: Arduino, ESP32 development
boards, custom instruments
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is
65x30x2.8mm?
No problem. Please send us your specification/drawing paper. If you
don't have specifications, you can provide samples; we will
recommend suitable products or customize based on your
requirements.
This LCD is just what we want, but it is big size, do you have any
smaller size? And the display content need to be changed a little.
For segment type LCD modules, if you need to modify outline size or
display content, a new LCD glass module is required. We will open
new tooling for you.
This LCD display is HTN type, but I want STN type, can you make?
That's all right. We can change the type according to your request.
I want to customize a new LCD module. Can you do?
Yes, we can. Please send your drawing paper. If you don't have one,
please advise the outline size, display information (glass
thickness, polarizer, display type, connector mode, storage temp,
operating temp, supply voltage, viewing direction, drive
condition), and we can customize for you.
What is leading time for tooling?
Generally, it takes 15 to 25 days after drawing paper confirmation
and tooling charge payment. We will report the exact time when you
confirm the drawing paper.
Can you send us samples for checking?
Yes. Sample orders are available.
What is the Leading Time?
If we have stock for standard products, the lead time is one day
after payment. For mass production of special orders, the lead time
is about 15-30 days. If we can finish earlier, we will report the
information in advance.
