| Categories | Orbital Steering Valve |
|---|---|
| Brand Name: | HANJIU |
| Model Number: | 101S-5T-500-17-E |
| Certification: | CE |
| Place of Origin: | CHINA |
| MOQ: | 50 Sets |
| Price: | Negotiable |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 300000 Sets Per Year |
| Delivery Time: | 10-15 work days |
| Packaging Details: | Carton Packing and finally with a Tray, or Wooden Box |
| Product Name: | Road Roller Spare Parts |
| Relieve Valve: | 15Mpa |
| Shock Valve: | 21Mpa |
| Function: | Load sensing |
| Displacement: | 800 ml/r |
| Max input speed: | 75rpm |
| Company Info. |
| Shijiazhuang Hanjiu Technology Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

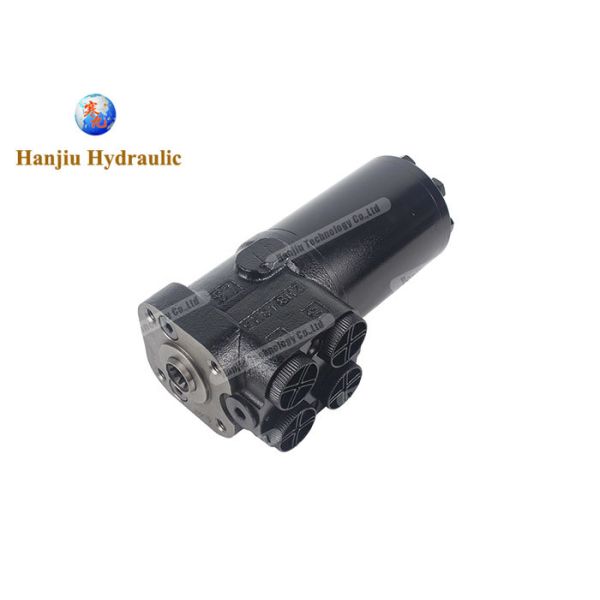

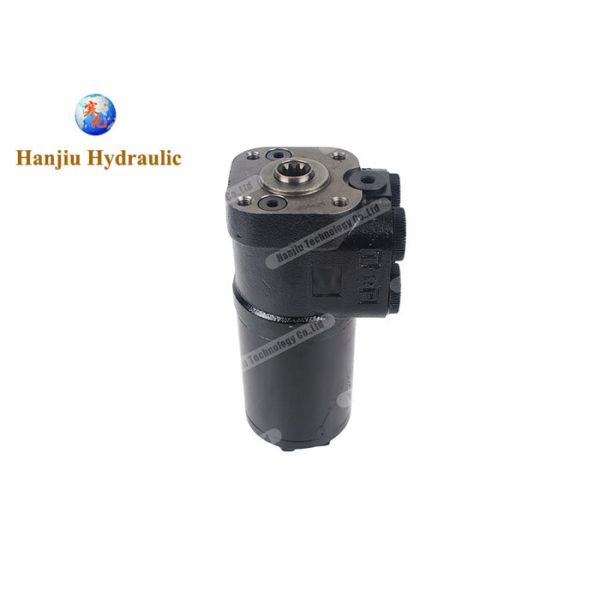

11144087 OSPC 800 LS steering unit Load sensing hydraulic orbitrol
type number:Hanjiu 101s,101S-5T-800-15-E
displacement:800cc
function:load sensing type
relief valve pressure settings:15 mpa
shock valve pressure settings:21mpa
crossing code:OSPC800 LS
OEM part:11144087
Application: loaders, backhoe loaders
Hydraulic Steering Unit 10 Series is integral steering unit, the
valve body of rotary valve is integral structure, then the steering
unit can integrate with cartridge valve, such as the steering
control valve of the integral system. This 101S type steering unit
with relief valve and shock valve, 101S series can 100% replace
OSPC
Specification:
| Parameters | Series 101S-5(T)(TE)(L)(E)-*** | |||||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 | 500 |
| Max.input speed(rpm) | 100 | 75 | ||||||||||
| Max.input pressure(Mpa) | 17.5 | |||||||||||
| Max.cont.back pressure | 2.5 | |||||||||||
| Relief Valve Pressure Settings(Mpa) | 06,07,08,10,12,14,15,16.5,17.5 | |||||||||||
| Shock Valves Pressure Settings(Mpa) | 12,13,14,16,18,20,21,22,23.5 | |||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.93 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 | 8.3 |

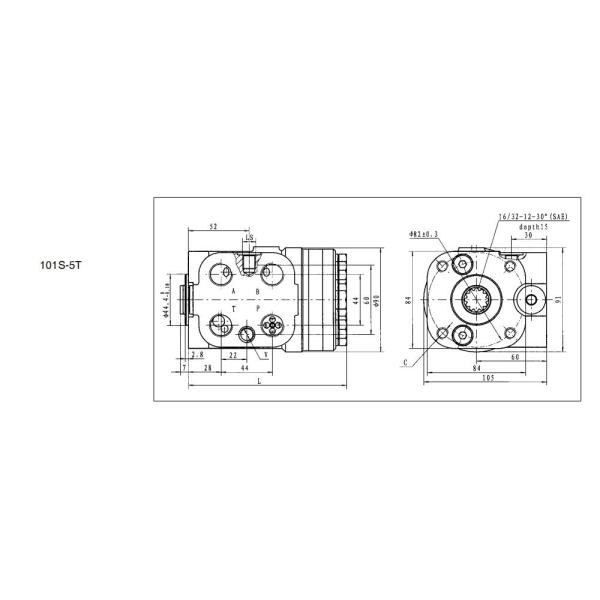

| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 | 183 |





|
