High-Performance J1939 Diagnostic Cable Assembly by Te Connectivity

High-Performance J1939 Diagnostic Cable Assembly by Te Connectivity

High-Performance J1939 Diagnostic Cable Assembly by Te Connectivity
High-Performance J1939 Diagnostic Cable Assembly by Te Connectivity
Categories Electronic Wiring Harness
MOQ: 5,000
Price: 100
Voltage: DC 300V
Contact resistance: 3.0 ohm MAX
Operating temperature: -40ºC to +125ºC
Vibration resistance: 20 G's at 10-2000Hz
IP rating: IP68
Waterproof depth: 1.2 meter for 24 hours
Dimensions: 40*30*23
Cavity size 3: 40.87mm x 27.15mm x 41.63mm x 21.62mm
Cavity size 4: 41.63mm x 40.51mm x 41.63mm x 32.54mm
Cavity size 5: 40.87mm x 30.94mm x 41.63mm x 25.43mm
Cavity size 6: 41.12mm x 36.91mm x 41.63mm x 28.98mm
Cavity size 9: 40.87mm x 40.47mm x 41.63mm x 32.54mm
Contact size 16: HD16 series
Contact size 12: HD16-6-12S-B010
Production capacity: 1000000 PCS/month
Contact Now
Company Info.
Edgar Auto Harnesses LTD.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

High-Performance J1939 Diagnostic Cable Assembly by Te Connectivity

High-Performance J1939 Diagnostic Cable Assembly
TE Connectivity HD Series J1939 automotive diagnostic cable assembly designed for heavy-duty vehicle applications.
Electrical Specifications
  • Voltage: DC 300V 5m ohm/10 ms
  • Contact Resistance: 3.0 ohm MAX
  • 100% Open, Short, Mis-Wire Testing

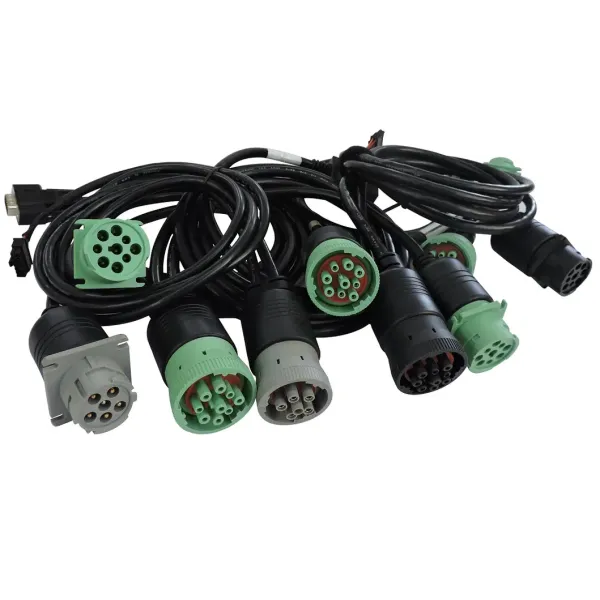

TE Connectivity J1939 Diagnostic Cable Assembly
SAE Standards Compliance
  • J1708 - Serial communications between ECUs on heavy duty vehicles
  • J1850 - Serial data protocol (10.4 kbit/s VPW or 41.6 kbit/s PWM)
  • J1939 - Data protocol for heavy duty commercial vehicles
  • J1962 - Physical connector for OBD-II interface
  • J1978 - Minimal operating standards for OBD-II scan tools
  • J1979 - Standards for diagnostic test modes
  • J2012 - Trouble codes and definitions
  • J2178-1 - Network message header formats and physical address assignments
  • J2178-2 - Data parameter definitions
  • J2178-3 - Network message frame IDs for single byte headers
  • J2178-4 - Network messages with three byte headers
  • J2284-3 - 500 kbit/s CAN Physical and Data link layer
  • J2411 - GMLAN (single-wire CAN) protocol for newer GM vehicles
DEUTSCH HD10 Series Connector Features
Environmentally sealed silicone rubber, thermoplastic cylindrical connector designed for faster, easier assembly in heavy-duty industries including trucks, buses, cross-country vehicles, cranes, and forklifts.
  • Environmental Protection: Contacts protected from water, dust, lubricating oils, fuel, road salt, grease, mud and other contaminants
  • Temperature Range: Operating at -40ºC to +125ºC, no cracking, chipping or leaking after 20 test cycles
  • Vibration Resistance: No unlocking or unmating after sinusoidal vibration levels of 20 G's at 10 to 2000Hz in three planes for 2 hours
  • IP68 Rating: Waterproof withstands immersion under 1.2 meters of water for 24 hours
DEUTSCH HD10 Series Connector Dimensions
Connector Dimensions
CavityOverall Length A (mm)Overall Height ØB (mm)Overall Length C (mm)Overall Height ØD (mm)
340.8727.1541.6321.62
441.6340.5141.6332.54
540.8730.9441.6325.43
641.1236.9141.6328.98
940.8740.4741.6332.54
HD10 Series Connector Specifications
HD10 Series Product Specifications
PositionContact SizeRear ThreadsPlugReceptacle InlineReceptacle Flange
316noHD16-3-16SHD14-3-16P-
316yesHD16-3-96SHD14-3-96PHD10-3-96P
44/16yesHD16-4-4S-HD10-4-4P
516noHD16-5-16SHD14-5-16PHD10-5-16P
616yesHD16-6-96SHD14-6-96PHD10-6-96P
612yesHD16-6-12S-B010HD14-6-12PHD10-6-12P
916noHD16-9-16SHD14-9-16PHD10-9-16P
916yesHD16-9-96SHD14-9-96PHD10-9-96P
9 (J1939)16yesHD16-9-1939SHD14-9-1939PHD10-9-1939P
Company Profile
Company Profile Overview
  • Privately held company, established in 1999
  • Sales volume over 16 Million USD since 2017
  • OEM & ODM company with 250+ employees, 7260 square-meter facility
  • Specialized in economical solutions and innovative wire harness design & manufacturing
  • IATF16949 (2016) & ISO 9001 (2015) certified
  • UL certified supplier with wiring No. E468011 & cable No. E479323
Company Facilities and Operations
Certifications
Company Certifications and Quality Standards
Frequently Asked Questions
Can you help with design?
Yes, we are an ODM/OEM company specializing in wire harness & cable assembly since 1999.
When do you start design assistance?
We provide initial design concepts for discussion. After quotation and order placement, we create detailed drawings and confirm with the client.
How do you handle quality issues?
Our quality and engineering teams respond to quality issues within 72 hours, committed to long-term partnerships and superior service.
Do you have standard products to reduce lead times and tooling costs?
Yes, we maintain over 1000 sets of molds, many of which can be used directly for customer projects. Our team has over 20 years of experience with 5000+ products.
Contact Us
For more information about our J1939 diagnostic cable assemblies and custom wire harness solutions, please contact our technical team.
