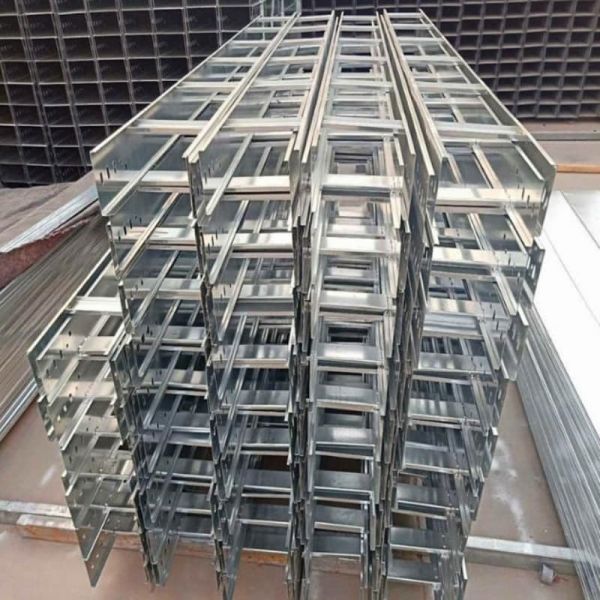

Hot Dipped Galvanized Wire Ladder Rack Versatility And Scalability

wire ladder rack

Bending company's Key Features of Wire Ladder Rack

Wire Ladder Rack is the preferred cable pathway for high-density and critical environments due to its robust design. Here are its defining features:

• Open Design: The signature "ladder" rungs allow for maximum heat dissipation and easy visual inspection of cables. This makes it ideal for high-bandwidth, heat-generating cables.

• Superior Strength & Load Capacity: Constructed from heavy-gauge steel or aluminum, it is designed for long-span installations (up to 20 ft or more between supports) with very high load ratings (often 100+ lbs/ft).

• Versatility & Scalability: Its modular design allows for creating custom runs with straight sections, horizontal/vertical bends, tees, and crosses. It easily adapts to complex building layouts.

• Safety & Compliance: Top-tier products are tested and listed to critical safety standards like UL Classified and comply with TIA-569-D and BICSI recommendations for telecommunications pathways.

Bending company's Selection Requirements & Key Considerations

Choosing the right ladder rack involves evaluating several technical and project-specific factors.

1. Material & Finish

• Steel (Pre-Galvanized or Hot-Dip Galvanized): Offers the highest strength. Hot-dip galvanized provides superior corrosion resistance for harsh environments.

• Aluminum: Lightweight, naturally corrosion-resistant, and excellent for data centers where weight is a concern. Typically has a lower load capacity than comparable steel.

2. Load Capacity & Structural Design

• Load Class (Per NEMA VE 1 / IEEE 1185): This is the most critical specification.

  • Class 1 (Light Duty): ~25-50 lbs/ft

  • Class 2 (Medium Duty): ~50-75 lbs/ft

  • Class 3 (Heavy Duty): ~75-100+ lbs/ft

  • Always calculate total cable weight with a safety factor (e.g., 1.5x).

• Rung Spacing & Design: Closer rung spacing (e.g., 6" vs. 9") provides better cable support, preventing sag for smaller-diameter cables like Cat 6/6A.

3. Dimensions & Configuration

• Width: Common widths are 12", 18", and 24". Wider trays accommodate more cables and aid in segregation (e.g., separating fiber from copper).

• Side Rail Height: Higher side rails (e.g., 3", 4", 6") prevent cable spillover and are required for heavier loads.

• Standard Lengths: Typically 10 ft or 12 ft straight sections. Confirm what is manageable for your site access.

4. Installation & Project Factors

• Support Span: Determine the maximum distance between supports (suspension rods). Heavier loads require shorter spans.

• Accessories: Ensure availability of splice plates, horizontal/vertical bends, reducers, tees, crossovers, and drop-outs.

• Support Hardware: Select appropriate threaded rod, beam clamps, wall brackets, or ceiling attachments compatible with your building structure.

• Cable Fill & Bend Radius: Adhere to TIA/EIA-568 standards. Do not exceed 50% fill for planned capacity. Maintain minimum bend radii for cables (especially fiber optics).

Bending company's Wire Ladder Rack vs. Solid-Bottom Tray

This comparison helps validate if ladder rack is the right choice for your application.

Hebei Bendin Industrial Technology Co., Ltd. established in 2021(BDINDUSTRYIAL), has become a leading global manufacturer and exporter of premium cable tray solutions, backed by over 30 years of industry expertise in designing and producing cable trays, Workshop safety fence, Robot fence, Cable tray, electric fence with a strong reputation for excellence in quality, innovation, and customer-centric service.

We has a professional team of 190+ employees, including management and technical specialists, skilled production staff proficient in operating advanced machines, and sales team, all dedicated to delivering high-performance products that meet diverse project requirements worldwide.

Operating a state-of-the-art 15,000㎡ facility equipped with over 80 advanced machines such as fully automatic wire mesh welders, laser cutting machines, PE coating lines, and electrostatic coating lines.BDINDUSTRYIAL ensures precision engineering, standardized production, and rapid

Customization for projects of any scale.

Committed to quality at every stage from raw material selection to final inspection, the company holds certifications like ISO 9001 and CE, along with multiple national and international patents (1 utility model and 4 design patents, including 1 EU design patent), and protects its brand with 9 domestic trademarks and 1 EU trademark.

BDINDUSTRYIAL’s diverse product portfolio covers metal fences, Workshop safety fence, Robot fence, Cable tray, electric fence and so on.Serving clients in over 70 countries across North America, Europe, the Middle East, Southeast Asia.

Guided by the belief that "Customers are the heart of our business," BDINDUSTRYIAL strives to exceed expectations through uncompromising product quality, competitive pricing, timely delivery, and dedicated after-sales service. The company welcomes partnerships with distributors, contractors, and project owners worldwide to create innovative and reliable cable trays solutions that enhance safety and aesthetics, combining technical expertise, advanced manufacturing capabilities, and a customer-driven approach to meet global cable tray needs.
