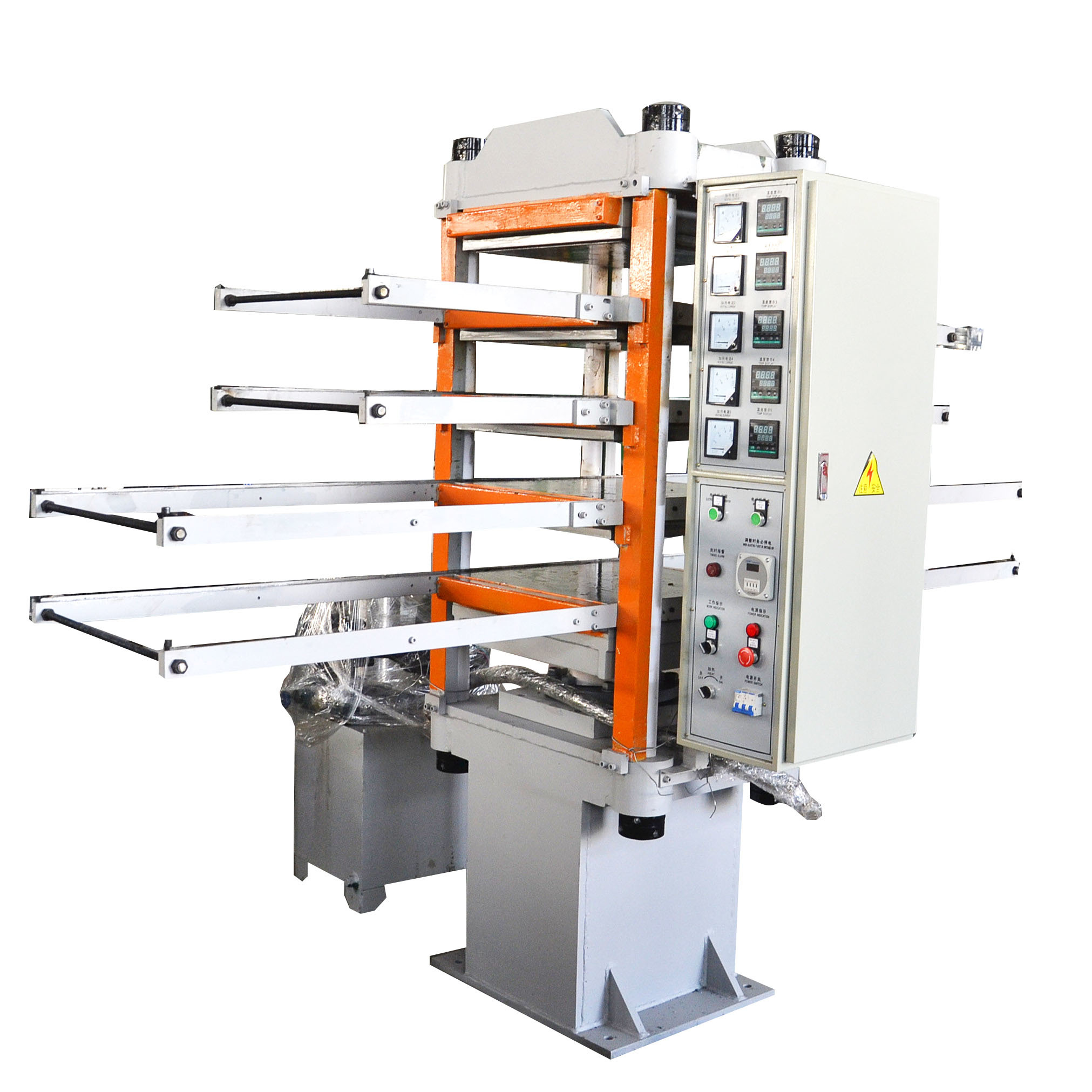

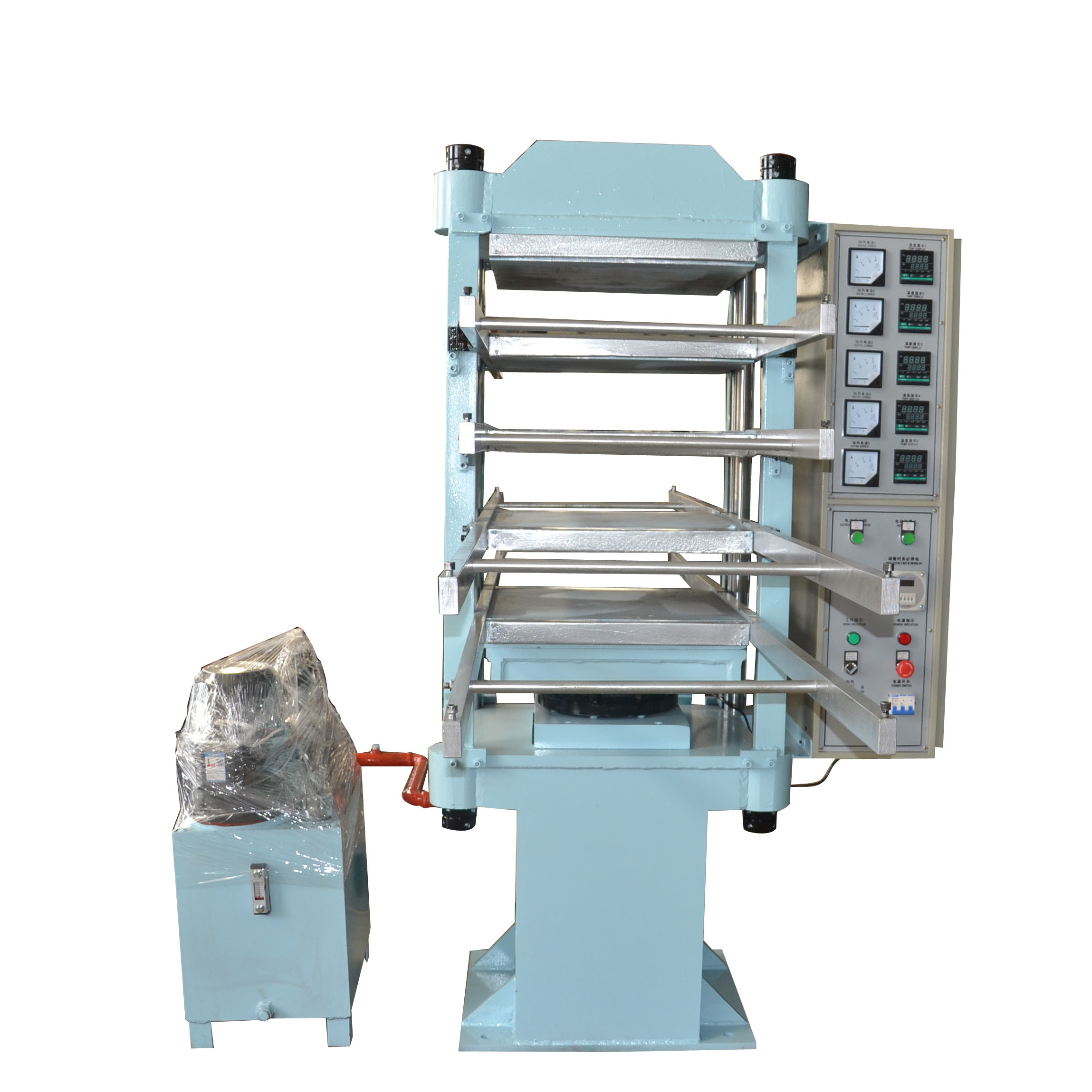

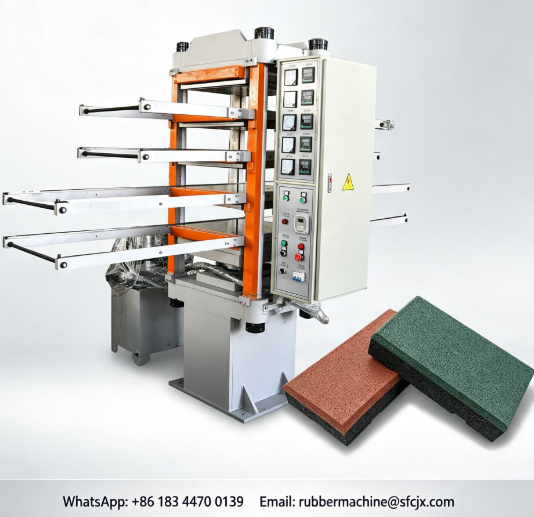

Rubber Tile Vulcanizing Press Machine
Automatic horizontal vulcanizing press machine designed for
manufacturing rubber floor tiles and bricks for sports venues and
industrial applications.
Technical Specifications
Model: XLB-400x400x4
Certifications: CE, ISO 9001:2015, SGS
Total Pressure: 0.5 MN
Plate Size: 400*400*45 mm
Plate Clearance: 125 mm
Working Layers: 4
Overall Dimensions: 1400*550*1500 mm
Production Capacity: 50 Sets/Year
Key Features
- ISO 9001:2015, CE, and SGS certified
- Oil-free operation design
- Enhanced rubber heat resistance
- Customizable tonnage and size according to customer requirements
- One-year quality guarantee
- Manual push-out device included
- Compatible with molds from 20mm to 75mm thickness
- Optional rubber mixer available
- Compact footprint - complete setup with 12 molds and mixer requires
only 8m³
- Custom non-standard designs available
Model Comparison
| Model | XLB-350X350X1(2) | XLB-400X400X2(4) | XLB-550X550X2(4) | XLB-650X650X2(4) | XLB-750X850X2(4) |
|---|
| Nominal Pressure (MN) | 0.25 | 0.50 | 0.60/0.80 | 1.00 | 1.60 |
| Plate Size (mm) | 350*350 | 400*400 | 550*550 | 650*650 | 750*850 |
| Working Layers | 1(2) | 2(4) | 2(4) | 2(4) | 2(4) |
| Weight (kg) | 800 | 1300 | 1500 | 3500 | 6500(7500) |
Manufacturer Profile
Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd is a
high-tech backbone enterprise specializing in rubber machinery
production, located at Kangting Road No. 1, Huangdao New District,
Qingdao City.
Product Range
Our products serve multiple industries including tire
manufacturing, rubber conveyor belt production, various rubber
products, tire refurbishing, and waste tire recycling.
Main Equipment: Rubber Kneader, Rubber Mixing Machine, Rubber Vulcanizing Press,
Batch Off Cooler, Rubber Calender, Waste Tire Crusher, Rubber
Extruder, Rubber Strainer.
Global Reach: Exported to over 50 countries including UK, Switzerland, USA,
Germany, Brazil, Singapore, Malaysia, India, Russia, and more.
Quality Commitment
- All components undergo strict quality inspection before storage
- Comprehensive pre-shipment testing including 24-hour pressure
testing at 1.25* rated pressure
- Free technical support for all products
- 3-year warranty on main parts, 1-year on wearing parts
- Remote support and on-site service available
Certifications
Customer Services
- Custom machine design with engineering drawings
- Production progress photos and updates
- Complete documentation including packing list, commercial invoice,
and bill of lading
- Free technical drawings, installation guides, user manuals, and
maintenance documentation
- Overseas engineer services and operator training
Frequently Asked Questions
What does your factory do regarding quality control?
We implement comprehensive quality control throughout production.
Every machine undergoes full assembly and rigorous testing before
shipment.
What's the machine quality guarantee?
One-year quality guarantee. We use world-famous brand components to
ensure optimal performance.
Are you able to provide overseas installation and commissioning?
Yes, we provide overseas service and technical support. Small
machines typically take 2-3 days, while production lines require
about 30 days.
How can I trust you to deliver the right machine?
We maintain a company culture based on innovation, quality,
integrity, and efficiency, with proven partnerships with
world-renowned rubber manufacturers.
How can we visit your factory?
We are located in Qingdao City, Shandong province, China, near
Qingdao Jiaodong Airport. We provide airport pickup services.
