TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity

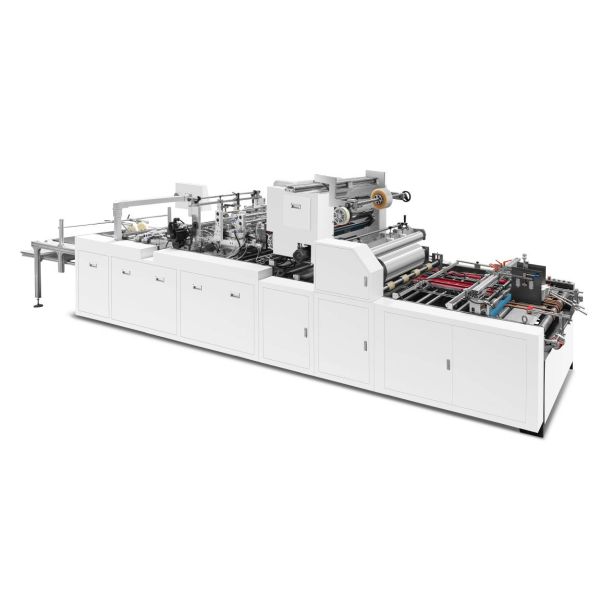

TC-1080A Automatic Window Patching Machine

Features

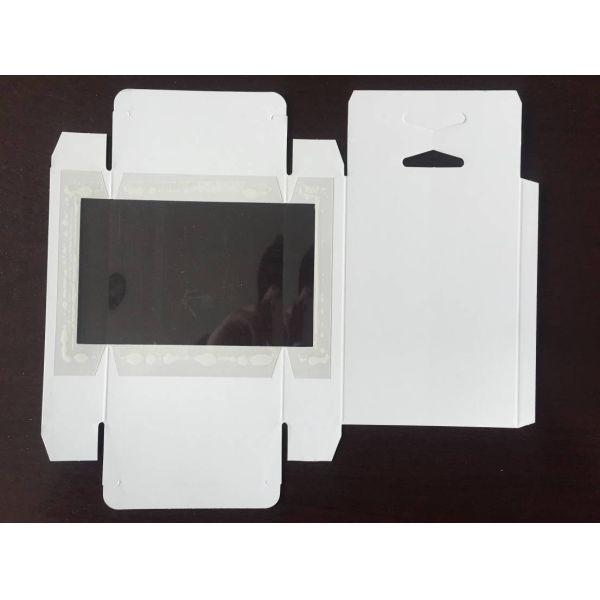

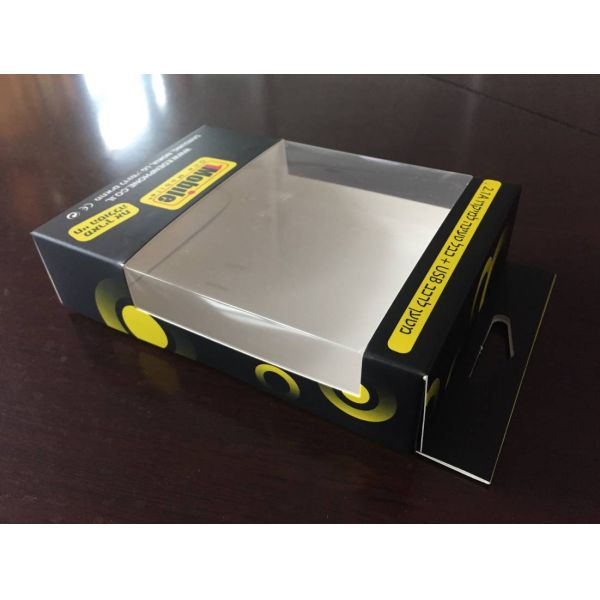

Full automatic window patching machine is used for patching window by film on paper.It can accept PP film,PET film,PVC film and so on.Its max capacity is 17000 pieces for one hour.It can produce tissue boxes,gift boxes,toy boxes,shirt boxes,milk cartons and other window boxes.

Technical Parameters

TC-1080A Automatic Window Patching Machine
Model	TC-1080A
Cardboard Weight	200 ~ 1000 g/m²
Output per Hour	6000 pieces
Size Range of Cardboard	Min. 190 * 150 mm Max. 650 * 1080 mm
Size Range of Window	Min. 50 * 60 mm Max. 380 * 400 mm
Accuracy	± 0.5 mm
Film Thickness	0.10 ~ 0.25 mm
Connected Load	9 kw
Weight	3800 kg
Dimensions	7000 * 1500 * 1600 mm

Configuration

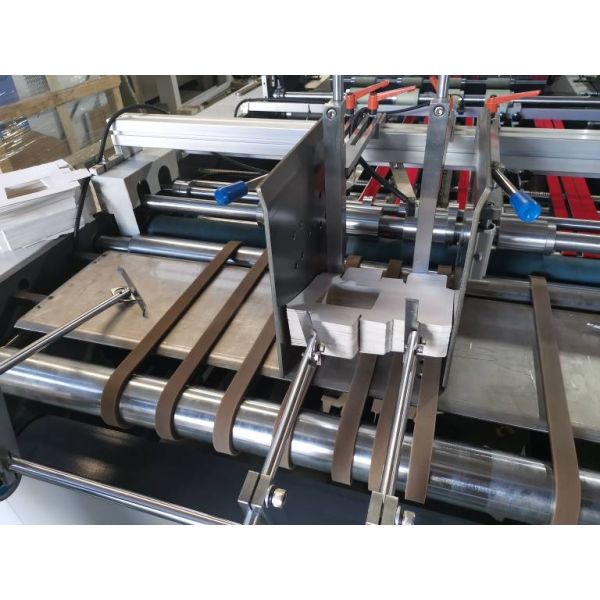

The paper feeder is controlled by servo motor,the belt is from Poland.No-stop feeding paper,no overlapping paper or missing paper.

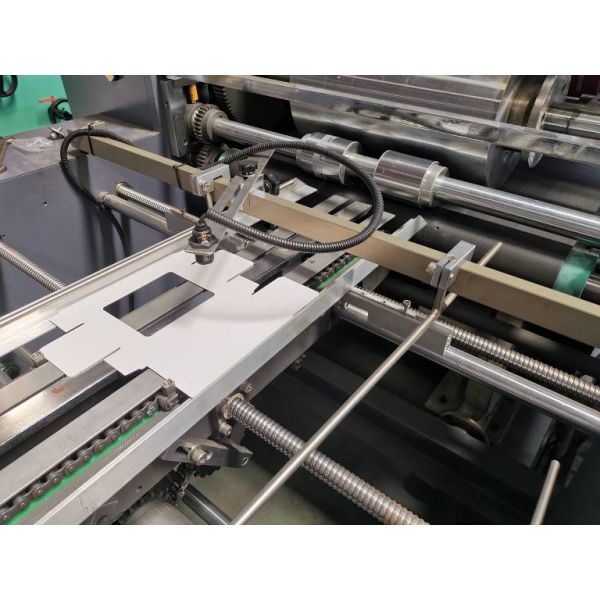

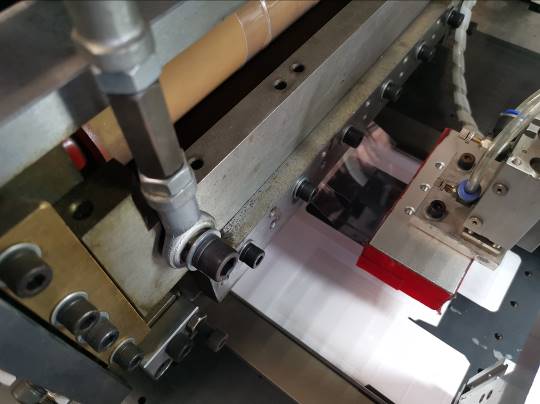

The paper moving system adopt pushing chain and air sucking belt.They have positioning function,insure the paper comes same place in same time.

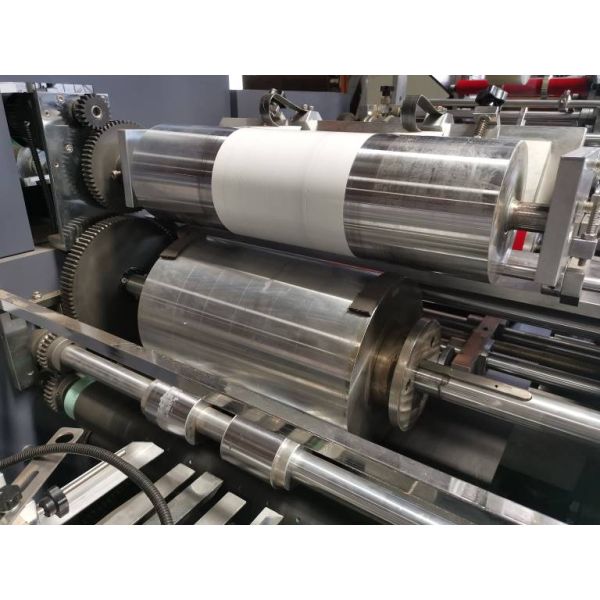

Glue part adopt flexo printing technology.We can adjust the place of glue on the paper without any stop.When missing paper,glue part will up in case of the glue leaves on the air sucking belt.

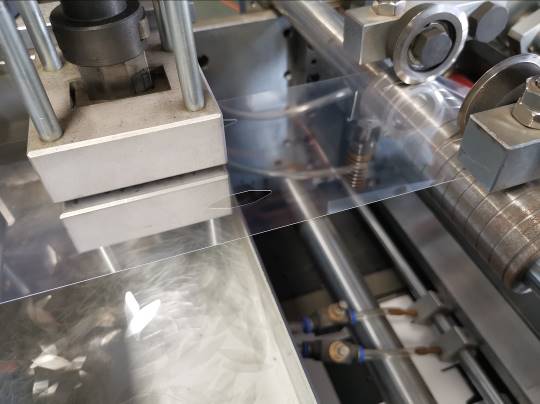

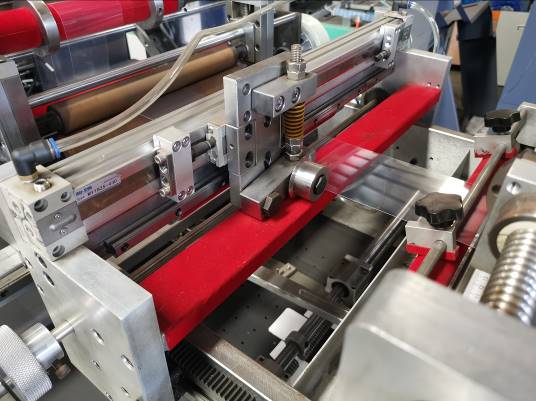

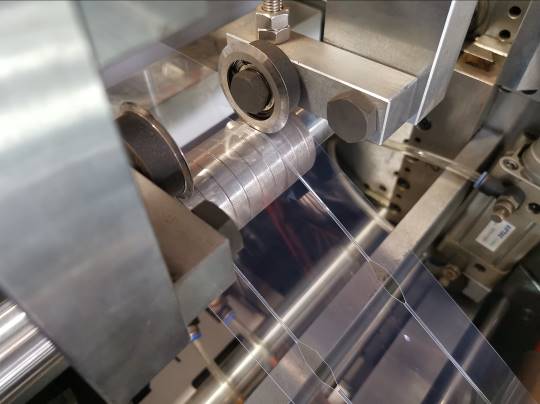

Film cutting part adopt our patented technology and design.The film length is controlled by servo motor in PLC.The place of paper is controlled by cylinder.Because of this set of design,the accuracy is ±0.5mm.There are letter embossing function,heating roller section function,print register camera sensor function for option.

Applications

Punch & crease window patching machine is widely used for patching the window on the liquor box,gift box,cosmetic box,toy box and so on.It has punching and creasing function, special for corner window.It is the best machine for patching corner window.
