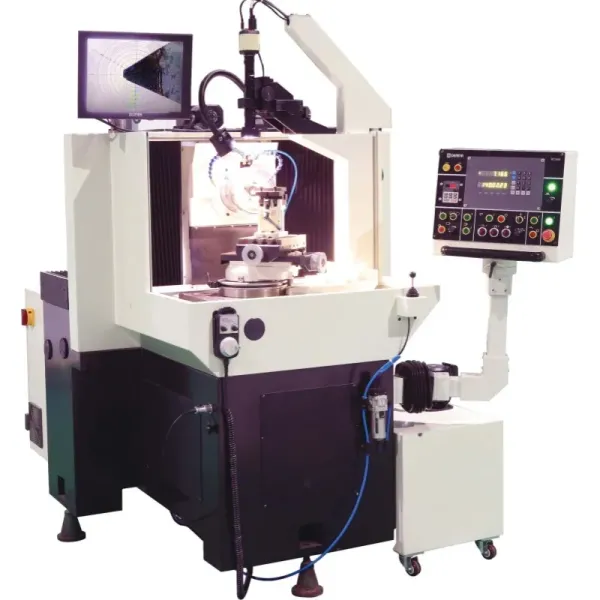

Bt-150h Tool Grinder Grinding Machine for PCD and PCBN Tools

1. Mechanical Structure: The base of machine is made of solid casting with high quality. The main components weight is about 1.6 tons. It can meet grinding requirements of any hard material.

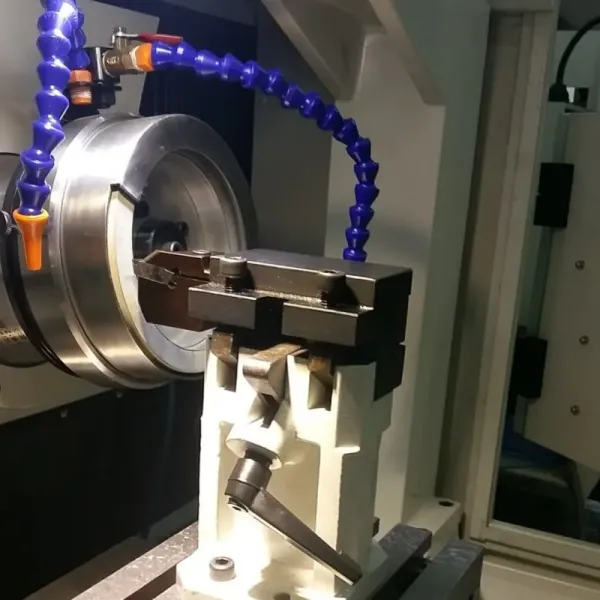

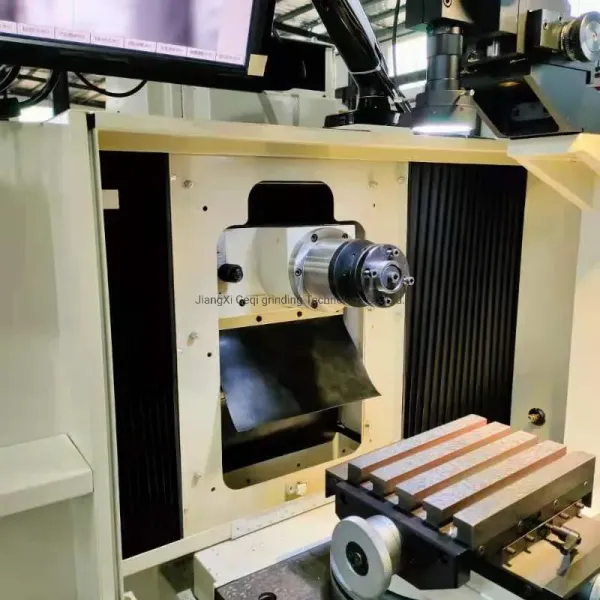

2. Grinding Spindle: With high precision and variable frequency, the direct-drive spindle power is 3 Kw, max speed is 4000 r/min. The inner of spindle is cooled by recycling water. The axial run-out is 0.002 mm and radial run-out is 0.003 mm .
3. The feed slider is driven by constant pressure air, ensuring high production efficiency and good finish on cutting edges.
4. Auxiliary work: pneumatic feeding device can realize fast forward and fast rewind of the grinding wheel, and can save 70% auxiliary operation time.

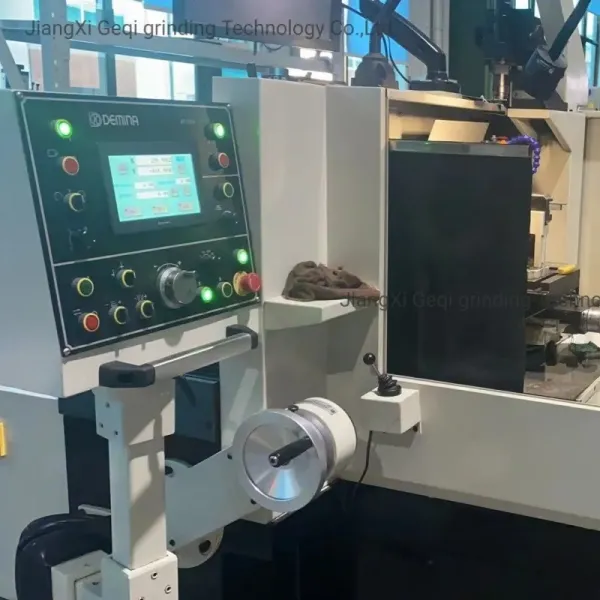

5. Wheel Oscillation: The grinding wheel oscillation is controlled by PLC program and move very smoothly. The swing range is between 0 to 30 mm (The max. swing range can be added to 150 mm according to the customer's requirement.).The grinding wheel is with uniform consumption and timely self-sharpening, to ensure the grinding precision and roughness.

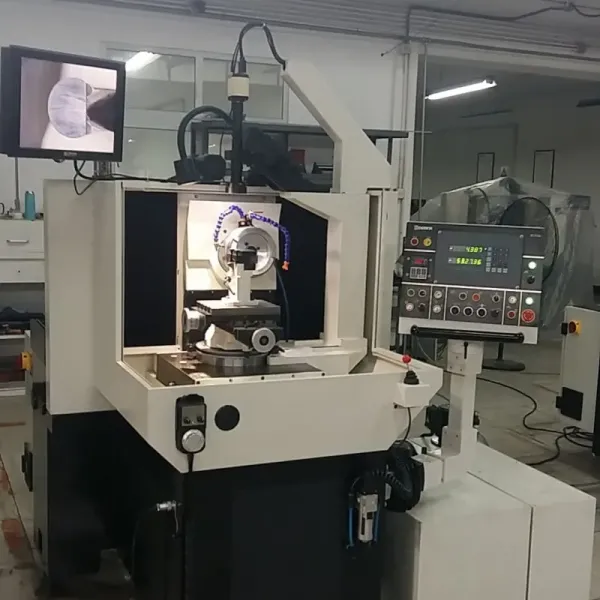

6. Online CCD Measurement: using the optical microscope and CCD camera, the magnification is 25~80 times. The base line for comparison keeps unchanged after calibration. It ensures the measurement accuracy and makes the machine to measure the arc of tool nose accurately.
7. Declination Lock: The grinding spindle declines along the circular guide smoothly and radial lock can be made, greatly enhancing the rigidity of the equipment. After declination, the center line of the grinding wheel keeps the same height due to special mechanical design,so coarse and fine grinding can be made without declination adjustment.

Demina mainly engages in mass production of CNC tool grinding machine and provides tool regrinding service. We have been in the field over 20 years. It is a national high-tech enterprise and a SRDI enterprise in Beijing.

Our company's independently developed BT-150 series PCD tool grinding machine closely combines traditional tool grinding technology with software technology. On the basis of ensuring the accuracy of tool grinding, we have achieved CNC tool grinding technology, greatly improving the work efficiency of tool enterprises and effectively reducing their operating costs.



Q: Are you trading company or manufacture?
A: We are a professional manufacturer. Our products have been exported to Asia, South America, Africa, and have developed a good world wide reputation.

Q: Do you have after sales service?
A: Yes, we have special service team which will offer you professional guidance, or On-site installation in customer Factory.

Q: Do you test all your goods before delivery?
A: Yes, we have strict quality inspection process including a load test for every machine before leaving our factory.
