Batch-Type Vacuum Resistance Furnace for Graphite & Ceramic Sintering

Categories Resistance Furnace
Brand Name: Nuotian
Model Number: NTI-DZL-54W
Certification: CE
Place of Origin: Hunan, China
MOQ: 1 Set
Price: $ 60000-100000
Payment Terms: T/T
Supply Ability: 20 Sets / Month
Delivery Time: 90 Days
Packaging Details: Standard Packing by Sea Shipping
type: Resistance Furnace
Power Control: SCR
video outgoing-inspection: Provided
machinery test report: Provided
core components: PLC
voltage: 380V
dimension(l*w*h): Customization
weight (t): 2
warranty: 1 Year
key selling points: Accurate Temperature Control
Product Name: 2200℃ Resistance Furnace SIC Boron Carbide Heat Treatment Equipment
After-sales Service Provided: Engineers available to service machinery overseas
Maximum temperature: 2300 degree celsius
Model no.: NTI-DZL-54W
Working area: 300x300x600mm
Input voltage: 380v
Working atmosphere: argon protection
Application: Sic sintering
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

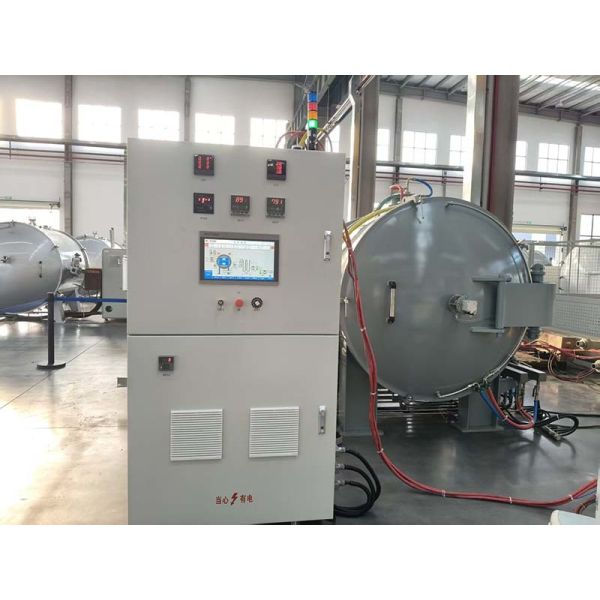

Batch-Type Vacuum Resistance Furnace for Graphite & Ceramic Sintering

Batch-Type Vacuum Resistance Furnace for Graphite & Ceramic Sintering

Description:

  • As a 2200℃ batch resistance furnace, this vacuum equipment ensures high temp uniformity via advanced resistance heating + sealed vacuum environment, delivering stable processing conditions for high-performance materials.
  • Designed for industrial use, its sturdy frame + smart temp control system (precise heating/cooling regulation) guarantees uniform workpiece heating.
  • Adaptable to large/small batches, it supports diverse material processing; its user-friendly interface + safety safeguards (over-temp alert, leak detection) suit lab and industrial scenarios.

Application:

  • Ceramic Materials: Sintering of SiC, boron carbide, polysilicon, magnesium fluoride, and ceramic valves.
  • Carbon & Graphite Materials: Dewax/degrease/debind of PI film, radiation-proof material, graphite, and carbon composites.
  • Hard Alloys & Metals: Processing of tungsten carbide, hard alloy parts, rhenium material, and metal billets.
  • Special Materials: Treatment of rare earth oxide, sapphire, and vanadium carbide powder.


Specification:

Resistance Furnace -- Technology Parameter

Lab usage

Production usage

NTI-DZL-54W

NTI-DZL-98W

NTI-DZL-300w

NTI-DZL-400W

NTI-DZL-720W

Working size

mm

300×300×600

350×350×800

500×500×1200

500×500×1600

600×600×2000

Heating type

/

Resistance heating

Control type

/

SCR control

HT zone capacity

L

54

98

300

400

720

Loading weight

g

HT zone capacity ×density(g/cm³)×1000 Remark:1L=1000cm³

IF power

Kw

100

150

300

400

650

Ultimate vacuum

Pa

20

Max.working

temperature

℃

2300

2300

2300

2300

2300

Usual working

temperature

℃

2200

2200

2200

2200

2200

Temperature

uniformity

℃

±10

±10

±10

±10

±10

Working

environment

/

Vacuum or Ar, Nitrogen atmosphere protection(micro positive pressure)



Furnace Configuration:


  • Control System: Optional 1-to-1 (one control cabinet for one furnace), equipped with Delta PLC for stable, intelligent operation.

Key standard & optional components:

  • Vacuum System: Integrated high-performance vacuum unit (including vacuum pump, valve group) to maintain stable vacuum environment during sintering.
  • Gas Purifier: High-efficiency gas purification equipment (optional) to filter impurities and ensure clean gas supply for atmosphere-controlled processes.
  • Cooling Tower: Optional cooling equipment to achieve efficient heat dissipation, ensuring stable operation of high-temperature components.
  • Temperature Measurement: Equipped with Raytek (US) infrared thermometer for real-time, accurate high-temperature monitoring (supports precise temperature control up to 2200℃).
  • Air Compressor: Optional auxiliary equipment to provide stable air supply for pneumatic components.

Feature Advantages:

  • High-Temperature Capability: Reaches up to 2200℃.
  • Vacuum & Resistance Heating: Vacuum environment prevents material oxidation.
  • Precise Control: Equipped with FP93 Japanese Shimaden High-Precise Temperature Control System, ensuring stable sintering processes and consistent product quality.
  • Versatility: Compatible with a wide range of materials (carbon,ceramics, alloys, c/c,special powders), meeting diverse production needs.
  • Safety & Reliability: Equipped with short circuit, over pressure, over-temperature, over current, water shortage, and other protection mechanisms for safe operation.

After-sales Service:

We provide comprehensive after-sales support to ensure your equipment operates smoothly:
  • Warranty: 1-year warranty for core electrical components against manufacturing defects.
  • Lifetime Service: Lifetime technical support, including remote troubleshooting, maintenance guidance, and replacement part supply (charged for non-warranty parts).
  • Response Efficiency: 24-hour online consultation for urgent issues; on-site service (available globally) can be arranged based on your needs (travel costs extra).
