| Categories | Cement Resistors |
|---|---|
| Brand Name: | TYOHM |
| Model Number: | ROP |
| Place of Origin: | China |
| MOQ: | 1K |
| Price: | Please contact us for details |
| Payment Terms: | T/T |
| Delivery Time: | 7-10 work days |
| Packaging Details: | T/B |
| Supply Ability: | Depending on the specific circumstances, it generally takes 5-7 work days to complete |
| Resistance value: | Please check the attachment |
| Power Rating Load: | Rated voltage for 30 minutes ( Surface temp. 275°C Max ) |
| Short Time Overload: | 10 times(power film : 5 times) of rated wattage for 5 seconds. ( ±2% ) |
| Dielectric Withstanding Voltage: | AC 1000V for 1 minutes ( No evidence of mechanical damage ) |
| Insulation Resistance: | 1,000MΩ ( DC 500V megger ) |
| Terminal Quality: | 1kg ( No evidence of mechanical damage ) |
| Company Info. |
| ASIA AKITA ELECTRONIC TECHNOLOGY(SHENZHEN)CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
1. Standard taping package for automatic insertion and forming
2. Fully automated process with strict quality control ensures uniform quality and consistent reliability
3. Compact, lightweight design saves significant PWB space
4. High dielectric withstanding voltage up to 1KV
5. Flameproof ceramic tube construction with humidity and insulation resistance

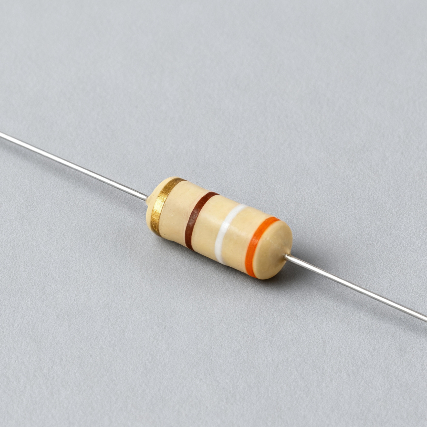

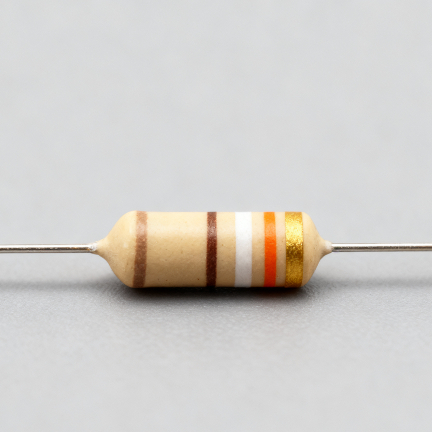

Cylindrical cement resistors are manufactured using advanced, fully automated processes and high-strength ceramic materials as the substrate.
These resistors feature a compact design and small size, with the cylindrical package providing excellent electrical performance and durability.
Standard ribbon packaging facilitates automated insertion and forming, making them widely applicable in circuit systems requiring high reliability and stability.
Their ceramic tube structure offers flame retardancy, moisture resistance, and high-voltage resistance, making them particularly suitable for environments with significant temperature and humidity variations, ensuring long-term stable operation.
| Item | Parameter Description |
|---|---|
| Product Name | Cement Resistor (Cylindrical) |
| Power Range | 1W ～ 5W |
| Resistance Accuracy | ±5% |
| Operating Voltage | 150V ～ 350V |
| Temperature Coefficient | ±300ppm/°C |
| Operating Temperature Range | -55°C ～ +155°C |
| Material | Flame-retardant ceramic tube, metal oxide film |
| Package Type | Cylindrical (Standard Taping Package) |
Compact & Lightweight Design
The cylindrical package structure saves circuit board space, making it particularly suitable for space-constrained applications.
High Dielectric Withstanding Voltage
Withstands voltages up to 1KV, suitable for high-voltage circuits.
Flameproof & High Temperature Resistance
Utilizes a ceramic tube housing, providing flame retardant properties while resisting high temperatures, moisture, and chemical corrosion.
Fully Automated Production
Strict quality control ensures the consistency and reliability of each resistor, widely applicable to precision circuits.
Cement Resistors (Cylindrical) Widely used in:
|
