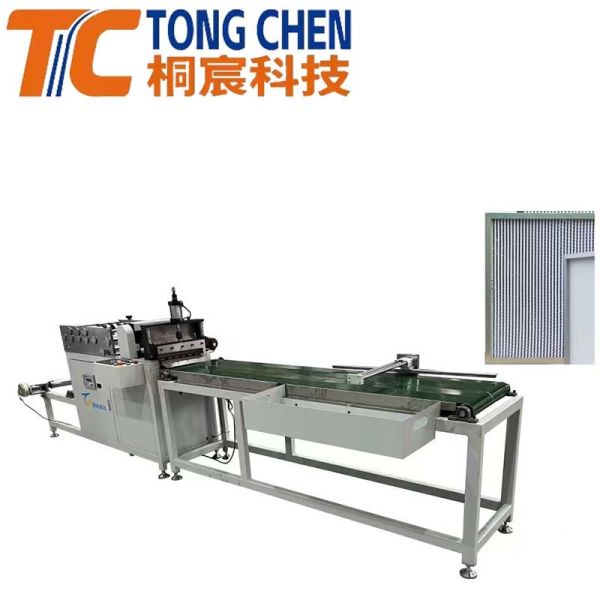

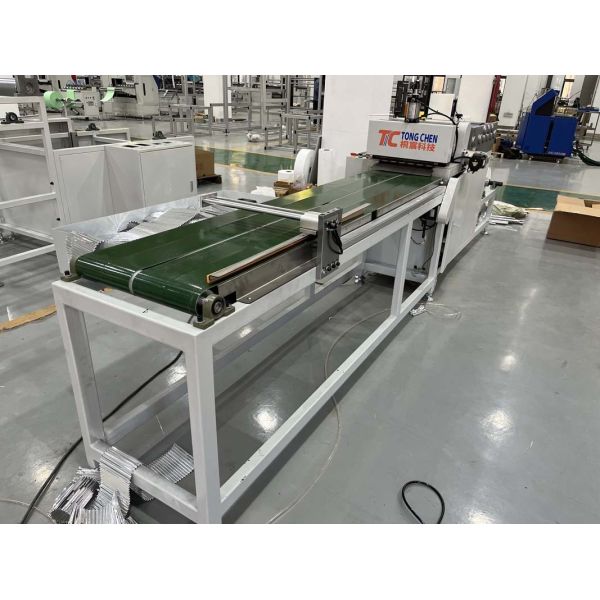

Full-auto Partitioned Filter Aluminum Foil High-Efficiency Pleating
Machine
This high-capacity aluminum pleating machinery is engineered for
high-volume production of aluminum foil and paper separators.
Featuring a precision-painted frame for both accuracy and visual
appeal, the ergonomic design facilitates easy roll replacement,
adjustment, and operation. The fully optimized process encompasses
roll feeding, tension control, flanging, corrugation, sizing,
cutting, and automatic discharge—ensuring maximum efficiency,
superior quality, and minimal operator fatigue.
Technical Specifications
| Parameter | Specification |
|---|
| Material | Aluminum foil (semi-hard, flat) or paper |
| Maximum Roll Diameter | 700 mm |
| Maximum Material Width | 320 mm |
| Material Thickness | 0.04 ± 0.005 mm |
| Corrugated Edge Width After Pressing | 3 mm - 10 mm |
| Corrugation Height | 3 mm - 6 mm (customizable) |
| Sizing Length | Freely adjustable |
| Production Speed (Max) | 0 - 30 sheets/min |
| Power Supply | 380V, 50Hz |
| Compressed Air Requirement | 0.6 m³/min |
| Machine Dimensions (L × W × H) | 3800 × 950 × 1395 mm |
| Motor Configuration | Three-phase motor |
| Mechanical Parts Treatment | Shafts: electroplated hard chrome; Others: decorative nitro-iron
and black treatment |
| Pneumatic Components Brand | Jiahe brand, Harbin bearings |
| Instrument Installation | Reasonable layout, easy to remove |
Key Features
- Unwinding Section: Magnetic powder brake with dedicated motor ensures constant
tension control, keeping aluminum foil straight for smooth
flanging, corrugation, and cutting. Includes air-expandable shaft.
- Inlet Tension Section: Adjustable tension rollers avoid uneven tension, ensuring stable
production.
- Flanging Section: Roller-type flanging continuously flattens and smooths aluminum
foil edges to meet width requirements.
- Corrugation Pressing Section: Replaceable corrugation rollers can be customized for height
requirements; full roller group replacement requires no adjustment.
- Sizing & Cutting Section: Pneumatic knives with induction sizing provide high precision
cutting of corrugated sheets.
- Automatic Discharge Platform: Pneumatic system automatically ejects finished corrugated sheets,
simplifying collection and stacking.
Our Advantages
- High production efficiency (up to 30 sheets/min)
- Fully customizable corrugation height (3-6mm) and sheet length
- Stable production due to tension-controlled feeding
- Ergonomic design improves operator comfort and safety
- Easy maintenance with accessible and replaceable components
- Suitable for both aluminum foil and paper materials
- Painted frame ensures durability and precision alignment
Product Details
Company Profile
About us: Established in 2011, Bengbu Tongchen Automation Technology
Equipment CO.,LTD is a specialized firm that integrates research,
development, manufacturing, marketing and after-sales service for
filtration equipment manufacturing equipment. Our primary product
offerings encompass a range of advanced machinery, including but
not limited to fully automated reciprocating paper folding
production lines, fully automated PP intermittent glue injection
and wave reception production lines, fully automated paper frame
gluing production lines. For more information or to schedule a
demonstration, please contact us. We are committed to providing
tailored solutions that meet the unique needs of our clients.
