High Dynamic Performance MEMS IMU with 1000Hz Output Data Rate and Full Temperature Compensation for Harsh Environments

Introduction

The triaxial MEMS gyroscopes detect angular motion of the carrier, while the triaxial MEMS accelerometers measure linear acceleration. The system incorporates comprehensive temperature compensation for zero bias, scale factor, and inter-axis non-orthogonal errors, with software-adjustable internal low-pass cutoff frequency. These features ensure sustained high measurement accuracy across the full temperature range of -40℃ to 85℃, even under rapid temperature changes (≤1℃/min).

The LKF-HH3001 supports flexible software configurations to meet diverse user requirements. With an output data rate (ODR) of 1000Hz and a measurement delay of only 7ms, it delivers real-time motion data capture, maximizing adaptability to high-dynamic application scenarios.

Main Features

100% domestically sourced components
High performance, compact size, lightweight, low power consumption
Full temperature calibration compensation (-40°C to +85°C)
High-speed sampling
Harsh mechanical environment resistance
Supports firmware online updates

Application

Radar/infrared antenna stabilization platforms
UAV attitude reference/flight path control
Missile flight control
Vehicle/ship attitude measurement
Port measurement systems
Satellite communication on-the-move
Drilling and extraction systems
Mobile mapping systems
Automated driving test systems

Table 1 Performance parameters of LKF-HH3001

Gyroscope
Range(°/s)	±500
Bias(°/h,full temperature)	0.06(1σ)
Bias Stability(°/h,10s smoothing)	≤5
Bias Instability(°/h,allan)	1.5(@25℃, 1σ, IEEE standard)
Bias Repeatability(°/h)	≤15
Non-orthogonality	≤0.02 deg
Angular Random Walk(°/√h)	0.15(@25℃, 1σ)
Scale Factor Nonlinearity(ppm)	≤50
Bandwidth(Hz)	49(internal low-pass cutoff, software adjustable)
Accelerometer
Range(g)	±60~±200
Bias (mg,full temperature)	0.7(1σ)
Bias Stability(mg,10s smoothing)	≤0.06
Bias Repeatability (mg)	≤0.2
Non-orthogonality	≤0.02 deg
Scale Factor Nonlinearity(ppm,1g)	≤50
Static Noise(mg)	0.244(Resolution)
Bandwidth(Hz)	49(internal low-pass cutoff, software adjustable)
Electrical/Mechanical Interface
Power Supply (V)	4.5~5.5(Operating); -0.3~6.5(Absolute Maximum)
Power Consumption (W)	0.11
Update Rate (Hz)	1000Hz (customizable)
Operating Environment
Operating Temperature (°C)	-40～85
Storage Temperature (°C)	-40～85
Vibration (g, RMS)	10(10~2KHz, 3-axis)
Shock (g)	200g/6~8ms(Half-sine waveform, 2 tests)

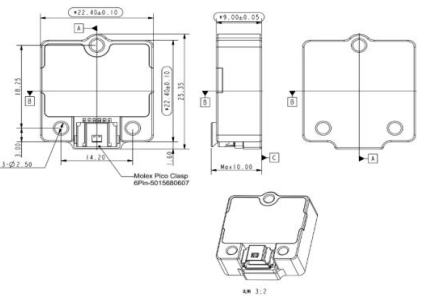

Fig. 1 Dimensions of the external structure
