Cloth 1"X2" Galvanized Welded Wire Mesh Roll

Categories Welded Wire Mesh
Brand Name: Qijie
Model Number: QJ-WM
Certification: SGS
Place of Origin: China
MOQ: 10rolls
Payment Terms: TT
Supply Ability: 1000pcs
Delivery Time: 15-18days
Packaging Details: pallets
Hole Shape: Square,Rectangle
Weightpersheet: Varies Depending On Wire Diameter And Sheet Size
Aperture: 50*75mm Or As Your Demand, 1/4
Standardcompliance: ASTM, ISO, BS Standards
Thickness: 1.3mm
Surface Treatment: PVC Coated
Roll Sizes: 24
Color: Silver, Green, Black (for PVC Coated)
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Cloth 1"X2" Galvanized Welded Wire Mesh Roll

Cloth 1"X2" Galvanized Welded Wire Mesh Roll​

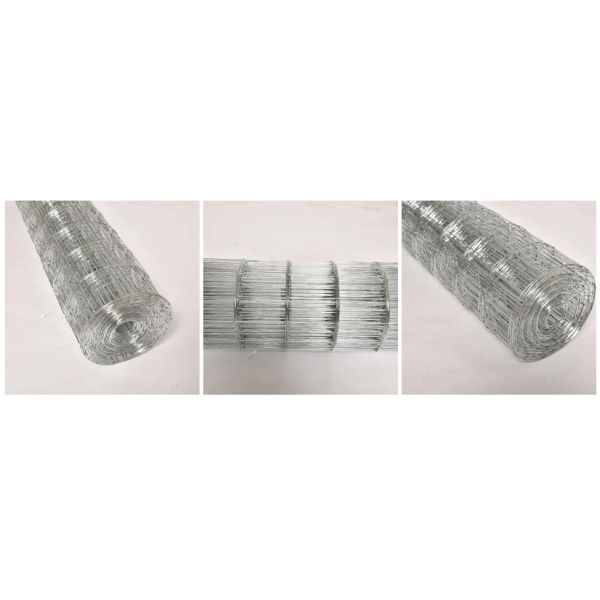

The welded wire mesh features a uniform and sturdy structure, presented in rolls with a metallic silver finish. It consists of interwoven metal wires, typically galvanized steel, forming a grid pattern with consistent square or rectangular openings. The mesh is neatly coiled into cylindrical rolls, making it easy to store, transport, and unroll for use. The wires are welded at each intersection, ensuring a stable and durable construction. The overall appearance is industrial yet precise, with the galvanized coating giving it a shiny, corrosion-resistant look. This design allows it to blend into various applications, from construction sites to agricultural settings, while maintaining a robust and reliable form.
InchMetric UnitWire Diameter
1/4"x1/4"6.4mmx6.4mmBWG24-22Width 0.4-2m

Length 5-50m
electric galvanized before welded,

electric galvanized after welded,

hot-dipped galvanized before welded,

hot-dipped galvanized after welded,

PVC coated,

Stainless steel wire
3/8"x3/8"10.6mmx10.6mmBWG22-19
1/2"x1/2"12.7mmx12.7mmBWG23-16
5/8"x5/8"16mmx16mmBWG21-18
3/4"x3/4"19.1mmx19.1mmBWG21-16
1"x1/2"25.4mmx25.4mmBWG21-16
1-1/2"x1 1/2"38mmx38mmBWG19-14
1"x2"25.4mmx12.7mmBWG16-14
2"x2"50.8mmx50.8mmBWG15-12
2"x4"101.6mmx101.6mmBWG15-12
4"x4"101.6mmx152.4mmBWG15-12
4"x6"101.6mmx152.4mmBWG15-12
6"x6"152.4mmx152.4mmBWG15-12
6"x8"15.4mmx203.2mmBWG14-12
Note:Special specification can be made according to customers requires

welded wire mesh

welded wire mesh

Specification
OpeningWire DiameterWidth 0.4-2m

Length 5-50m
electric galvanized before welded,

electric galvanized after welded,

hot-dipped galvanized before welded,

hot-dipped galvanized after welded,

PVC coated,

Stainless steel wire
InchMetric Unit
1/4"x1/4"6.4mmx6.4mmBWG24-22
3/8"x3/8"10.6mmx10.6mmBWG22-19
1/2"x1/2"12.7mmx12.7mmBWG23-16
5/8"x5/8"16mmx16mmBWG21-18
3/4"x3/4"19.1mmx19.1mmBWG21-16
1"x1/2"25.4mmx25.4mmBWG21-16
1-1/2"x1 1/2"38mmx38mmBWG19-14
1"x2"25.4mmx12.7mmBWG16-14
2"x2"50.8mmx50.8mmBWG15-12
2"x4"101.6mmx101.6mmBWG15-12
4"x4"101.6mmx152.4mmBWG15-12
4"x6"101.6mmx152.4mmBWG15-12
6"x6"152.4mmx152.4mmBWG15-12
6"x8"15.4mmx203.2mmBWG14-12
Note:Special specification can be made according to customers requires
Function
Welded wire mesh serves a multitude of functional purposes across different industries. In construction, it is used as a reinforcing material for concrete, providing structural strength and preventing cracking. In agriculture, it acts as fencing to enclose livestock, keep out pests, or protect crops, thanks to its sturdy grid that resists impacts and pressure. It also functions as a screening material for windows, doors, or vents, offering security and ventilation simultaneously. Additionally, it can be employed in crafting and DIY projects for creating decorative elements or functional structures like storage baskets. The mesh's uniform openings and welded joints ensure it can withstand tension and pressure, making it a versatile solution for both practical and protective applications.

welded wire mesh

Tolerances on Mesh Dimensions
Mesh Dimensions(mm)Tolerance(mm)
< 50±2.0
≥50 to < 200±3.0
Mesh Size and Wire Diameter
Mesh SizeWire Diameter Before & After PVC Coat
mminchBWG No.Before Coated (mm)After Coated (mm)
6.41/424-220.56-0.710.90-1.05
9.53/823-190.64-1.071.00-1.52
12.71/222-160.71-1.651.10-2.20
15.95/821-160.81-1.651.22-2.30
19.13/421-160.81-1.651.24-2.40
25.4 × 12.71 × 1/221-160.81-1.651.24-2.42
25.4121-140.81-2.111.28-2.90
38.11 1/219-141.07-2.111.57-2.92
25.4 × 50.81 × 217-141.47-2.112.00-2.95
50.8216-121.65-2.772.20-3.61
Welded Wire Mesh Roll Size
Mesh InchWidth × Length
1/23 ft. × 50 ft.
1/24 ft. × 50 ft
1/25 ft. × 50 ft.
1/26 ft. × 50 ft.
3/43 ft. × 50 ft
3/44 ft. × 50 ft.
3/45 ft. × 50 ft
3/46 ft. × 50 ft.
13 ft. × 50 ft.
14 ft. × 50 ft.
15 ft. × 50 ft.
16 ft. × 50 ft.
Welded wire Mesh Panels Common Specification
MeshWire Diameter
Expressed in InchesMillimetersDiameterMillimeters
1" × 1"25 mm × 25 mm11 G - 14 G2 mm - 3 mm
2" × 1"50 mm × 25 mm8 G - 14 G2 mm - 4 mm
2" × 2"50 mm × 50 mm8 G - 14 G2 mm - 4 mm
3" × 2"75 mm × 50 mm6 G - 14 G2 mm - 5 mm
3" × 3"75 mm × 75 mm6 G - 14 G2 mm - 5 mm
4" × 2"100 mm × 50 mm4 G - 14 G2 mm - 6 mm
4" × 4"100 mm × 100 mm4 G - 14 G2 mm - 6 mm
5" × 5"125 mm × 125 mm4 G - 14 G2 mm - 6 mm
6" × 6"150 mm × 150 mm4 G - 14 G2 mm - 6 mm
Note: Special specifications can be customized.


welded wire mesh
The Types Of Welded Wire Mesh:
Welded wire mesh is made of high quality low carbon steel wire, PVC coated welded mesh, Galvanized welded mesh devides into hot dipped galvanized and electro galvanized.
Welded wire mesh rolls and Welded wire mesh panels.
The wire of the welded wire mesh is straight or wavy (also called Dutch wire). According to the shape of the mesh surface, it can be divided into: welded mesh sheet and welded mesh roll.Features of Welded Wire Mesh
Easily workable
Solid construction
Extremely versatile
Easy to install
Lightweight
Can have low resistance to wind loads
Easily cut to fit
Available in many styles and materials, such as stainless steel and alumiunum.
Applications:
Welded wire mesh is also called steel wire mesh, welded mesh, construction meh, square mesh, screen mesh.
Welded wire mesh is widely used in agriculture, construction, transportation, mining and other industries. Such as machine protective netting, animal and livestock fences, flower and tree fences, window guards, passage fences, poultry cages, egg baskets and home office food baskets, paper baskets and decorations. Mainly used for general building exterior walls, pouring concrete, high-rise residential buildings, etc. it plays an important structural role in the thermal insulation system.

welded wire mesh
Welded wire mesh fencing
Welded wire mesh backets
• Welded wire mesh architectural grilles
• Welded wire mesh grates
• Welded wire mesh racks
• Welded wire mesh aggregate screening
• Welded wire mesh test sieve cloth
• Welded wire mesh water screens
• Welded wire mesh guard screens
• Welded wire mesh detention and security
• Welded wire mesh machine guarding
welded wire mesh
welded wire mesh
PACKAGE & SHIPPING

Packaging steps:
Each piece put in on carton box, wood case, Plastics Packaging, pallet, etc.
Mode of shipping:
Shipping by air, sea or car.
By sea for batch goods;
Customs specifying freight forwarders or negotiable shipping methods.
