| Categories | Rubber Vulcanizing Press Machine |
|---|---|
| Brand Name: | SFC |
| Certification: | CE, ISO |
| Place of Origin: | Qingdao, China |
| MOQ: | 1 set |
| Price: | US$3,500.00-11,000.0 |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 60set/Month |
| Delivery Time: | 25-35 days |
| Packaging Details: | Safety Wood or Plywood Crates Packing |
| Model Number: | XLB |
| Company Info. |
| Qingdao Shun Cheong Rubber machinery Manufacturing Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
| Customized | Customized |
| Automatic Grade | Automatic |
| Structure | Vertical |
| Frame Form | Column Structure |
| Design | By Our Own Technique |
| Press | Hydraulic Pressure |
| Usage | Vulcanizing |
| Type of General Rubber Machinery | Rubber Product Making Machine |
| Transport Package | No Packing or as The Customer's Request |
| Specification | According to The Customer's Requirements |
| Trademark | SFC |
| Origin | Qingdao, China |
| HS Code | 8477800000 |
| Production Capacity | 50 Sets/Month |
With nearly 20 years of manufacturing experience, our factory specializes in rubber machinery production. We maintain a comprehensive standardized production line including wire peeling machines, rubber cutters, grinding mills, shredders, screen conveyors, rubber crushers, shakers, banburying mixers, open mills, spiral elevators, kneaders, rubber filters, extruders, vulcanizers, refiners, and calendering machines.
Technical Parameters:
| Parameter | XLB-240×240×2 | XLB-350×350×2 | XLB-400×400×2 | XLB-500×500×2 | XLB-600×600×2 | XLB-700×700×2 | XLB-750×850×2 | XLB-900×900×2 |
|---|---|---|---|---|---|---|---|---|
| Total Pressure (MN) | 0.15 | 0.25 | 0.5 | 0.63 | 1.00 | 1.20 | 1.60 | 2.00 |
| Plate Distance (mm) | 125 | 125 | 125 | 125 | 125 | 125 | 200 | 300 |
| Working Layer NO. | 2 | 2 | 2 | 2 | 2-4 | 2 | 2-4 | 2 |
Unit Pressure (Mpa) | 2.60 | 2.04 | 3.13 | 2.52 | 2.77 | 2.45 | 2.51 | 2.47 |
| Plunger Stroke (mm) | 250 | 250 | 250 | 250 | 250/400 | 250 | 400 | 400 |
| Heating Mode | Electricity | Electricity | Electricity/ Stream | Electricity/ Stream | Electricity/ Stream | Stream | Electricity/ Stream | Stream |
| Motor Power (KW) | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 3 | 5.5 |
| Size: (L× W× H)(mm) | 1200×350×1300 | 1400×480×1380 | 1600×500×1480 | 1750×600×1540 | 1880×720×1680 | 2000×850×1750 | 2250×1200×2200 | 1400×900×2400 |

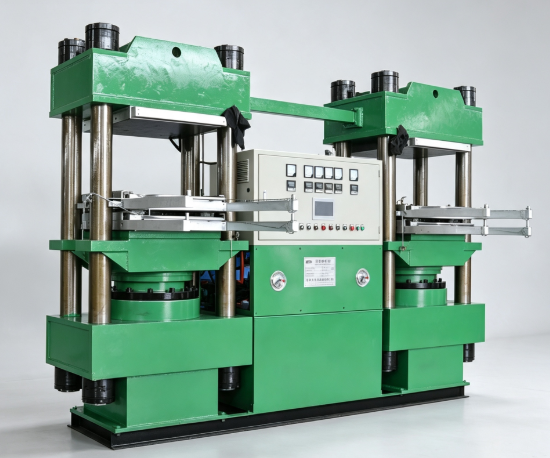

The machine features a frame structure with below pressing form (upwards). Under working hydraulic pressure, the embolism ascends to close the hot plate for pressure application. The embolism descends (hot plate opening) via the deadweight of the hot plate, platform, and embolism, driving working fluid to the fuel reserve tank.
Constructed from nodular cast iron, the oil cylinder offers enhanced compressive strength and wear resistance. Oil-proof rubber seal rings ensure effective sealing during operation.
A combined oil pump serves as the power source, delivering working fluid at specified pressure. Controlled via valve positions, the system enables precise embolism ascent and descent.
Tubular electric-heating components provide clean, boiler-free heating, reducing air pollution and maintaining workshop cleanliness.
Welcome to your inquiry and visiting!
|
