UV Pre-Conditioning Testing Chamber Solar Panel Ultraviolet Damage Sensitivity Testing Equipment Machine UV Pretreatment Tester

Categories PV Module Testing Equipment
Type: Testing Machine
Accuracy Class: Standard Accuracy
Accuracy: Within ±15%
Brand Name: HAIDA
Place of Origin: Guangdong, China
Application: UV Testing, Sensitivity testing
customized support: OEM, ODM
power: AC380V / 50 HZ, Approx. 5 KW
Protection Class: /
Voltage: 380 V
warranty: 1 Year
Irradiance Non-uniformity: Within ±15%
Measurement Uncertainty: Within ±15%
Irradiance Ratio: 280~400nm, 3~10% within the 280nm ~ 320nm wavelength range
Internal Chamber Material: Imported fully reflective silver-coated aluminum plate
External Chamber Material: Aluminum profile frame
Cooling Method: Air Cooling
Control System: PLC + Touch Screen
Effective Irradiation Area: 900 * 900 mm (Can accommodate 9 pieces of 300*300 mm samples)
External dimension: Approx.1620*1120*2000mm(L*W*H)
Power Supply: AC380V / 50 HZ, Approx. 5 KW
MOQ: 1
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

UV Pre-Conditioning Testing Chamber Solar Panel Ultraviolet Damage Sensitivity Testing Equipment Machine UV Pretreatment Tester

Product Description




HD-E802-3

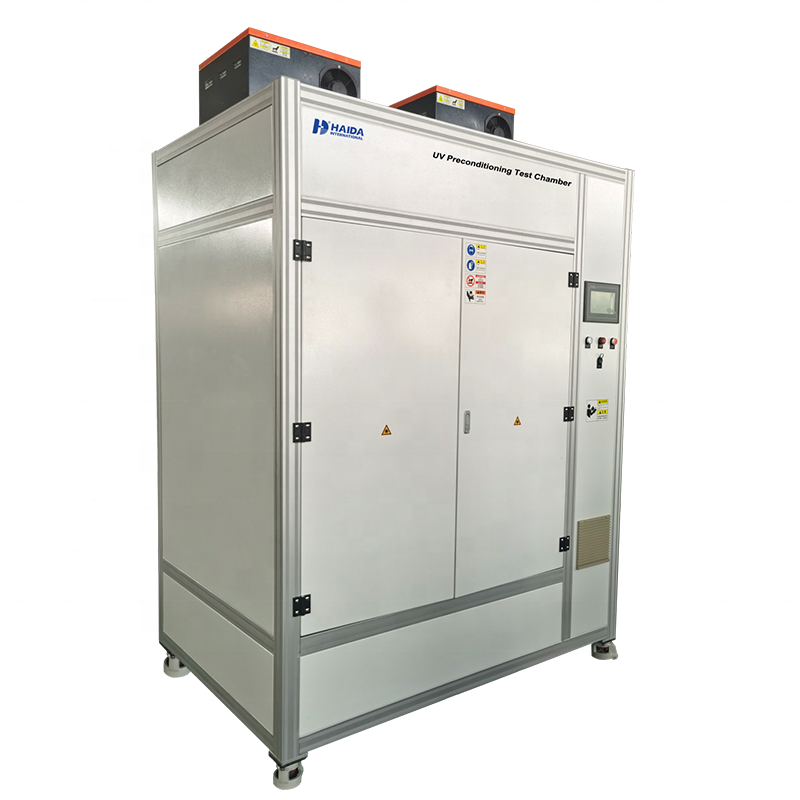

UV Pre-Conditioning Testing Chamber
UV preconditioning test is an irradiance test that determines how susceptible solar panels are to UV deterioration and, as a result, performance loss. This high condition test is frequently performed before the thermal cycle and humidity freeze tests during solar panel certification and research.

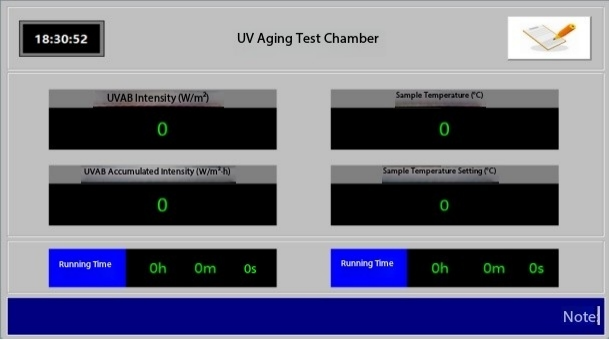

Main Interface

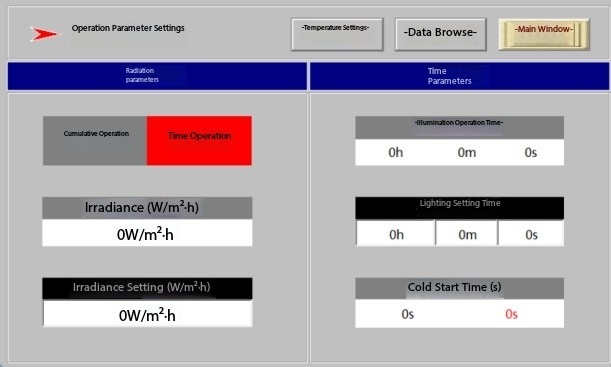

Parameter Settings


Specification
Item
Specification
Effective Irradiation Area
900 * 900 mm (Can accommodate 9 pieces of 300*300 mm samples)
External dimension
Approx.1620*1120*2000mm(L*W*H)
Irradiance Non-uniformity
Within ±15%
Measurement Uncertainty
Within ±15%
Irradiance Ratio
280~400nm, 3~10% within the 280nm ~ 320nm wavelength range
Internal Chamber Material
Imported fully reflective silver-coated aluminum plate
External Chamber Material
Aluminum profile frame
Cooling Method
Air Cooling
Control System
PLC + Touch Screen
Power Supply
AC380V / 50 HZ, Approx. 5 KW
Software Functions
• Real-time monitoring of UV intensity, component temperature, etc.
• System automatically collects and stores data; can export to Excel.
• Display on monitoring screen: Temperature parameters, UV Intensity, Accumulated UV Dose, Running Time, Operation Mode, etc.
• Specific Display Items:
- Ambient Temperature: Temperature inside the chamber.
- Component A Temperature: Temperature at point A of the component.
- Component B Temperature: Temperature at point B of the component.
- UV Accumulated Dose AB: The total accumulated irradiation dose.

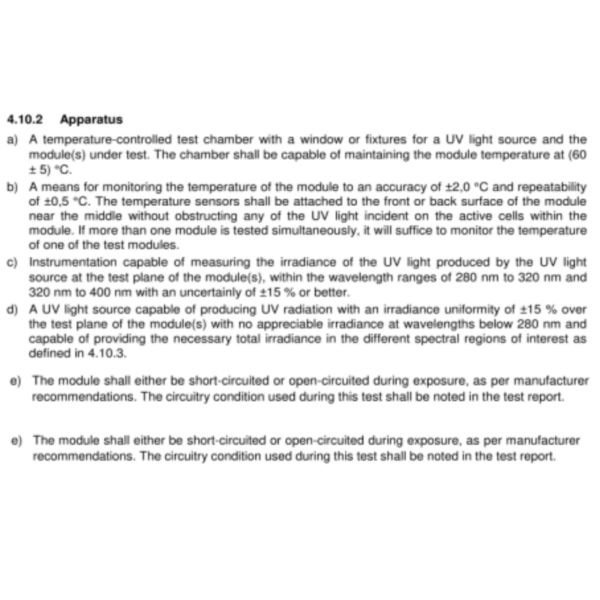

Test Requirements

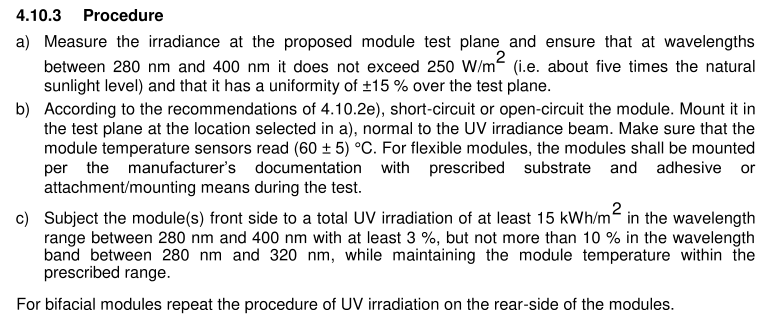

Test Procedures

TEST STANDARD

IEC 61215-2:2021 MQT 10 UV Preconditioning Test
