Universal Tensile Testing Machine for Dummy Pull Test Universal Test Machine

Categories Universal Testing Machine
Maximum Load: 20KN
Brand Name: Zhongli
Model Number: ZL-8001
Certification: CE,ISO
Place of Origin: China
MOQ: 1 set
Price: 5000-8000
Payment Terms: T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability: 100 sets per month
Delivery Time: 20 days after order
Packaging Details: Universal Tensile Testing Machine for Dummy Pull Test Universal Test Machine is packaged within wooden case.
Effective Stretching Space: 400, 500, 600mm, 800mm (can be increased according to customer requirements)
Certificate: CE
Name: Universal Tensile Testing Machine for Dummy Pull Test Universal Test Machine
Warranty period: 2 years
Universal Tensile Testing Machine for Dummy Pull Test Universal Test Machine: Support
Host Weight: 300KG
Brand: ZL
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Universal Tensile Testing Machine for Dummy Pull Test Universal Test Machine

Universal Tensile Testing Machine for Dummy Pull Test
High Precision Universal Testing with maximum load options up to 20KN and accuracy class 0.5, delivering reliable tension, compression, bending, shear, and peeling tests for metals, plastics, rubber, and composites.
Key Performance Features
  • Test speeds from 0.01-500mm/min with effective tensile space up to 800mm (customizable)
  • Displacement accuracy within u00b10.2% with real-time data capture
  • Advanced servo system powered by TECO/high-performance motors and high-precision ball screws
  • Embedded controller supports automatic stress, elongation, and modulus calculation
  • Meets ASTM, ISO, and DIN standards including ASTM D638, ISO527, and ISO178
  • Suitable for quality inspection across automotive, textiles, and building materials industries
  • PC-based curve display, data analysis, and report printing capabilities
  • Expandable with multiple load cells and deformation measurement systems
Advanced Control System Features
High-Performance Processing
  • 32-bit ARM processor with Pentium-level computing performance
  • Superior operation speed and control accuracy compared to traditional 8-bit systems
  • Ultra-high-precision 24-bit AD data acquisition with 2000 samples/second rate
  • 6-point calibration technology for enhanced measurement accuracy
  • Force measurement accuracy better than national 0.5 level standard
Precision Measurement & Control
  • 4-fold frequency displacement encoding technology with 0.0005mm resolution
  • Dual output control modes (pulse and voltage) for servo, variable frequency, or DC motors
  • Advanced speed, displacement, and force three closed-loop technologies
  • Precise arbitrary waveform control capabilities
Comprehensive Interface Expansion
  • Multiple input/output channels: 4*24-bit analog input, 3*16-bit analog output
  • Extensive connectivity: USB, RS232, RS485, parallel and serial printer interfaces
  • High-speed photoelectric isolation technology for strong anti-interference capability
  • Multiple digital I/O channels for comprehensive system integration
Technical Specifications
ModelZL-8001A
Maximum LoadOptional within 100N, 200N, 500N, 1KN, 2KN, 5KN, 10KN, 20KN
Accuracy ClassLevel 0.5
Effective Force Range0.4%uff5e100% (Level 0.5)
Force Measurement AccuracyWithin u00b11% of indicated value / Within u00b10.5% of indicated value
Testing Machine ResolutionMaximum load 1/200000, no division between inside and outside, resolution remains unchanged throughout process
Load CellBasic configuration: one tension and pressure sensor (maximum load)
Extended configuration: multiple sensors can be added
Effective Test Width390mm (can be widened according to customer requirements)
Effective Stretching Space400, 500, 600mm, 800mm (can be increased according to customer requirements)
Test Speed Range0.01uff5e500mm/min
Displacement Measurement AccuracyWithin u00b10.5% of indicated value / Within u00b10.2% of indicated value

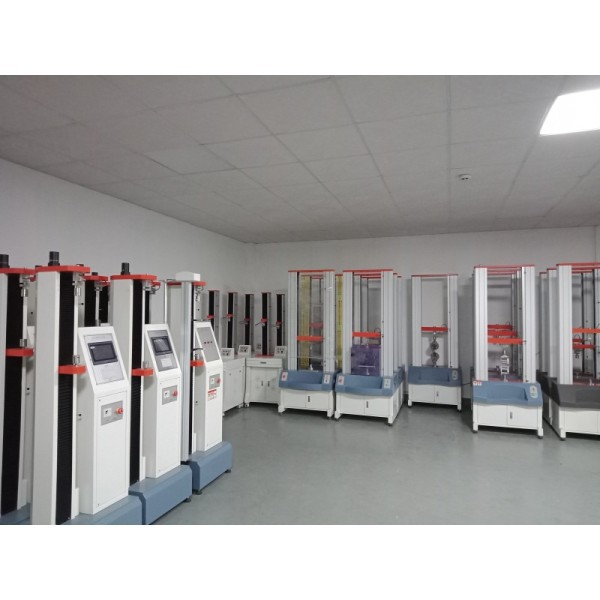

Universal Tensile Testing Machine for material testing applications
