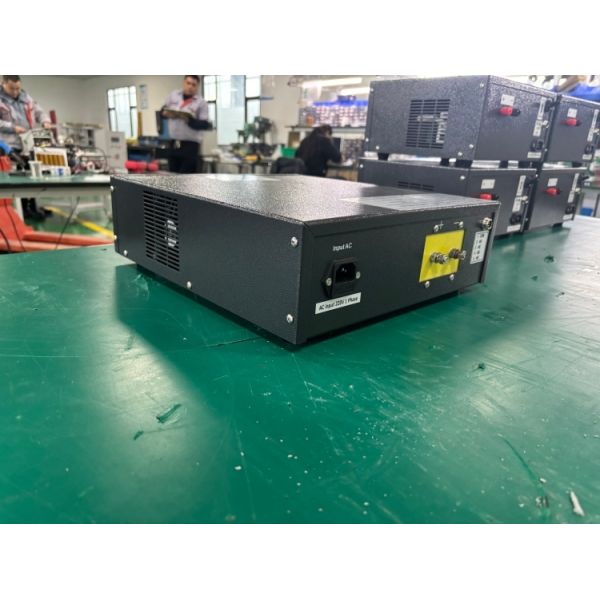

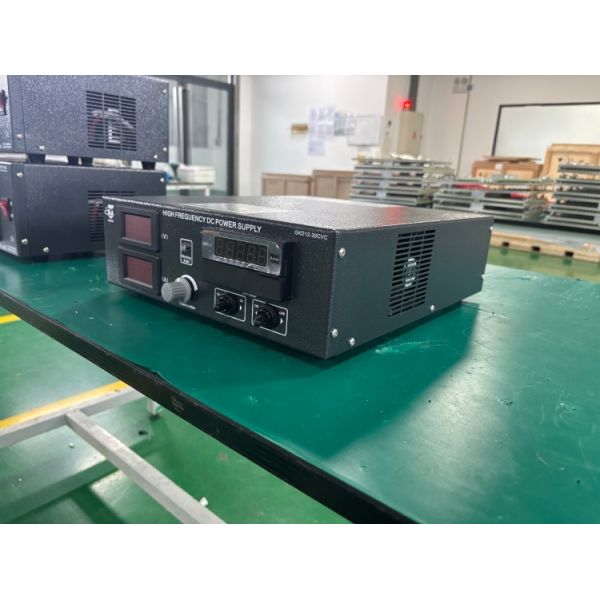

Reliable 12V 30A DC Power Supply for Electroplating with 220V Single Phase Input

This 12V 30A DC power supply is particularly suitable for small and medium-sized coating operations, especially in situations where high current stability is required. It uses 220V ordinary household electricity and is easy to install and use in workshops, laboratories, or production lines.

Its DC output is very stable, with uniform current, which can improve the quality of the plating and achieve a more solid effect. Whether it's copper plating, nickel plating, silver plating, or gold plating, it works smoothly and is suitable for fine surface treatments such as plating on hardware, electronic components, and jewelry.

Both voltage and current can be manually adjusted, allowing operators to flexibly set them according to different plating solution requirements, adapting to a variety of metals and formulas. The machine is compact in size, with stable and reliable performance, making it ideal for laboratory testing, small plating tanks, or pilot production lines. If you value plating quality and need a practical and reliable device, it will be a solid choice.

• Input Power: single-phase 220V AC ±10%, 50/60Hz
• Output Capability:
  • Voltage: DC 0-12V continuously adjustable
  • Current: DC 0-30A continuously adjustable
  • Power: Max.360W (12V *30A)
• Regulation Accuracy: Voltage ±1%, Current ±1%
• Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
• Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
• Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
• Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
• Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
• Operating Temperature: -10℃ to +50℃
• Protection Rating: IP21 (dust and drip-proof)

• Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
• Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
• Compact Design: Space-saving and lightweight, suitable for workshops or labs.
• Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
• High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

• Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
• Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
• Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
• R & D & Education: Electrochemical experiments in universities and research institutes.
•
•
