| Categories | CNC Polishing Machine |
|---|---|
| Model Number: | KS-20250207 |
| key selling points: | Easy To Operate, High Safety Level, Multifunctional, High Rigidity, High-Accuracy |
| MOQ: | 1 |
| Delivery Time: | 2.5 months |
| warranty: | 1 Year |
| Polishing effect: | Mirror Shiny,Matt Finishing,Fine Buffing |
| Price: | 65000-85000 |
| video outgoing-inspection: | Provided |
| Certification: | ce |
| core components: | PLC, Engine, Bearing, Gearbox, Motor, Gear |
| Supply Ability: | 5sets per month |
| steel, ABS plastic After-sales Service Provided: | Engineers,Online support,Video Technical Support |
| Brand Name: | Kingstone |
| Material: | Aluminum, Stainless Steel, Carbon Steel |
| Packaging Details: | wooden cases |
| Optional function: | Dust removal and ventilation system |
| Place of Origin: | China |
| machinery test report: | Provided |
| Payment Terms: | T/T |
| Polishing work piece material: | Copper parts, zinc alloy, aluminum alloy, stainless steel, ABS plastic |
| Company Info. |
| Zhejiang Kingstone Robot & Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
The Machine can simultaneously complete the polishing of 2-8 workpieces at one time with uniform quality. It's suitable for polishing brass/zinc/aluminum faucets, valves, door handles, door locks, pot handles, etc.
Product Details
1)This is a special two-six-axis CNC polishing machine, it has 6 DOF, operation in 2 positions synchronously, flexible and high effective, widely used in the product polishing of sanitary ware, door hardware, auto parts, etc.
2)The control system uses current modern sport control technology, it hes stable performance and high accuracy control
3)Program mode: tech program, uses manual mode to simulate the artificial polishing and record the track, and it can automatically operation according to this path.
4)Automatic compensation function of the polishing wheel: The system can detect the torsion decrease and realize automatic compensation after loss of the polishing buffing.
5)Linear velocity compensation: The system increases rotate speed automatically to compensate the linear velocity when the buffing OD decreases.
6)Spray wax setting; Can set the spray wax time and frequency freely according the product feature
7)All-digital control, the procedure can be saved and be on call at any time
Specifications:
| Item | Parameter |
| Brand | BBC |
| Product Name | Four-six-axis CNC Polishing Machine |
| Place of Origin | Fujian China |
| Condition | New |
| Technology | Metal Polishing |
| Raw Material | Brass Copper Zinc Aluminum Steel Iron Alloy |
| Performance Dimension | 5300*3400*3000 |
| Machine Volltage | 32KW |
| Rated power | 380V |
| Max polishing wheel dimension | 600mm |
| Min polishing wheel dimension | 400mm |
| Weight | 3500KG |
| Application | CNC Processing |
| Polishing Wheel group | 4 |
| X Axis Travel | 900 |
| Y Axis Travel | 825 |
| Z Axis Travel | 700 |
| U Axis Travel | ±90° |
| V Axis Travel | ±360°(positive inversion) |
| W Axis Travel | ±360°(positive inversion) |

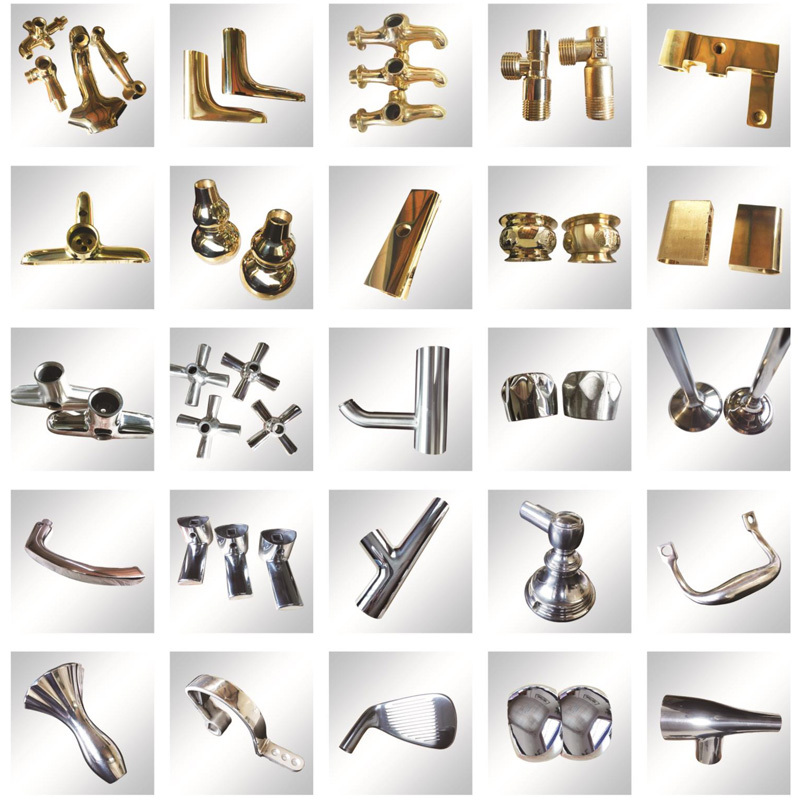

Sample Display
FAQ
1st Q.How can I choose the most suitable machines ?
A: Please tell me your specifications,we can choose the best model
for you,or you can choose the exact model. You can also send us the
products drawing,we will choose the most suitable machines for you.
2nd Q. How can we guarantee quality?
A: Always a pre-production sample before mass production; Always
final Inspection before shipment.
3rd Q.what's the MOQ?
a:1 set.
4th Q: How to operate and maintain the machine?
A : First, we will provide a professional and detailed USER GUIDE
to you with the machine; Second, we will debug the machine in the
best status for you;
At last, we also provide abroad technical training service.
5th Q :What’s dimension of your workpiece ?
A : In order to configure suitable size machine for you. we should
get your info. We can professionally design as your requirement.
|
