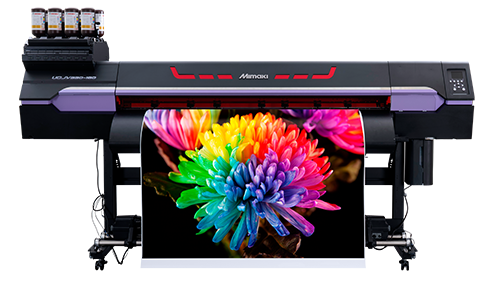

"UCJV330 Series" is a Print & Cut UV-LED inkjet printer that combines the high productivity and high image quality of our flagship "330 Series" with our UV printing technology to significantly improve productivity and image quality compared to previous models.
| UCJV330-130 | UCJV330-160 | ||
|---|---|---|---|
| Print head | On-demand piezo head (2 staggered layout) | ||
| Print resolution | Y: 600, 1200 dpi X: 600, 1200, 1800 dpi | ||
| Print gap | By manual 3 levels (2.0/2.5/3.0 mm) | ||
| Ink | Type/Color | LUS-170:C,M,Y,K,Lc,Lm,W,Cl LUS-175:C,M,Y,K,Lc,Lm,W,Cl *1 LUS-200:C,M,Y,K,W LUS-190:C,M,Y,K,W *1 LUS-210:C,M,Y,K,W *1 | |
| Capacity | 1L bottle | ||
| Ink circulation | Circulation in damper MCTv2 | ||
| Maximum print width | 1,360mm (53.5") | 1,610mm (63.4") | |
| Media | Maximum width | 1,370mm (53.9") | 1,620mm (63.8") |
| Thickness | 1 mm or lower | ||
| Roll diameter | φ250 mm or less | ||
| Mountable no. | Standard : 1 roll / Option : 3 rolls (with the Media changer) | ||
| Roll weight | One roll:Max. 45 kg (99.2 lb) or less Three rolls:Total 90 kg (198.4 lb) or less | ||
| Core diameter | 2 inch / 3 inch | ||
| Media cutting | Auto cutting by cutter of head unit *2 | ||
| Cutting function | Cutting speed | Max. 300 mm/s | |
| Acceleration | Max. 0.5G | ||
| Cutting pressure | 10 - 450 gf | ||
| Cutter response times | 10 times/sec | ||
| Repeatability | ±0.2 mm (Excluding shrinkage / expansion caused by the film temperature) | ||
| Interface | Ethernet 1000 BASE-T (Recommended) / USB2.0 Hi-speed | ||
| Certifications | VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, Energy Star, RCM, KC, UKCA | ||
| Power supply | Single phase AC100-120V±10% /12A or Single phase AC200-240V±10% /6A 50/60Hz±1Hz | ||
| Power consumption | Max.1,440W or less *1 / 800W (Continuous operation) / 4.5W or less (Sleep mode) | ||
| Operational environment | Temperature: 20–30 °C (68–86 °F) Humidity: 35–65% Rh (Non condensing) Recommended temperature: 20–25 °C (68–77 °F) Dust level: General office level | ||
| Dimensions (W x D x H) | 2,640 x 800 x 1,480mm (103.9 x 31.5 x 58.3") | 2,890 x 800 x 1,480mm (113.8 x 31.5 x 58.3") | |
| Machine weight | 217kg (478.4 lb) | 227kg (500.4 lb) | |
Quality Assurance: We ensure that our products meet the highest performance and quality standards.
Customer Support: Our professional customer support team is always ready to answer any questions or resolve any issues and guide you in selecting and using the inks.
Price Advantage: All our products, including Mimaki inks, are offered at highly competitive prices, ensuring you get value for your investment.
Fast and Reliable Delivery: To ensure timely delivery for both urgent projects and everyday use, we offer fast and reliable delivery for all orders.
What is the main product you produce?
We have over 20 years of experience supplying printers. Our main products include Eco-solvent printer, Dye-sublimation printer, UV flatbed printer, UV roll-to-roll printer, DTF printer, Laminator, Laser Cutter, CNC cutter, Cutting plotter and Heat press.
Does printers 100% original and brand new?
Roll-to-roll printer with
Of course! All machines are 100% original and brand new here.
What's the warranty of printer?
Each machines has a warranty period of up to 1 years.
What are the payment methods?
We accept T/T transfers, payments, and PayPal to ensure your payments are safe, reliable, and convenient.
What is the purchase process, and how are transportation arrangements handled?
We will proceed with shipment by sea, express, etc. upon receipt of your (partial) payment.
When will the product be delivered?
We will deliver within 5-10 workdays after full payment is received.
Are your online services available 24/7?
Yes. We provide dedicated one-on-one service and guarantee a response within two hours to ensure an exceptional customer experience.
|
