LED transparent display-P2.9 P3.91 P7.82 P10.4 P20 P25 P31.25 P40 with high transparency

FEATURES

1. High Transparency
Transparency of our T1 series transparent LED display is up to 52% or even 82%. Outdoor transparent LED screen is available, which has IP65 level of waterproof and dustproof. The pixel pitch is P3.9.
2. High Brightness & Economical and Eco-friendly
Its brightness is up to 5000nits or even higher.
3. Light and Slim
80mm cabinet thickness and 4.3kgs weight. Standard cabinet design 1000mm*500mm brings easier installation. The customized design is also available.
4. Modular Design
The modular power box and PCB make repair easy and replacement of spare parts cost-effective.
5. Fast and Easy Installation
Our transparent LED display comes with a wide range of accessories; connection locks, transport flight cases and hanging options.
6. Flexibility
Units may be multi-angle folded to satisfy creative HD design.
7. Application Fields
Museums, Shopping malls and Exhibition events.



High transparent effect
With high transparency rate of 60%-95%, ensure the lighting requirements and angle between floors, glass windows, facade lighting structure.



No steel structure required, saving significant installation and maintenance costs; directly fixed to the glass curtain wall.


Space-saving and lightweight, with a motherboard thickness of 6cm and a display screen weight of 6kg/㎡.

Multifunctional splicing: The product supports internal and external right-angle splicing, staggered splicing, and curved splicing to meet your creative display needs.


The unique display effect, due to its transparent background, makes the advertising images appear to float on the glass curtain wall, resulting in excellent advertising and artistic effects.

Transparent LED Display – Key Advantages

Transparent LED displays are redefining visual communication—delivering stunning digital content while maintaining clear visibility through the screen. Here’s why they are the future of retail, events, and architectural display:

1. Ultra-High Transparency – See-Through, Not Blocked

Unlike traditional opaque LED screens that block the view, transparent LED displays allow natural light to pass through and preserve visibility of the space behind. With transparency rates ranging from 52% to 82% (and up to 90%+ in advanced models), they maintain store openness, showcase merchandise behind the glass, and keep architectural aesthetics intact.

• Retail windows: Customers can see products inside while viewing dynamic digital content

• Glass curtain walls: Preserves natural daylight and exterior views

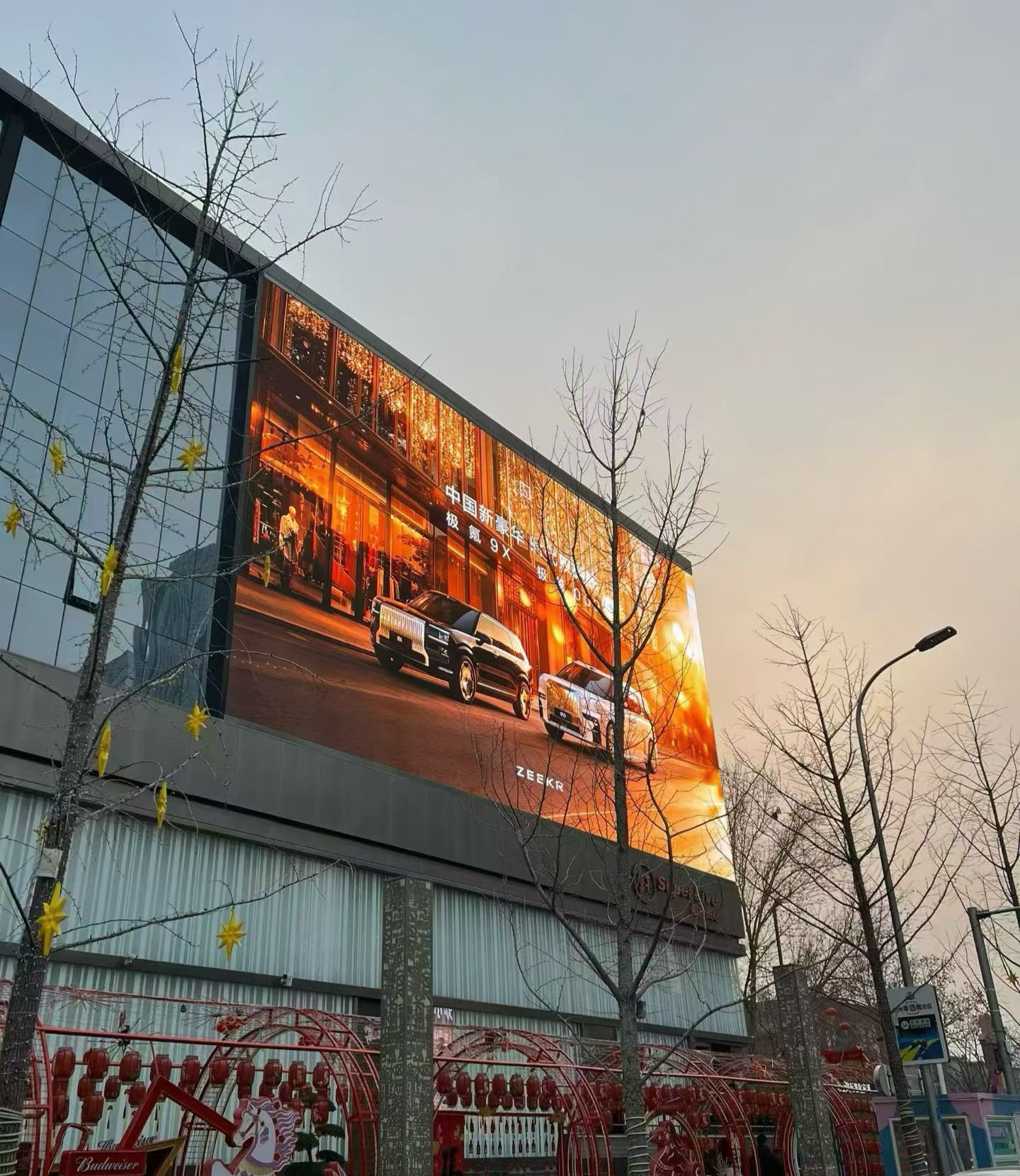

• Building façades: Transforms glass into vibrant digital canvases without compromising architecture

2. High Brightness – Vivid, Even in Sunlight

With brightness levels up to 5,000 nits or higher, transparent LED displays deliver crisp, vibrant visuals even under direct sunlight or bright indoor lighting.

• Daylight-visible: Perfect for storefronts, glass façades, and outdoor installations

• Dynamic content: Play promotional videos, brand campaigns, animations, and even naked-eye 3D content

• Flicker-free performance: High refresh rate (up to 3840Hz) ensures smooth, broadcast-quality video

3. Lightweight & Ultra-Slim – Easy Installation, Low Load

The innovative strip manufacturing process and hollow structural design significantly reduce weight and thickness. With cabinet thickness as slim as 80mm and weight as low as 4.3kg per cabinet, transparent LED displays are exceptionally easy to handle.

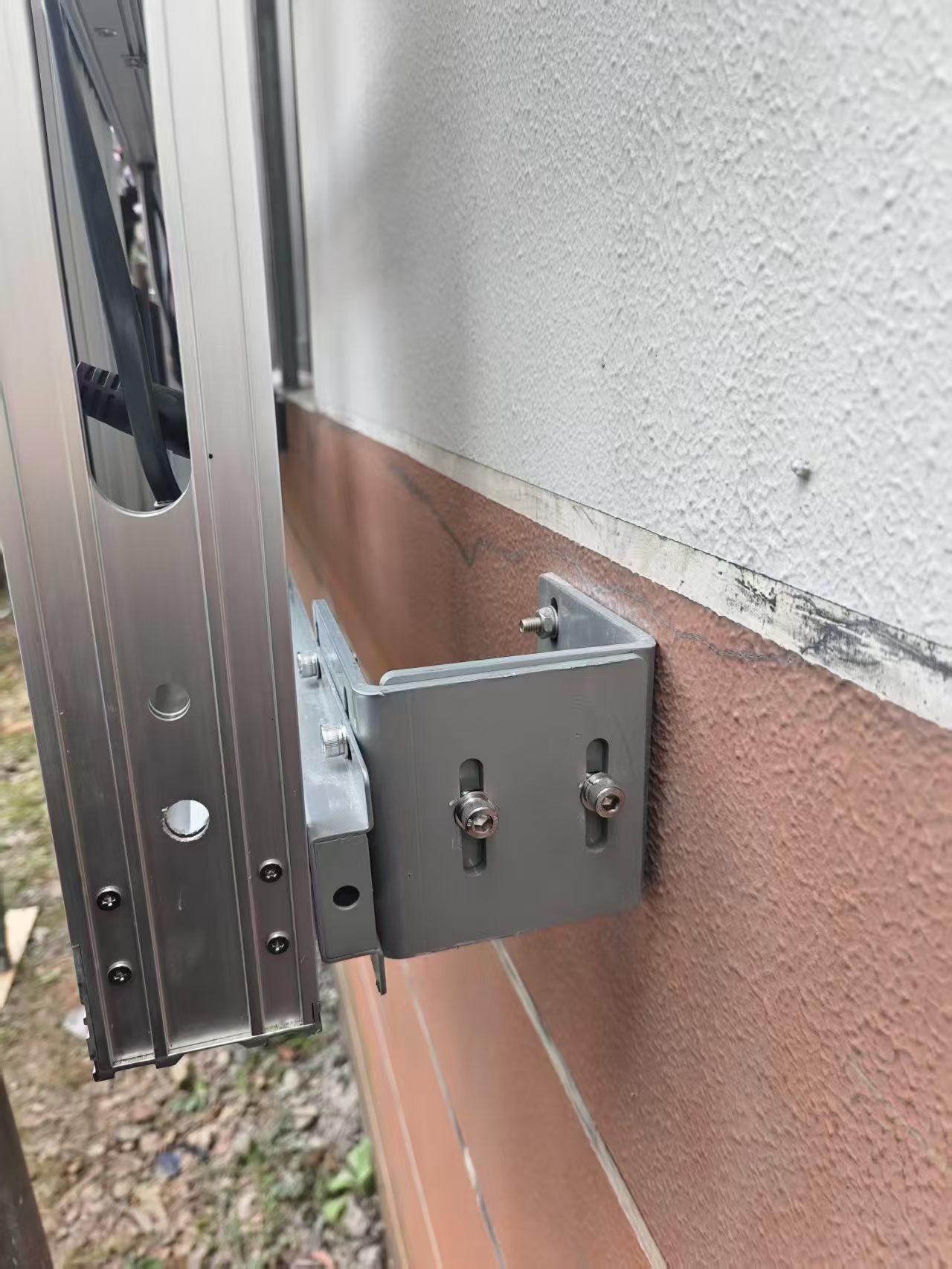

• No heavy steel structures required: Installs directly on glass surfaces or suspended frames

• Reduces structural load: Perfect for glass curtain walls and building façades

• Saves installation time: Quick setup with minimal labor

4. Energy-Efficient & Low Maintenance

Modern transparent LED displays are designed to consume less power while delivering superior visual performance.

• Low power consumption: Reduces operational costs and carbon footprint

• Modular design: Individual power boxes and PCBs can be repaired or replaced independently, making maintenance simple and cost-effective—single points of failure do not affect overall operation

• Long lifespan: Durable components ensure years of reliable service

5. Fast & Easy Installation – Plug-and-Play

Comes with a complete set of accessories—connection locks, transport flight cases, and hanging options—for quick, hassle-free setup. Many models can be installed in under 30 minutes.

• No complex tools required: Ready to install out of the box

• Flexible mounting options: Glue installation on glass, free-standing, or hanging

• Remote content management: Update content across multiple locations instantly via cloud-based platforms—no manual poster changes needed

6. Flexible & Creative – Multi-Angle Folding

Units can be folded at multiple angles to satisfy creative HD designs—perfect for curved glass, special-shaped installations, and immersive stage backdrops.

• Stage design: Creates floating 3D effects and multidimensional performance spaces

• Creative retail: Dynamic window storytelling that adapts to any space

• Exhibitions & events: Transforms booth partitions into captivating visual experiences

7. Versatile Applications

Transparent LED displays excel across a wide range of scenarios:

Factory Strength – Why Choose Us

1. Advanced Manufacturing Capabilities

As a professional LED display manufacturer, we operate a modern production facility equipped with industry-leading machinery. Our factory features fully automated SMT assembly lines with high-precision placement equipment for LED module mounting and soldering, ensuring exceptional production efficiency and product consistency. From electronic processing, automated SMT production, gluing, and spraying, to assembly, debugging, and aging testing – we maintain a complete LED display production chain, ensuring every screen is manufactured under strict process standards.

With our efficient manufacturing processes and large-scale production capacity, we achieve a monthly output of over 1 million LED modules and an annual production capacity exceeding 1 million square meters of LED display products. This scale enables us to meet high-volume procurement demands and fast delivery requirements for clients worldwide.

2. Rigorous Quality Control System

Quality is our lifeline. We are ISO9001:2008 certified and implement standardized management across every stage of our operations. From raw material procurement and incoming quality assurance (IQA) to in-process quality control (IPQC) and outgoing quality assurance (OQA), every step strictly follows international quality control procedures.

Our comprehensive quality management system includes:

• 128 full-chain quality inspection processes – ensuring every screen is fully traceable from raw materials to finished products
• 72-hour continuous aging testing – each module undergoes extended burn-in to verify long-term stability and reliability
• 48-hour full-screen aging testing – every completed display is assembled and tested as a complete system before shipment
• Zero-dead-pixel guarantee – every module leaving our factory is guaranteed to have zero dead pixels

Our products have passed rigorous testing by professional certification bodies and hold RoHS, CCC, CE, FCC, ETL, and UL certifications. They have successfully passed IP67 dust and waterproof testing, anti-glare testing, electromagnetic compatibility testing, high and low temperature testing, and heavy metal content testing – ensuring full compliance with global market standards.

3. Strong R&D & Technical Expertise

We maintain an experienced R&D team dedicated to structural design, circuit optimization, and process innovation in LED display technology. Our company has accumulated deep technical expertise in die-cast aluminum/magnesium alloy cabinets, COB encapsulation, transparent displays, flexible screens, and creative display solutions.

Key proprietary technologies:

• Current-Sharing Backup Power System – our industry-first innovation that enables seamless power failover through adjacent cabinets, ensuring zero blackout during live events
• Bump-Pattern Mask Design – combined with screw and snap-fit technology to prevent LED surface scratches and protect against impact damage
• Spring-Loaded Snap-Lock System – enables true single-person, tool-free installation in seconds
• Platform Cabinet Design – the same cabinet supports multiple pixel pitches and can be reused for both indoor and outdoor applications, significantly reducing inventory costs
• Integrated Arc-Lock Mechanism – supports curved splicing with an adjustment range of -7.5° to +10°

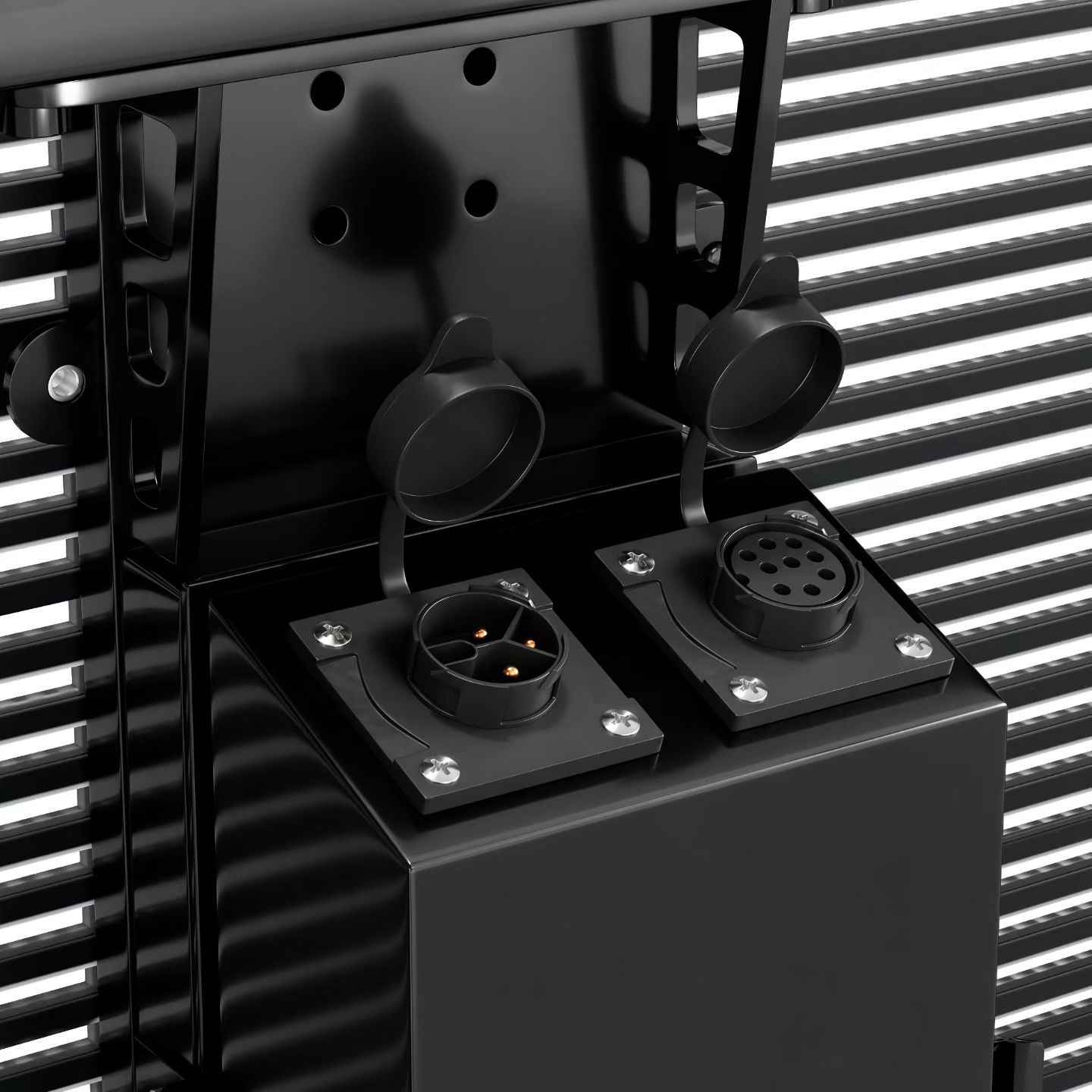

• Flexible Signal/Aviation Plug Configurations – offering both aviation plug and bottom signal cable options to suit different installation needs and budgets
• Pop-Out Corner Protectors – protecting cabinet edges and LED lamps during handling and transportation

4. Global Service Network

Our products are exported to over 130 countries and regions worldwide, including Europe, North America, South America, Southeast Asia, and the Middle East. With reliable quality, professional service, and competitive pricing, we have earned the long-term trust of clients across the globe.

Our after-sales commitment:

• 2-3 year standard warranty (extendable to 5 years upon request)
• Lifetime free remote technical support via WhatsApp, email, and video call
• Comprehensive installation tutorial videos for easy setup
• RMA repair service – defective parts can be returned to our factory for repair
• On-site engineer service available for large-scale projects (travel costs to be covered by the client)

5. Strategic Location – Shenzhen, the Global LED Industry Hub

Our factory is located in Shenzhen, China – the world's R&D and manufacturing center for the LED display industry. This strategic location provides us with:

• Complete supply chain access – sourcing high-quality components at competitive costs
• Rapid response capabilities – quick turnaround on custom orders and urgent requirements
• Industry-leading talent pool – access to the best technical expertise in the field
• Cutting-edge market intelligence – staying ahead of the latest industry trends and technologies

Core Strength at a Glance
