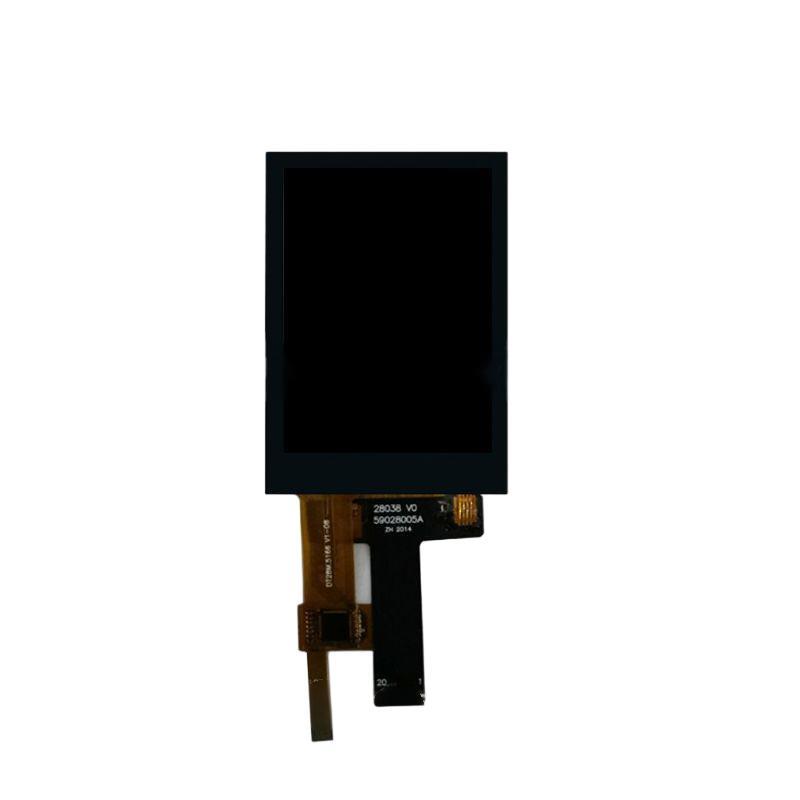

2.8-inch 240*320 Resolution TFT LCD Display Module with Capacitive Touch Screen

1. Module Name: 2.8‑inch 240*320, JD9852, MIPI Interface, Full‑Color TFT LCD Display Module with Capacitive Touch Screen
2. Model:
3. Similar Models:
4. Compatible Models:
5. Display Mode: TFT
6. Display Colors: 65K/262K
7. Resolution: 240*320
8. Dot Pitch: 0.18 (H) x 0.18(V)
9. Viewing Angle: ALL
10. Controller IC: JD9852
11. Display Type: Full Transmissive, Normally Black
12. Outline Dimension: 50.50(H)*69.70(V)*4.35mm
13. Viewing Area: 44.80(H)*60.25(V)mm
14. Dot‑Matrix Area: 43.20(H)*57.60(V)mm
15. Brightness: 610 cd/m²
16. Contrast Ratio: 800
17. Interface Type: MIPI Interface, 1‑LANE MIPI
18. Pin Count: 20
19. Pin Pitch: 0.5mm
20. Connection Type: Plug‑in Type
21. Operating Voltage: 3.3V
22. Backlight Color & Type: White LED Backlight
23. Backlight Circuit: 6 LEDs in Series,
If=20mA, Vf =19.2V
24. Service Life: 50000h
Capacitive Touch Screen Parameters:
25. Operating Principle: Projected Capacitive
26. Light Transmittance: ≥86%
27. Haze Value: ≤3%
28. Hardness: ≥6H
29. Channel Count: 16TX + 25RX
30. Simultaneous Touch Points: 5 Points
31. Structure: G+G
32. Outline Dimension: 50.50*69.70*1.72mm
33. Viewing Area: 43.80*58.20 mm
34. Driver IC: FT5436
35. Interface: IIC
36. Connection Type: Plug‑in Type
37. Pin Count: 8pin
38. Pin Pitch: 0.5mm
39. Supported Systems: Linux, Android
40. Operating Voltage: DC3.3V
41. Operating Temperature: -20 -- 70°C
42. Storage Temperature: -30 -- 80°C
43. Product Certification: RoHS
44. Quality System Certification: ISO9001,ISO13485,IATF16949
