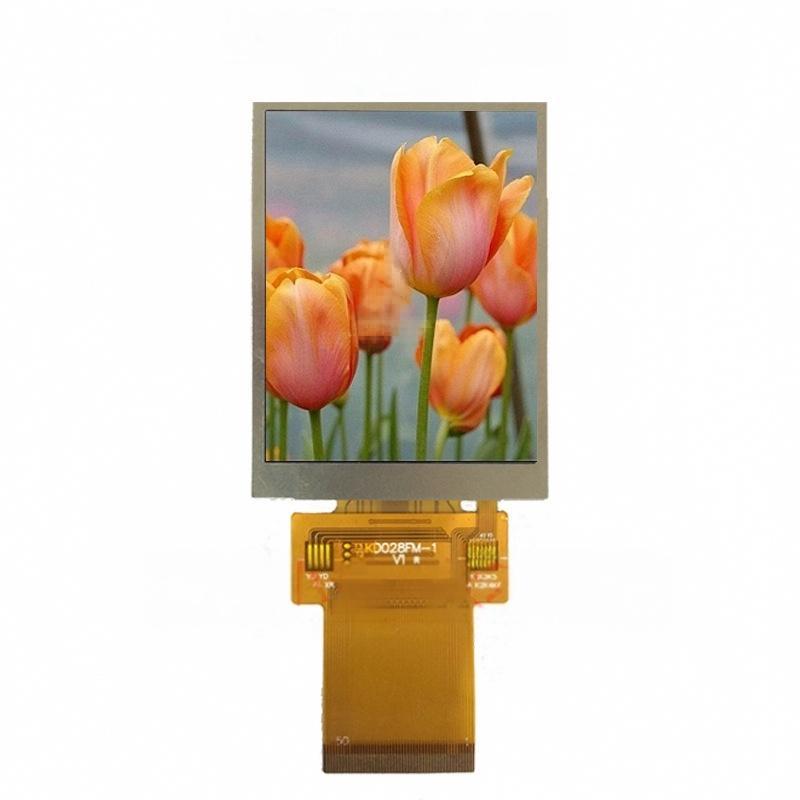

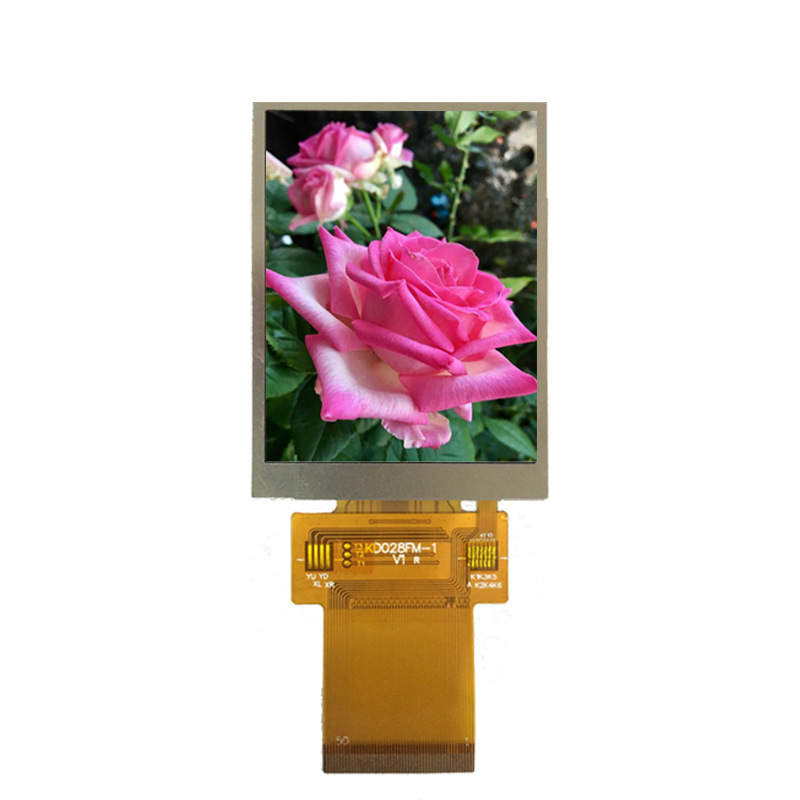

2.8-inch 240*320 resolution IPS LCD module with full viewing angle and 8/9/18-bit parallel interface

1. Module Name: 2.8‑inch 240*320, ST7789V, full‑view 8/9/16‑bit parallel interface, 16/18‑bit RGB, 3/4‑wire serial port PS LCD module
2. Model:
3. Similar Models:
4. Compatible Models:
5. Display Mode: IPS
6. Display Colors: 65K/262K
7. Resolution: 240*320
8. Dot Pitch: 0.153 (H) x 0.153 (V)
9. Viewing Angle: Full viewing angle (160°)
10. Controller IC: ST7789V
11. Display Type: Transmissive, Normally Black
12. Outline Dimension: 50.50*69.75*2.60 mm
13. Viewable Area: 44.80(H)*60.25(V) mm
14. Dot Matrix Area: 43.20*57.60mm
15. Brightness: 480cd/m²
16. Contrast Ratio: 800
17. Interface Type: 8/9/16/18‑bit parallel interface
3/4‑wire serial port + 16/18‑bit RGB
3/4‑wire serial port
18. Number of Pins: 50 pin
19. Pin Pitch: 0.5mm
20. Connection Type: FPC connector type
21. Operating Voltage: 3.3V
22. Backlight Color & Type: White LED backlight
23. Backlight Circuit: 6 LEDs in parallel, common anode
If=120mA, Vf =3.2V
24. Service Life: 50000h
25. Operating Temperature: -20~70°C
26. Storage Temperature: -30~80°C
27. Quality System Certification: ISO9001:2008
28. Product Certification: RoHS
