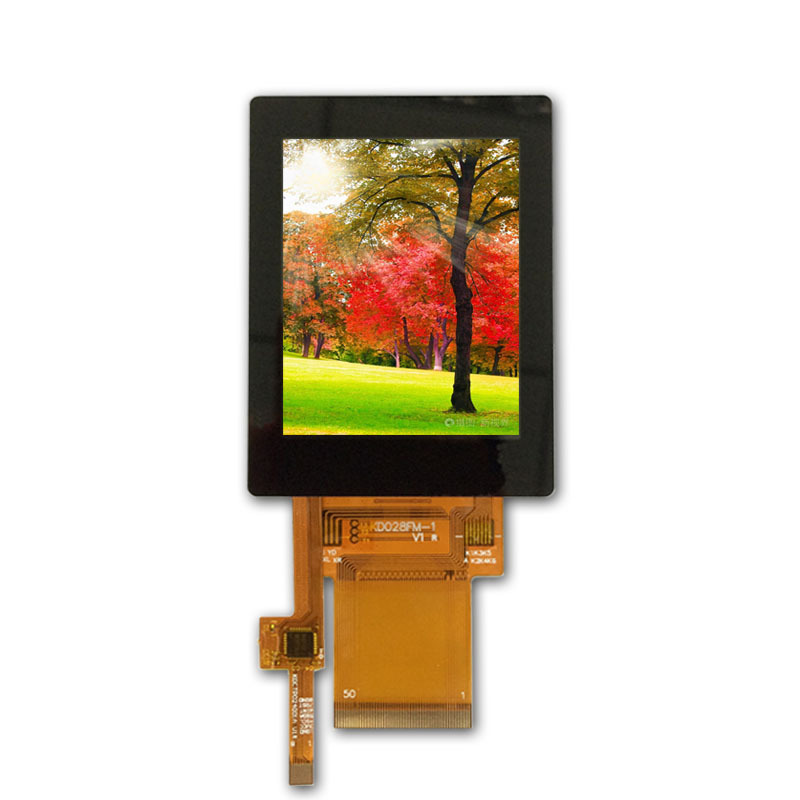

1. Module Name: 2.8‑inch 240*320, ST7789V, Full‑View
Multi‑Interface IPS LCD Module with Capacitive Touch Screen
2. Model:
3. Size: 2.8‑inch
4. With Touch Function: Yes
5. Touch Type: Capacitive Touch
6. Display Mode: IPS
7. Display Colors: 65/262K
8. Resolution: 240*320
9. Dot Pitch: 0.153 (H) x 0.153 (V)
10. Viewing Angle: Full‑View
11. Controller IC: ST7789V
12. Display Type: Normally Black, Full Transmissive
13. Outline Dimension: 56.10*77.29*4.38mm
14. Viewable Area: 44.80*60.25 mm
15. Dot Matrix Area: 43.20*57.60mm
16. Brightness: 500cd/m²
17. Contrast Ratio: 800
18. Interface Type: 8/9/16/18‑bit Parallel Interface
16/18‑bit RGB
3/4‑wire Serial Interface
19. Number of Pins: 50
20. Pin Pitch: 0.5mm
21. Connection Type: FPC Plug‑in Type
22. Operating Voltage: 3.3V
23. Backlight Color & Type: White LED Backlight
24. Backlight Circuit: 6 LEDs in Parallel, Common Anode
If=120mA, Vf =3.2V
25. Service Life: 100000h
Capacitive Touch Screen Parameters:
26. Operating Principle: Projected Capacitance
27. Light Transmittance: ≥86%
28. Haze Value: ≤3%
29. Hardness: ≥6H
30. Channel Number: 22
31. Simultaneous Touch Points: Single‑point
32. Structure: G+G
33. Outline Dimension: 59.10*77.29*2.0mm
34. Viewable Area: 44.2*58.6mm
35. Driver IC: FT6236
36. Interface: IIC
37. Connection Type: Plug‑in Type
38. Number of Pins: 8pin
39. Pin Pitch: 0.5mm
40. Supported Systems: Linux, Android
41. Operating Voltage: DC3.3V
42. Operating Temperature: -20 -- 70°C
43. Storage Temperature: -30 -- 80°C
44. Product Certification: RoHS
45. Quality System Certification: ISO9001:2008
|
