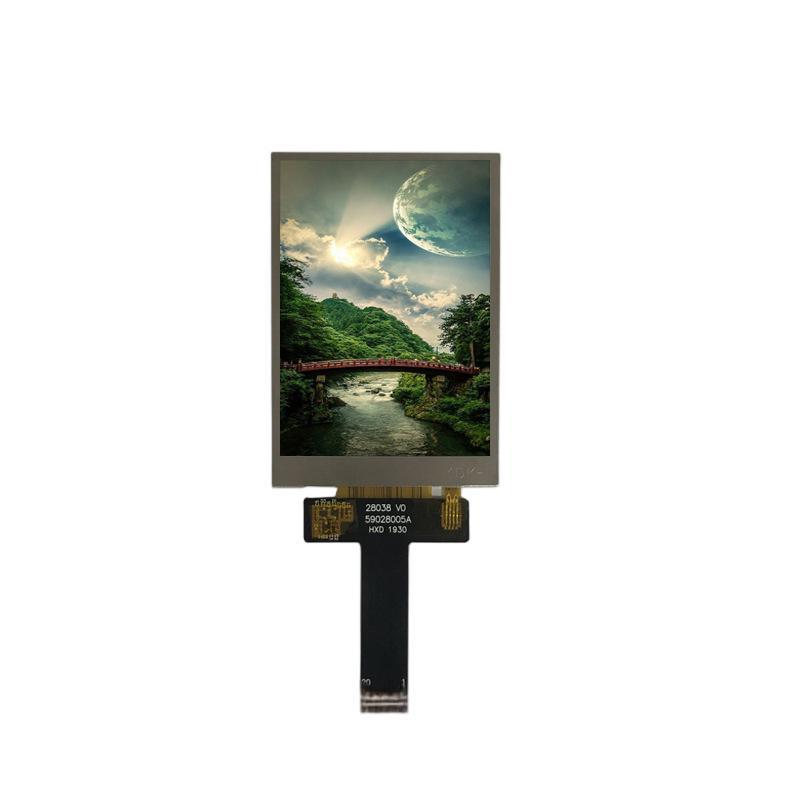

2.8-inch 240*320 Resolution MIPI Interface LCD Display Module with Full Viewing Angle

1. Module Name: 2.8‑inch 240*320, JD9852, MIPI, Full‑color LCD Module
2. Model:
3. Similar Models:
4. Compatible Models:
5. Display Mode: TFT
6. Display Colors: 65K/262K
7. Resolution: 240*320
8. Dot Pitch: 0.18 (H) x 0.18(V)
9. Viewing Angle: ALL
10. Controller IC: JD9852
11. Display Type: Transmissive, Normally Black
12. Outline Dimension: 50.50(H)*69.70(V)*2.60mm
13. Viewable Area: 44.80(H)*60.25(V)mm
14. Dot‑matrix Area: 43.20(H)*57.60(V)mm
15. Brightness: 710cd/m²
16. Contrast Ratio: 800
17. Interface Type: MIPI Interface, 1 LANE MIPI
18. Pin Count: 20
19. Pin Pitch: 0.5mm
20. Connection Type: Plug‑in
21. Operating Voltage: 3.3V
22. Backlight Color & Type: White LED Backlight
23. Backlight Circuit: 6 LEDs in series,
If=20mA, Vf =19.2V
24. Service Life: 50000h
25. Operating Temperature: -20‑‑‑‑70°C
26. Storage Temperature: -30‑‑‑‑80°C
27. Quality System Certification: ISO9001: 2015
ISO13485: 2016
IATF16949: 2015
28. Product Certification: RoHS

We have 15 years of experience in display and touch products, representing and distributing internationally renowned brand LCD screens. We have rich experience in design, supply chain resources, and quality control. The main service areas include medical, industrial control, handheld, instrumentation and other industries. At the same time, we provide one-stop touch display solution services for wholesalers, retailers, etc., and tailor OEM or ODM products to customers.
