Customized Rectangular Micro-D Connector HW-R06-221-C1-9RH-0-JC-30T30

Customized rectangular Micro-D connector HW-R06-221-C1-9RH-0-JC-30T30

Terms of usage

Mechanical Factors:

1. Sinusoidal vibration: frequency range 1-2500Hacceleration amplitude 400m/s?(40g)

2. Single machine mechanical impact: peak impaacceleration 15000m/s(1500g)2 (100g)

3. Linear acceleration 1000m

Climatic Factors:

1. Ambient temperature rise: maximum value durioperation, 85℃, maximum value during transportationand storage, 70℃

2. Reduce the ambient temperature to -6

3. Atmospheric low pressure: value during operation,(mm Hg), air transport value, (Pa mm Hg)

4. Increase the relative humidity to 35℃((no moistucondensation)at high temperature,98%

5. Ambient temperature changes: starting from tmaximum value during operation, 85℃; the minimumvalue during transportation and storage, minus 60℃

6. Connectors can resist special facto

Main Technical Parameters

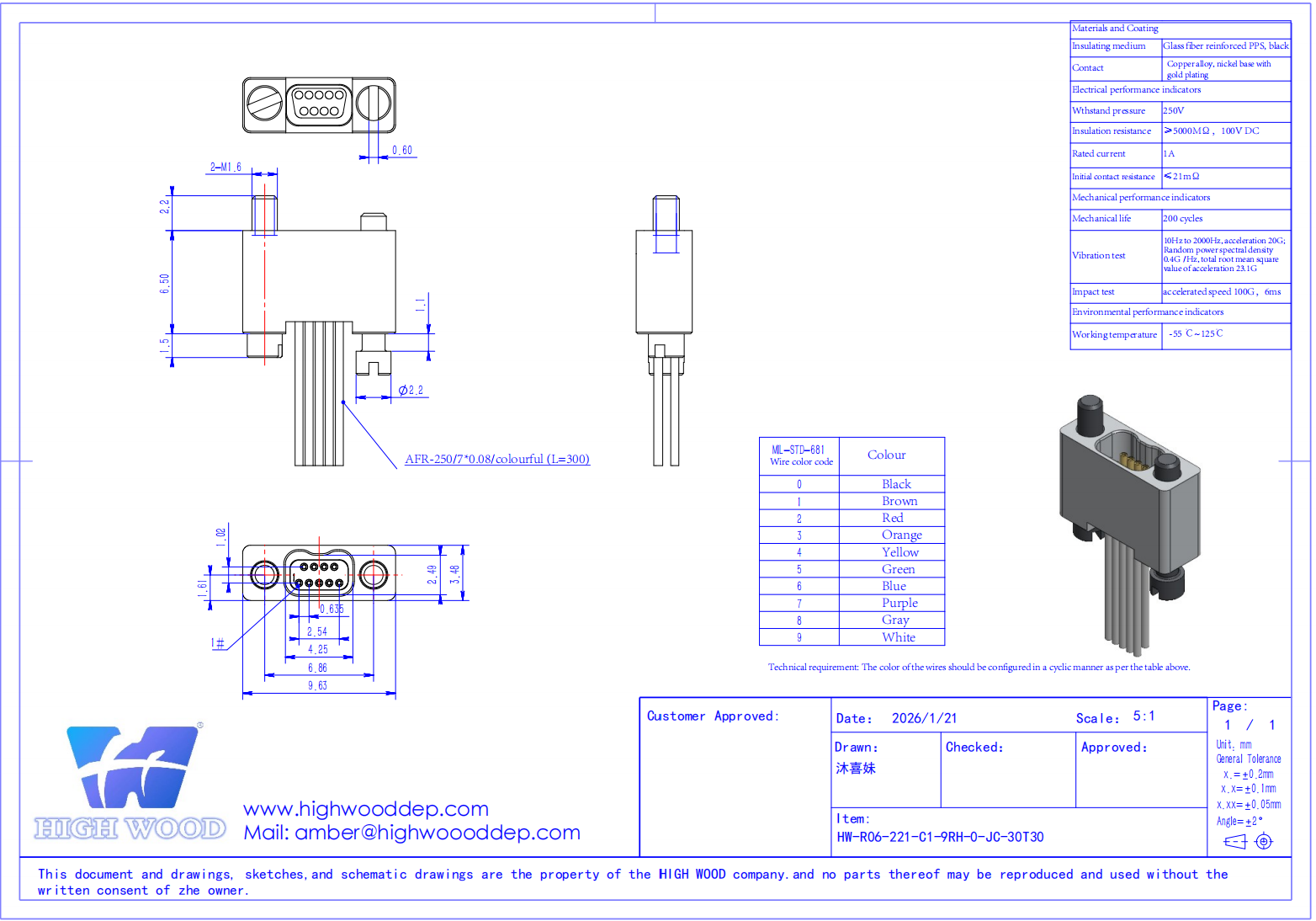

Drawing:

Product pictures:
