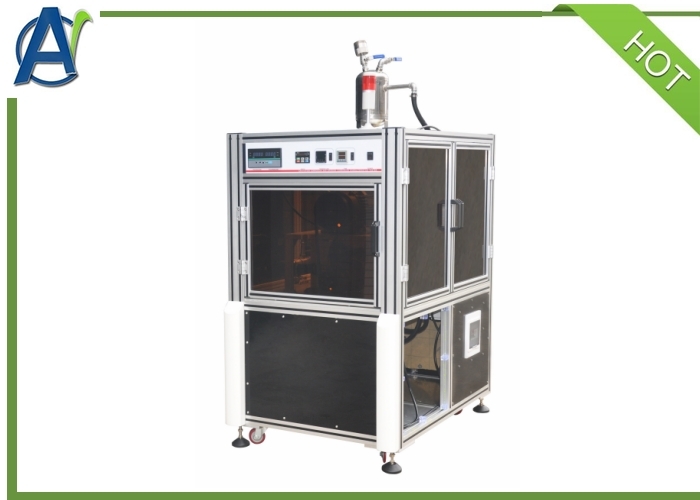

ISO 4925 Brake Fluid Stroke Simulation Testing Equipment

This Stroke Simulation Testing Equipment is suitable for evaluating the lubricating performance and material compatibility of brake fluid.

Under specified test requirements, a total of 85,000 stroke tests are conducted to observe the changes in relevant materials.

• One cast iron brake master cylinder, with a cylinder diameter of 28.58mm to 28.65mm, and an aluminum alloy piston with a diameter of 28.52mm to 28.55mm.
• Three brake slave cylinders, with a cylinder diameter of 28.60mm to 28.66mm, and an aluminum alloy piston with a diameter of 28.52mm to 28.55mm.
• A set of specialized pump body adjustment installation plates.
• The main pipeline is made of uncoated steel pipe.
• A standard driving mechanism capable of generating a working pressure of 8 Mpa.
• Digital display of stroke rate with an adjustable device.
• Radiation-free heating system.
• Rubber cups that meet standard requirements.
• Microcomputer temperature controller with digital display, temperature control range: 20~150ºC±2ºC, PT100 temperature sensor for high precision.
• Pressure gauge displays working pressure, with a precision pressure regulating valve for adjustment, pressure: 7Mpa±0.3 Mpa.
• Digital timer with audible alarm.
• Fully enclosed compressor refrigeration, with gas circulation to reduce the temperature of the test chamber.
• Integrated structure for easy operation.

1. What's the delivery time?

   About 60days.

2. What's your payment terms?

   30% paid by T/T in advance,70% paid by by T/T before shipping.

3. What's your guarantee terms?

   The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4. Can you supply training?

   We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
