200K Cycles 19mm Push Button Switch 1NO High Current Momentary Switch

200K Cycles 19mm Push Button Switch 1NO High Current Momentary Switch

200K Cycles 19mm Push Button Switch 1NO High Current Momentary Switch
200K Cycles 19mm Push Button Switch 1NO High Current Momentary Switch
Categories High Current Push Button Switch
IP level: IP66
Whether The Smart: No
Max. Voltage: 250 V
Switch Combination: 1NO1NC, 1NO, 2NO
Brand Name: Arcolps
Place of Origin: Guangdong, China
Head Type: Flat Head
Material: Metal, Stainless Steel
MOQ: 1000
Delivery Time: 30
Illuminated Type: Ring Illuminated
LED: Other
Terminal Type: Solder Terminal
Max. Current: 10A
Structure: Mechanical
Model Number: 830019
Payment Terms: T/T
Price: $1.14-1.20 / piece
Application: Electric, Home Appliance, Latching, Industrial Control
Contact Now
Company Info.
Shenzhen Arcolps Electronic Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

200K Cycles 19mm Push Button Switch 1NO High Current Momentary Switch

19mm Diameter Stainless Steel Push Button Switch
Product Specifications
ParameterSpecification
Product Name8300 Series Metal Button Switch
Material OptionsStainless steel/Brass clad nickel/Alumina/Custom
Rated Specifications10A 250V T105
Contact Resistance≤50mΩ
Insulation Resistance≥1000MΩ
Dielectric StrengthContact-Panel ≥2000V
Contact-Contact 1500V
Mechanical Life200,000 cycles
Electrical Life50,000 cycles
Operating Temperature-25°C ~ +105°C
Protection ClassIP66
Switch FunctionLatching/Momentary Action
Lamp VoltageCustomizable (12V default)
Luminous ColorRed/Orange/Green/Blue/Custom
Customization Options
  • Switch Function
  • Lamp Voltage
  • Luminous Color
  • Body Material
  • Protective Cover
Product Images

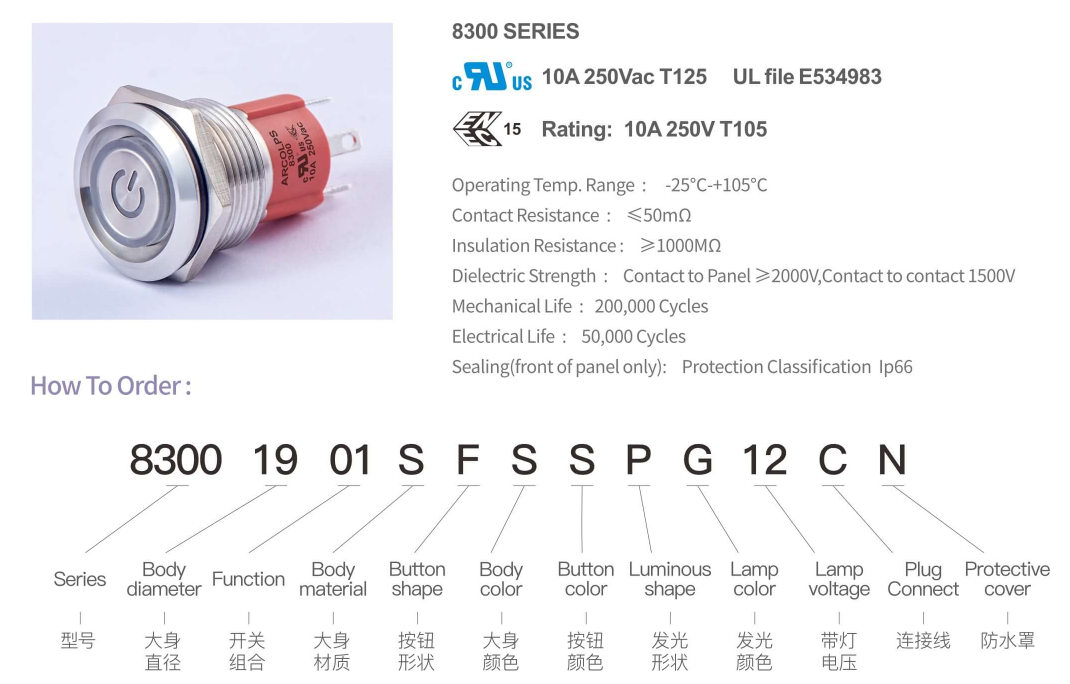

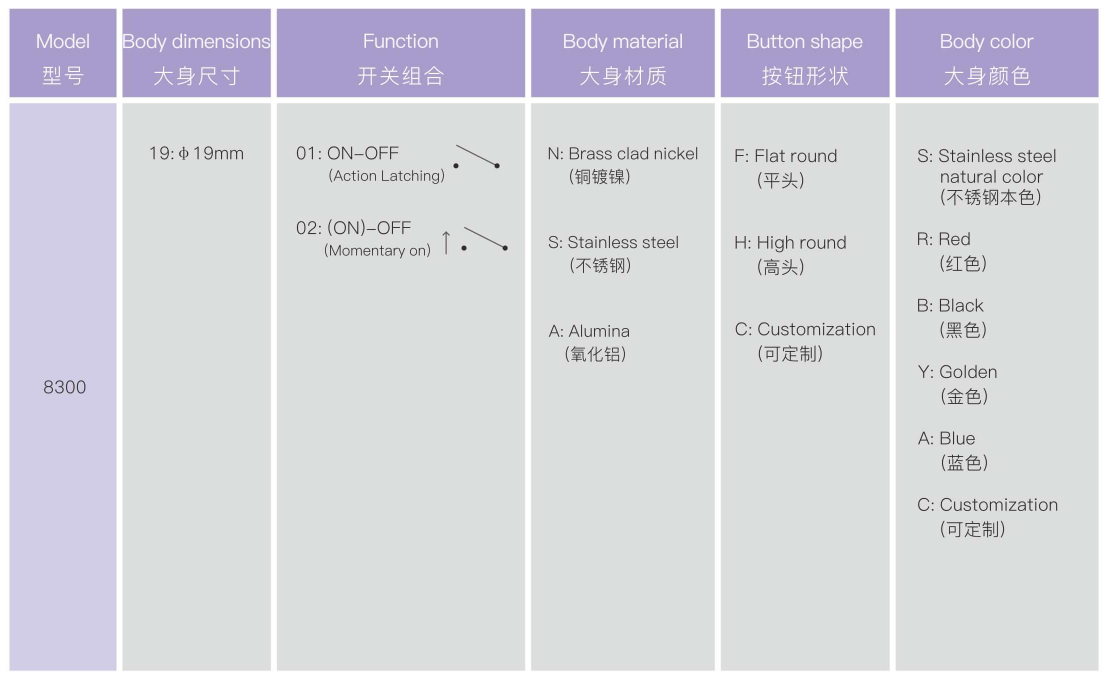

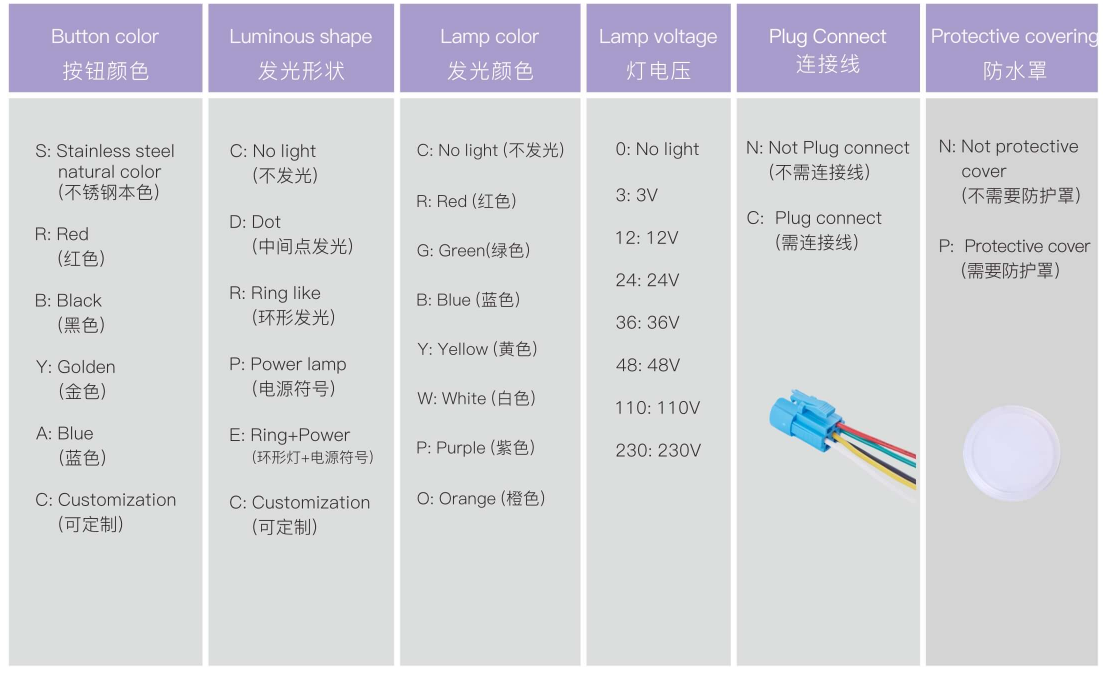

8300 Series Metal Push Button Switch front view8300 Series Metal Push Button Switch side view8300 Series Metal Push Button Switch technical diagram8300 Series Metal Push Button Switch installation view
Key Features
Exceptional Durability

Stainless steel/brass-clad nickel/alumina metal housing provides outstanding corrosion resistance, shock absorption, and vibration protection with 200,000-cycle mechanical lifespan.

Versatile Illumination System

High-intensity LEDs with 6 base colors (Red/Amber/Green/Blue/Yellow/Clear), plus customizable Bi-color/Tri-color configurations. Wide voltage compatibility (2V-380V DC/AC) with 12V default.

Industrial-Grade Protection

IP66 dust/water resistance with oil-proof, pressure-resistant chemical corrosion protection. Operational in extreme temperatures (-25°C to +105°C).

Precision Electrical Performance

≤50mΩ contact resistance, ≥1000MΩ insulation resistance. 2000V contact-panel dielectric strength with 50,000-cycle electrical lifespan.

Compact Value Engineering

Micro-design with flame-retardant PA66 base, fireproof metal housing, and integrated waterproof seal ring for maximum cost-efficiency.

Product Description

The UL-certified (E534983) 8300 Series Metal Push Button Switch combines high-intensity LED illumination. Featuring a fire-resistant metal housing paired with flame-retardant PA66 base, each unit includes factory-installed waterproof sealing and delivers 100% OEM quality.
Configure your perfect switch: Choose between latching/momentary operation (01/02 codes) with unlimited color combinations. Our competitive customization service supports specialized applications across industries.
Order today for premium switching performance!

Applications
  • Industrial control systems
  • Automotive/motorcycle customization
  • Appliance retrofits
  • Power distribution
  • Telecom infrastructure
  • CNC machinery
  • Industrial equipment
  • Electrical installations
Company Profile

Shenzhen Arcolps Electronic Co., Ltd.
Arcolps is a indicator lights and switches manufacturer and exporter with factory in Shenzhen, China and head office in Hong Kong. Our main products include: Metal Button switches, Indicator lamp, Rocker switch, Rotary switch, Slide switch, Micro switch, Push switch, AC socket & receptacles, AC traveller adaptor etc.
Apart from this, we also provide value added services for customers including PCBA, wiring and harness. Most of our products have been certified with international safety approvals. Our quality system has been registered to the ISO 9001:2000 by Underwriters Laboratories Inc. and accredited by JAB.
Products are widely used in household appliances, communication industry, shipbuilding industry, rail transit and more. With over 20 years experience, reliable quality, satisfactory service and prompt delivery are guaranteed.

Why Choose Us
  • UL & Global-Certified Products
  • Premium Indicators & Switches
  • High-Temp & IP67 Options
  • Industry-Compliant (NA/EU/Asia)
  • Fast Worldwide Delivery
Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Product packaging example
Frequently Asked Questions
Q1. What is your terms of packing?
A: Generally, we pack our goods in paper box.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. How about your delivery time?
A: Generally, it will take 15 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q7: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. Honest is basic of business, we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

If you have any other questions, please send us an enquiry, we will reply you ASAP.
