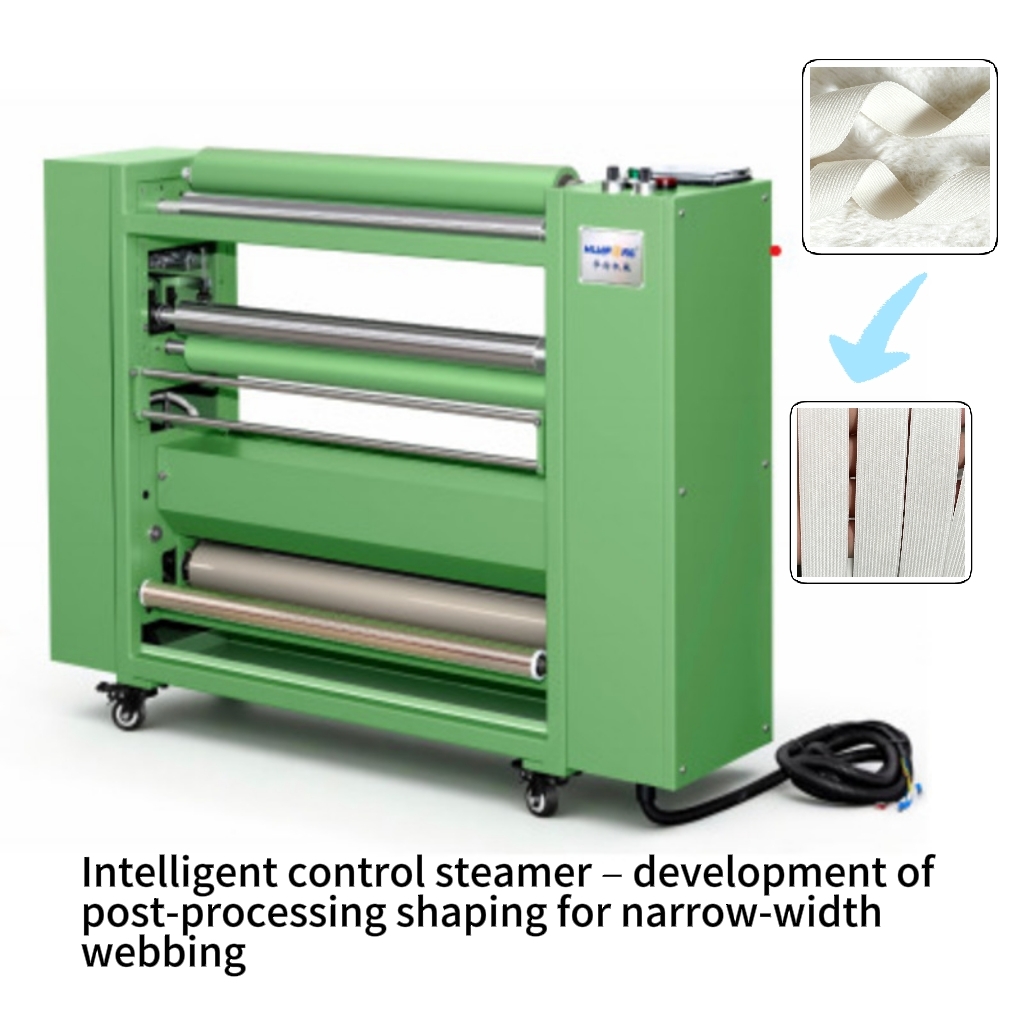

Intelligent‑Controlled Steam Setting Machine for Post‑Processing Shaping of Narrow‑Width Webbing

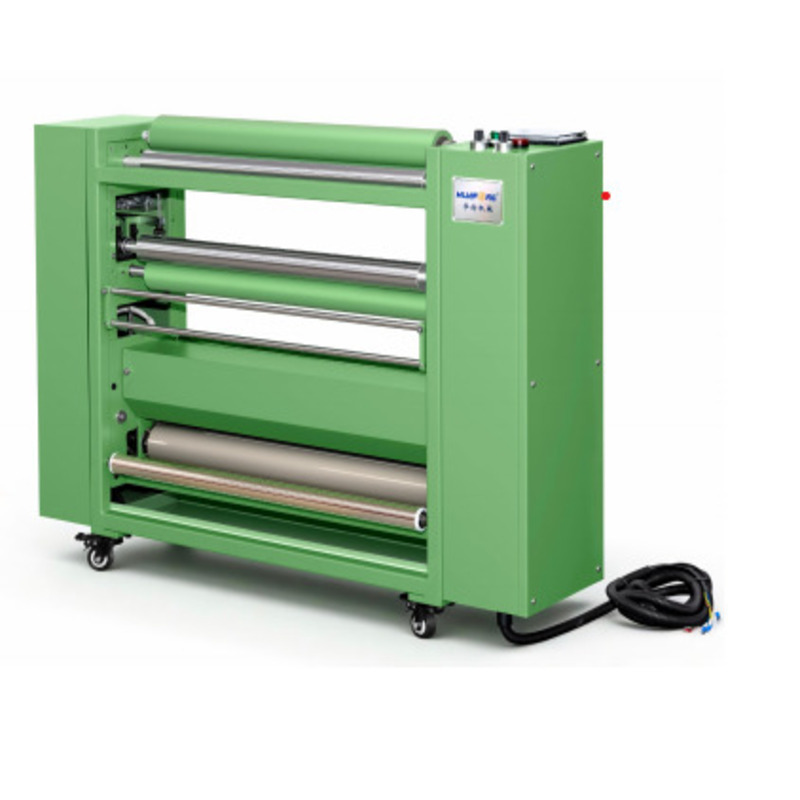

The HF‑B4027 series intelligent webbing stretching & heat‑setting machine is specially developed for post‑finishing setting of narrow‑width webbing. It adopts PLC + 7‑inch color touch screen and dual‑servo traction system, which enables digital setting of tension, temperature, running speed and pre‑shrinkage value, replacing traditional manual adjustment.

This machine effectively solves common industry pain points: webbing waviness, distortion, unstable width, excessive washing shrinkage rate, heavy reliance on experienced operators, defective products caused by mismatched speed‑temperature such as scorching or insufficient ironing. It supports inline installation behind the loom head to realize synchronous weaving and setting. Suitable for large‑batch mass‑production as well as flexible small‑lot multi‑variety manufacturing, helping webbing factories stabilize finished‑product quality, reduce rework and upgrade production efficiency.

Equipped with dual‑servo traction and MODBUS UTU485 control system. Temperature, tension, speed and pre‑shrinkage can be digitally input via touch panel. Temperature control accuracy reaches ±1℃, pre‑shrinkage accuracy ≤2%, effectively avoid webbing distortion, wavy edges and size deviation. Multiple product recipes can be stored for one‑click recall during style change‑over.

Combines stretching‑setting and ironing pre‑shrinkage into one single working procedure. Power consumption is only about 0.4 kWh per hour. Compact footprint saves workshop space, no independent production room required. Greatly cuts long‑term operating costs for webbing manufacturers.

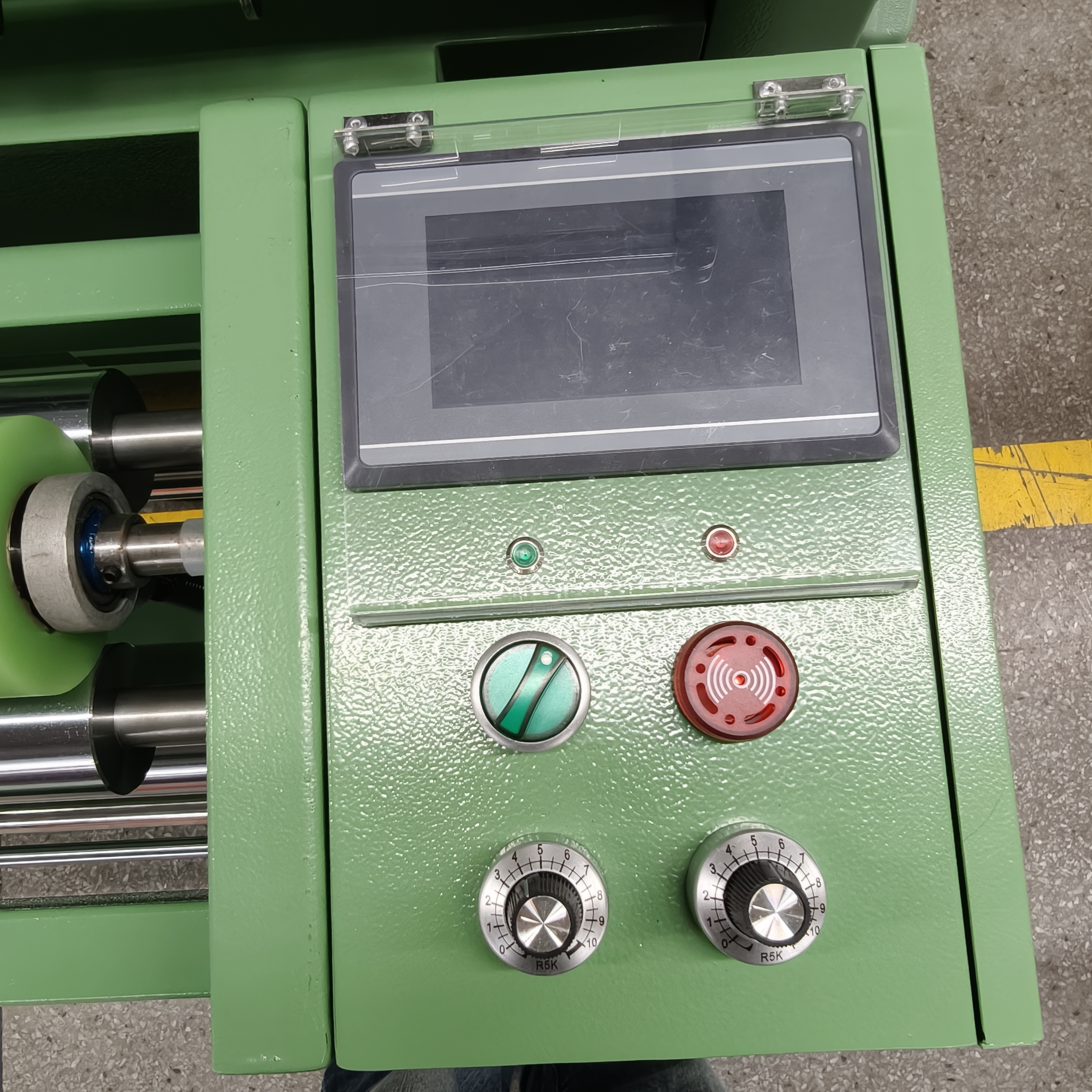

7‑inch colorful touch‑screen HMI. Operators can directly input parameters of speed, temperature, tension and pre‑shrinkage. Saved formulas support fast product switching. New workers can get proficient quickly, lowering material loss from repeated machine tuning.

Optimized mechanical structure and qualified core components for long‑time continuous production. Low failure rate, reduces frequent maintenance and downtime loss for factories.

Two optional working widths: 660mm and 936mm. Fits garment accessories, bag straps, elastic tapes, decorative tapes and other narrow webbings. Perfectly matches small, medium and large‑scale webbing plants with diverse production requirements.

• Garment Accessory Webbing Production
• Luggage & Bag Strap Manufacturing
• Elastic Tape & Decorative Webbing Processing
• Healthcare industry and outdoor sports industry

Standard export wooden case packaging, shock‑proof and moisture‑proof inner filling to protect machine during sea or land transportation.

Customized packing requirements are acceptable upon negotiation.
