| Categories | Standard Hose |
|---|---|
| Model Number: | R1A Wire Braided Hydraulic Hose |
| Working Pressure: | 40-250Bar/580-3625PSI |
| MOQ: | 500M (MOQ) |
| Delivery Time: | 30days |
| Fittings: | Ferrule: No-skive Type DPF2T · Insert: DPX1XX(X:Can choose) · Certificate:MSHA&BV &GOST &IATF 16949· &ISO 9001&ISO 14001&ISO 45001 &DAKKS &SGS &MA&DEKRA Approved |
| Brand Name: | DME&JDE |
| Impulse times: | ≥150,000 times |
| Packaging Details: | Roll Pallet Reel |
| Payment Terms: | T/T |
| Applicable Specs: | ■DIN EN 8531ST■EXCEEDS SAE 100RIA■ IS01436:2009 ■TS 6387 ■ IS01307/EN 1804-3 ■ IS06805/EN 13463-1 |
| Covering: | Anti-abrasive synthetic rubber,resistant to oils,fuels and atmospheric conditions |
| Price: | US$ 1-50 |
| Internal hose: | Synthetic rubber, extruded whole without joints,of uniform thickness |
| Supply Ability: | 10 (MOQ)US$ 29.9-39.9 |
| Product name: | R1A Wire Braided Hydraulic Hose |
| Temperature: | ·-40℃ to+100℃(intermittent 120C) ●-40℃ to+70℃ for water based fluids ·0℃ to+70C hot air ● Prolonged operation at extreme temperatures will reduce hoses life |
| Certification: | MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA |
| Reinforcement: | 1 layer of steel wire braid |
| Place of Origin: | Hengshui City, Hebei Province, China |
| Media: | Mineral and biological oils,glicol-water based,water, lubricant |
| Company Info. |
| DME&JDE FLUID CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
Applicable Specs:
■DIN EN 8531ST ■EXCEEDS SAE 100RIA ■ IS01436:2009 ■TS 6387
■ IS01307/EN 1804-3 ■ IS06805/EN 13463-1
Applications:
Hydraulic Hose specification
| Part Number | Hose Size | I.D. | R.O.D. | O.D. | Operating Pressure | Burst Pressure | Bend Radius | Weight | Length Per PCS | Ferrule | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D. | Dash Size | mm | inch | mm | mm | mm | bar | psi | bar | psi | mm | kgs/m | meter | DMECode |
JDE 311111-05 | -03 | 4.8 | 3/16" | 4.6-5.4 | 9.0-10.0 | 11.9-13.5 | 250 | 3625 | 1000 | 14500 | 90 | 0.240 | 50/100 | DPF2T-03 |
JDE 311111-06 | -04 | 6.4 | 1/4" | 6.2-7.0 | 10.6-11.6 | 15.1-16.7 | 225 | 3262.5 | 900 | 13050 | 100 | 0.255 | 50/100 | DPF2T-04 |
JDE 311111-08 | -05 | 8.0 | 5/16" | 7.7-8.5 | 12.1-13.3 | 16.7-18.3 | 215 | 3117.5 | 860 | 12470 | 115 | 0.304 | 50/100 | DPF2T-05 |
JDE 311111-10 | -06 | 9.5 | 3/8" | 9.3-10.1 | 14.5-15.7 | 19.0-20.6 | 180 | 2610 | 720 | 10440 | 130 | 0.390 | 50/100 | DPF2T-06 |
JDE 311111-12 | -08 | 12.7 | 1/2" | 12.3-13.5 | 17.5-19.1 | 22.2-23.8 | 160 | 2320 | 640 | 9280 | 180 | 0.472 | 50/100 | DPF2T-08 |
JDE 311111-16 | -10 | 16.0 | 5/8" | 15.5-16.7 | 20.6-22.2 | 25.4-27.0 | 130 | 1885 | 520 | 7540 | 200 | 0.581 | 50/100 | DPF2T-10 |
JDE 311111-19 | -12 | 19.0 | 3/4" | 18.6-19.8 | 24.6-26.2 | 29.4-31.0 | 105 | 1522.5 | 420 | 6090 | 240 | 0.690 | 50/100 | DPF2T-12 |
JDE 311111-25 | -16 | 25.4 | 1" | 25.0-26.4 | 32.5-34.1 | 37.1-39.1 | 88 | 1276 | 352 | 5104 | 300 | 0.830 | 50/100 | DPF2T-16 |
JDE 311111-32 | -20 | 31.8 | 1-1/4" | 31.4-33.0 | 39.3-41.7 | 44.4-47.6 | 63 | 913.5 | 252 | 3654 | 420 | 1.325 | 20/40 | DPF2T-20 |
JDE 311111-38 | -24 | 38.1 | 1-1/2" | 37.7-39.3 | 45.6-48.0 | 50.8-54.0 | 50 | 725 | 200 | 2900 | 500 | 1.500 | 20/40 | DPF2T-24 |
JDE 311111-51 | -32 | 50.8 | 2" | 50.4-52.0 | 58.7-61.7 | 65.1-68.3 | 40 | 580 | 160 | 2320 | 630 | 1.875 | 20/40 | DPF2T-32 |

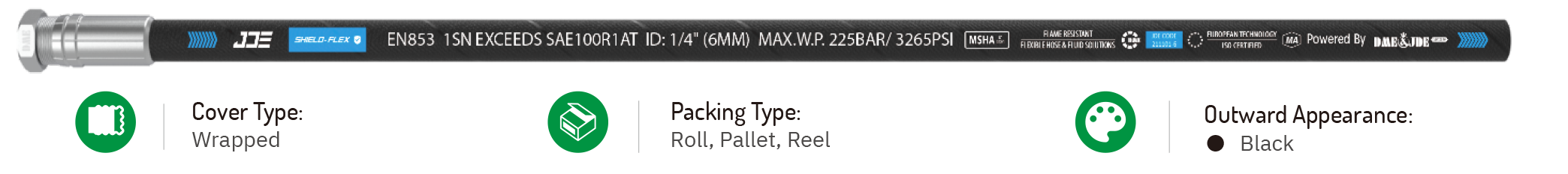

Marking / Layline (Printing, Ink)
Quality Control
Certificate
Related Product
FAQ
1. Q: What is your sample policy?
A: Free samples available if we have ready part in stock, shipping
cost is on buyer's side.
2. Q: How do you guarantee your quality and what after-sale service
do you have?
A: Our factory follow the quality standard in every produce
process. Any quality problem within 12 months after purchase, we
are responsible for it.
3. Q: How do you ensure the quality?
A: We have strict QC process:
1). For raw material;
2). During the half of production;
3). Final QC before shipment
More details please review production details.
4. Q: What is your terms of price?
A: EXW, FOB, CFR, CIF, DDU.
5. Q : How do you make our business long-term and good
relationship?
A: Build Trust: Trust is the foundation of any long-term
relationship. To establish trust, we need to be transparent in our
dealings with customers and provide consistent and reliable
services.
Listen to Customers: Listen carefully to customers' feedback,
understand their needs, and customize solutions according to their
requirements.
Communicate: Maintain regular and open communication with
customers, keeping them informed about updates, new products, and
services.
Reward Loyalty: We value our loyal customers and reward their
business with discounts, special offers, and personalized services.
Provide Excellent Customer Service: We ensure our customer service
is top-notch, responding promptly to inquiries and complaints, and
going above and beyond to provide exceptional service that exceeds
customers' expectations.
6. Q: What certificates do you have?
A: Each hose we produce has obtained corresponding certificates,
especially ISO and ABS system certificates, which is the
recognition of our production capacity.
7. Q: Is it possible to visit your factory?
A: We warmly welcome you to visit our factory at any of your
convenient time.
|
