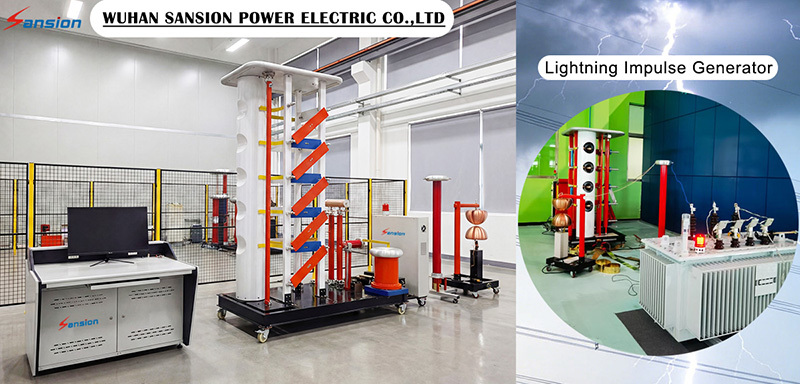

Automatic Lightning Impulse Voltage Generator Intelligent High Voltage Test System with Digital Waveform Analysis and Automatic Test Report

The Automatic Lightning Impulse Voltage Generator combines high-voltage impulse generation with intelligent digital control and waveform analysis.

Instead of relying entirely on manual adjustments and separate measurement equipment, the system can integrate charging control, triggering, waveform acquisition and parameter analysis.

The operator can monitor the entire test process through the control interface and evaluate waveform characteristics in real time.

Intelligent Functions

• Automatic charging
• Automatic triggering
• Programmable impulse sequences
• Automatic waveform acquisition
• Real-time waveform display
• Waveform zooming
• Waveform comparison
• Automatic parameter calculation
• Peak voltage analysis
• Wavefront time analysis
• Tail time analysis
• Test data storage
• Automatic report generation

Why Choose an Intelligent System?

Higher efficiency: Less repetitive manual adjustment.

Better repeatability: Standardized digital test procedures.

Easy data management: Waveforms and results can be stored for future analysis.

Simplified operation: Clear software interfaces can make complex testing procedures easier to manage.

FAQ

Q: Can the system automatically generate a test report?
A: Yes. Report templates and automatic data output can be configured according to customer requirements.

Q: Can operators compare different impulse waveforms?
A: Yes. Modern digital measurement systems can support waveform comparison and historical data analysis.

Q: Can the waveform be enlarged for detailed analysis?
A: Yes. Digital waveform software commonly supports zooming, scaling and detailed parameter analysis.
