2.0 inch Transflective TFT Module with 240X320 Resolution and SPI Interface

2.0 inch Transflective TFT Module with 240X320 Resolution and SPI Interface

2.0 inch Transflective TFT Module with 240X320 Resolution and SPI Interface
2.0 inch Transflective TFT Module with 240X320 Resolution and SPI Interface
Categories Sunlight Readable TFT
Model Number: HX20LQ117A
interface: SPI
Packaging Details: blister+foam box+bubble bag+inside carton+master carton
MOQ: 1000
Delivery Time: 6weeks~8weeks
view angle: Wide Viewing
Brand Name: HuaXin
Driver IC: ILI9342C
Payment Terms: T/T
name: TFT LCD MODULE
Brightness: 190nit
Supply Ability: 100K per month
Display Technology: IPS /Transflective TFT
Backlight: 3LEDS
Certification: ISO14001/ISO9001/IATF16949
Price: negotiation
size: 2.0"
resolution: 240*320
Place of Origin: China
Contact Now
Company Info.
HuaXin Technology (HK) Co.,Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

2.0 inch Transflective TFT Module with 240X320 Resolution and SPI Interface


2.0 inch Transflective TFT Module 240X320 Resolution SPI Interface, Driver IC ILI9342C 190nit 3LEDS Wide Viewing
Product Specifications
Part NO.HX20LQ117A
Display TechnologyIPS TFT LCD
Diagonal Screen Size2.0 inch
Active Area (mm)41.80(H)X31.60(V)
Panel size(mm)46(H)X41.30(V)X2.53(T)
Brightness(cd/m2)190
Resolution240*320
InterfaceSPI
View angleWide Viewing
Driver ICILI9342C

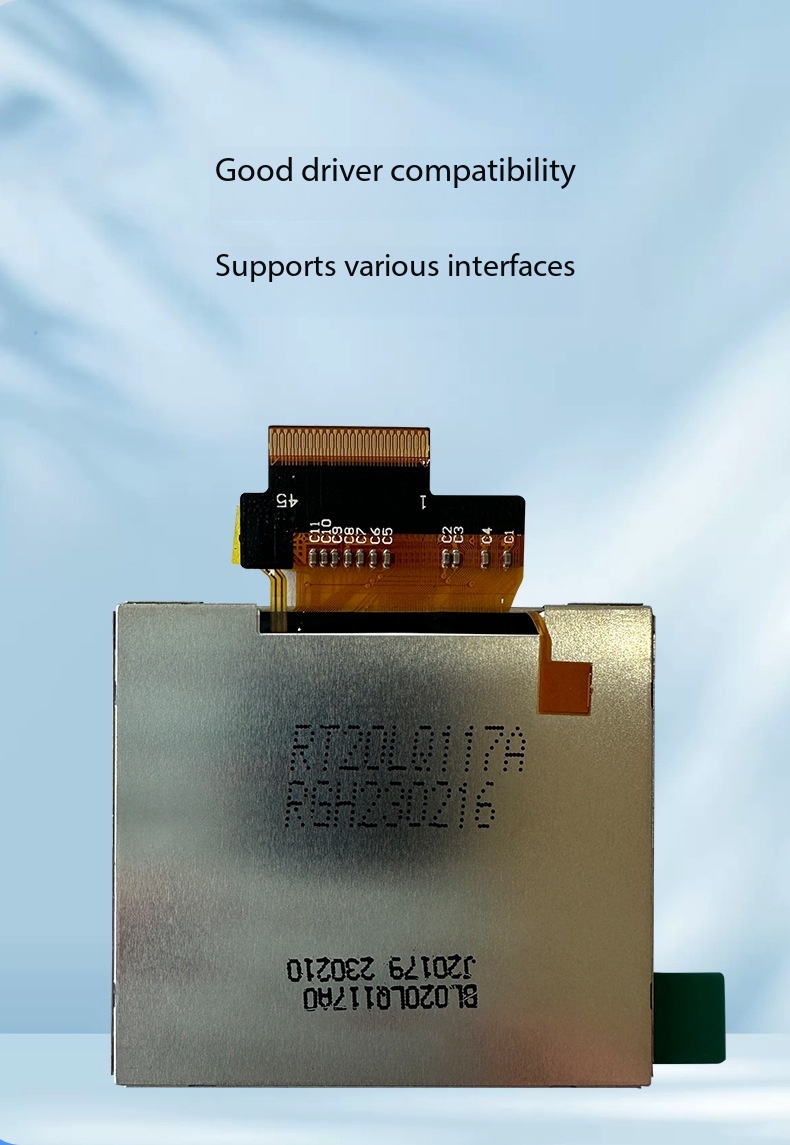

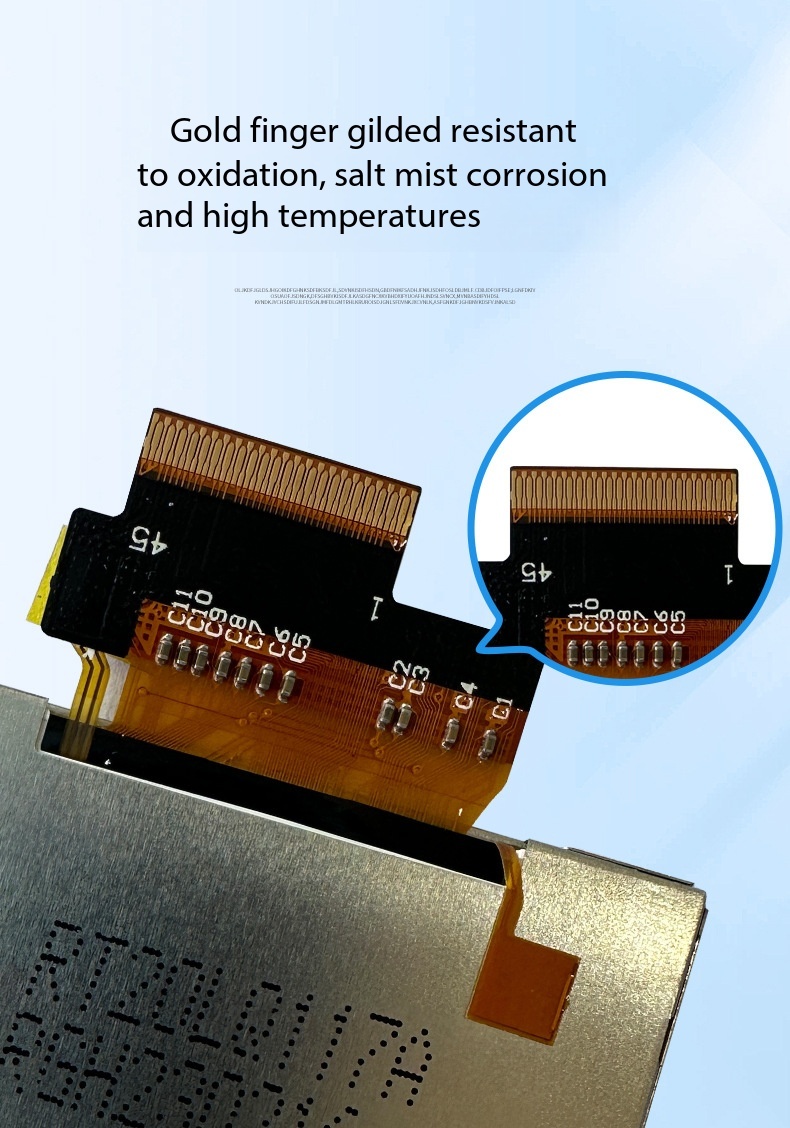

Product Picture






Technical Drawing




TFT Technology Overview
TFT substrate input and CF substrate input flow chart TFT structure diagram
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Located in Hubei, Enshi | Founded: 2009
High-technology enterprise specializing in R&D, production, and sales of LCD, LCM, TFT, backlight, and OLED displays
Company Advantages:
  • Cost-effective factory base in inland city
  • Advanced equipment for stable quality
  • Automated processes for efficiency and consistency
  • Expert engineering team with 20+ years experience
  • Custom product design capabilities
Certifications: ISO14001, ISO9001, IATF16949, SGS for LCD modules
Product Portfolio:
  • LCD: VA, TN, HTN, STN, FSTN, CSTN series
  • LCM: COB, TBA, COG, TP, LED backlight series
Company Statistics:
  • Registered capital: 20 million
  • Current staff: 500+ employees
  • R&D accounts for 10% of workforce
  • QC accounts for 15% of workforce
Production Capacity
Product Type20212022202320242025Unit
LCD Production4.59999Thousands of logarithms/Day
LCM Production70150300450450Thousand pieces/Day
Backlight Production100200300500500Thousand pieces/Day
OLED Production1020304050Thousand pieces/Day
Product Applications
  • Car navigation systems & printers
  • Video call systems & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • Excellent image quality with high resolution, sharpness, and color accuracy
  • Fast response times for quick pixel switching
  • Wide viewing angles with minimal color shifts
  • Energy-efficient operation
  • Available in various sizes from small handheld to large panel displays
  • LED backlighting for screen illumination
  • Wide range of applications across multiple industries
TFT Display Limitations
  • Limited viewing angles compared to some technologies
  • Limited contrast ratio
  • Backlighting requirements and power consumption
  • Response time limitations and potential motion blur
  • Limited flexibility in display form factors
  • Limited color gamut range
