Desktop UV LED Conveyor Curing System for Lab & Small Batch

Categories UV Curing Conveyor Systems
Model Number: CG-GHL-W400-360*27-A/C
Price: 3500-3900usd 1 set
Cooling way: Water cooling
UV intensity: 18W/CM2
Wave length: 395nm/365nm
Package: Wooden case
Warranty: 2 years
Keyword: UV Curing Conveyor Systems
Payment Terms: L/C,T/T
MOQ: 1set
Place of Origin: China
Supply Ability: 10 SET/DAY
Certification: CE*RoHS
Delivery Time: 10-15 Working days
Input voltage: AC85-265V
Power: 1500W
Brand Name: CG
Packaging Details: Wooden case
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

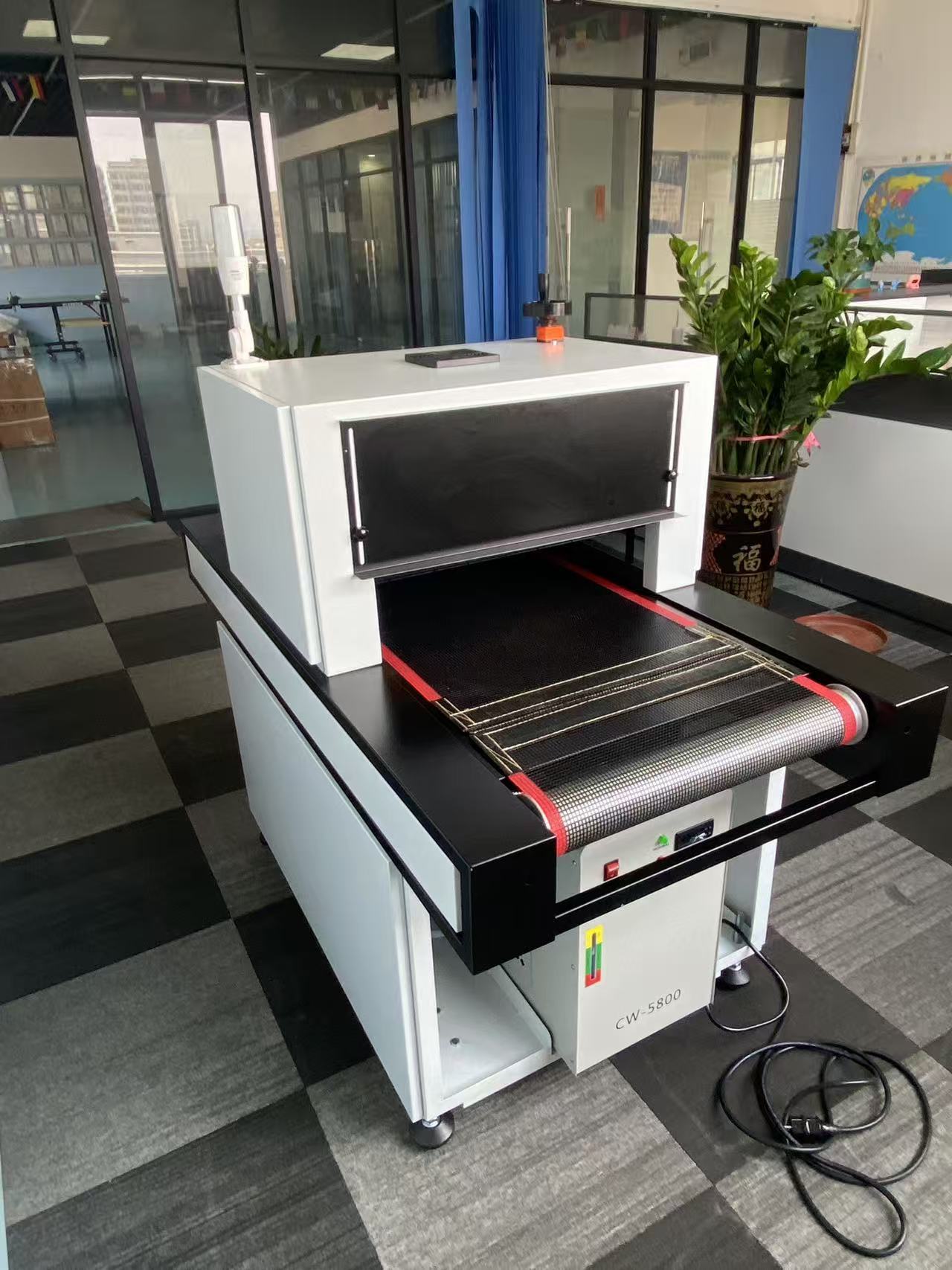

Desktop UV LED Conveyor Curing System for Lab & Small Batch

Desktop UV LED Conveyor Curing System for Lab & Small Batch
LED UV curing technology is a cutting-edge solution that utilizes targeted UV radiation to rapidly cure a variety of photo-sensitive materials like inks, resins, and coatings. This innovative approach delivers high speed and superior results, establishing it as the preferred method in today's market.
Technical Specifications
ParameterSpecificationParameterSpecification
ModelCG-GHL-W400-360*27-A/CLamp ColorRose Golden
Power1500WChip BrandLG/Seoul
Input VoltageAC85-265VWavelength365/385/395/405nm
ApplicationUV ink/varnish/coating/adhesive curingLifespan20000H
Cooling MethodWater CoolingEmitting Window SizeCustomized
UV Intensity18W/CM²Dimmable0%-100%
Best Emitting Distance30-50mmPackageWooden Case
System Advantages
  • Energy-saving - 1000W LED UV equals 6000W mercury lamp drying effect
  • Environmentally friendly - No mercury, ozone, or VOC discharge
  • Instant operation - No warm-up required, turns on/off instantly
  • Low temperature operation - Suitable for PE and film ink curing
  • Long lifespan - 20,000 hours operational life
Product Details Description
Frequently Asked Questions
What's the wavelength of the LED UV lamp?
Usually 395-405nm. The 395nm/385nm is used for printing machines, while 365nm is for adhesives.
What's your LED brand?
LG/Seoul
What's the material of lamp and lens?
Aluminium/quartz
What's the cooling method for the LED UV curing system?
Water or air cooling
Can the UV intensity be changed?
Yes, the UV intensity is adjustable from 0%-100%.
What's the maximum energy of the UV LED lamp?
It depends on emitting time - the longer the duration, the higher the total energy output.
What's the lifespan of the UV LED curing lamp?
Our warranty is 2 years for all systems (including chiller and power supply), with most systems reaching 5 years of operational life.

Can a UV curing machine be used for all types of glue and ink?
No. A UV curing machine only works with UV-curable materials that contain specific photoinitiators.
