Portable Optical-Axis Test Equipment Multi‑Band Calibration Instrument Long-Duration Field Test

1. Introduction

Portable optical-axis test equipment is an efficient measuring instrument for multi-optical-axis parallelism detection and calibration of optical systems including laser devices, infrared sensors and multispectral imaging systems.

Built with lightweight materials and modular compact construction, the unit is easy-to-carry and allows rapid field deployment. It adopts battery supply to sustain long-duration field work. Good environmental adaptability enables reliable operation under harsh field conditions including high-low temperature and humid surroundings.

2. Technical Specifications

Note: Specifications are for reference only and subject to change without prior notice.

3. Applications

• Field in-situ optical-axis calibration for opto-electronic pods and observation-aiming devices
• Parallelism detection for laser ranging / laser pointer optical axes
• Assembly, adjustment and verification for multi-spectral and infrared imaging systems
• Equipment maintenance inspection and on-site fault troubleshooting

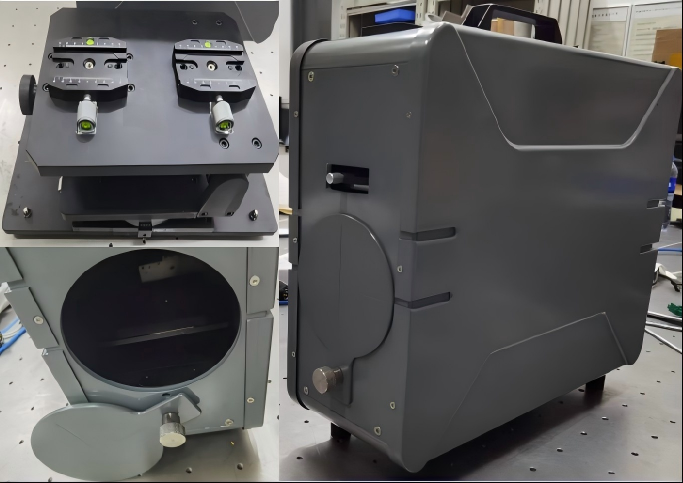

4. Product Appearance

5. FAQs

Q1: What wavebands can this equipment measure?

A: It supports 1064±10 nm, optional 3 μm~5 μm and 8 μm~14 μm multi-band measurement.

Q2: What is the optical-axis detection accuracy?

A: Optical-axis detection accuracy ≤10 arc-seconds.

Q3: Can it work in outdoor field conditions?

A: Yes. Compact portable & battery-driven design supports rapid field deployment, with certain tolerance to high-low temperature and humidity.

Q4: What typical usage scenarios does it apply to?

A: Field in-situ calibration, laser optical-axis parallelism inspection, multi-spectral system alignment and on-site maintenance troubleshooting.
