Silent Type Backup Power Diesel Generator

Categories Backup Diesel Generator
Model Number: JFP-15GF
Warranty: 1 Year
MOQ: 1
Controller: Deepsea/ComAp/Smartgen
Rated Voltage: 400/230V 3-Phase 4-Wire, single-phase 230V optional
Brand Name: JFP
Application: Backup Standby Power Supply
Rated Current: 27A
Delivery Time: 10 days
Standby Power: 16.5kW / 20.6kVA
Cooling Method: Water Cooled
Payment Terms: L/C,T/T
Prime Power: 15kW / 18.75kVA
Noise Level: ≤72dB(A) @7m
Packaging Details: Plyfilm or plywood
Frequency: 50Hz (60Hz customizable)
Power Factor: 0.8 lagging
Certification: ISO, CE, TLC, CCS, BV
Phase: 3 Phase 4 Wire
Place of Origin: Jiangsu, China
Type: Silent Type
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Silent Type Backup Power Diesel Generator

JFP 15kW Silent Backup Diesel Generator Set
Product Overview

This 15kW (18.75kVA) silent backup diesel generator set is a compact emergency standby power solution. Equipped with water-cooled industrial diesel engine, full-copper brushless alternator and integrated silent rainproof canopy, it complies with ISO 8528 standards. It delivers stable power supply for residences, small shops, offices, remote farms and small workshops when utility power fails. Open-frame version and ATS automatic transfer switch are available as optional upgrades.

Main Features
  • Compact Water-Cooled Diesel Engine: 4-stroke water-cooled diesel engine with stable performance, low vibration and good fuel efficiency. 24V DC electric start enables quick startup during power outages. Adaptable to high-temperature and dusty working conditions. Built-in fuel tank supports long-time continuous operation.
  • Full-Copper Brushless Alternator: Class H insulation, IP23 protection grade, low voltage waveform distortion. Support 3-phase 400/230V or single-phase 230V output, 50Hz (60Hz customizable). Provides clean stable power to protect household appliances, office devices and small agricultural equipment from voltage fluctuation damage.
  • Silent Rain-Proof Canopy: Fully sealed dust-proof and anti-corrosion steel canopy filled with multi-layer sound-absorbing cotton and silencer. Operating noise ≤72dB(A) @7m. Optimized air intake and exhaust heat dissipation duct prevents overheating, allows outdoor placement without dedicated generator room.
  • Intelligent Control & Complete Safety Protection: Digital control panel real-time shows voltage, current, frequency, coolant temperature, lube oil pressure and running hours. Built-in protection: high water temperature, low oil pressure, overvoltage, undervoltage, overload, short-circuit, with sound-light alarm and auto emergency shutdown. Optional ATS cabinet realizes unattended auto-start and automatic power switching.
  • Integrated Base Frame: Light-duty channel-steel welded base with rubber shock absorbers to reduce vibration and noise transmission. Compact footprint, easy lifting and transportation, suitable for limited installation space of home backyard, store rear area and farm premises.
Technical Specifications
ItemParameter
Prime Power15kW / 18.75kVA
Standby Power16.5kW / 20.6kVA
Frequency50Hz (60Hz customizable)
Rated Voltage400/230V 3-Phase 4-Wire, single-phase 230V optional
Rated Current27A
Power Factor0.8 lagging
Cooling MethodWater Cooled
Starting Mode24V DC Electric Start
StructureSilent sound-proof canopy
Noise Level≤72dB(A) @7m
Fuel Consumption @75% Load~3.3 L/h
Optional AccessoriesATS automatic transfer switch, open-frame structure
Competitive Advantages
  • Compact silent design, low noise interference for residential and commercial surrounding environment.
  • Water-cooled power unit delivers reliable performance, better heat dissipation than air-cooled models for long-time standby use.
  • Support single-phase / three-phase optional output, fit home, shop and farm mixed-load requirements.
  • Simple operation, full safety protection, friendly for non-professional operators.
  • Small overall dimension, saves installation space, convenient for moving and deployment.
  • Cost-effective emergency backup power for small-scale domestic and light-commercial scenarios.
Application Scenarios
Family houses, retail shops, small offices, remote farms, livestock sites, country villas, small workshops and other places requiring compact silent emergency backup power.

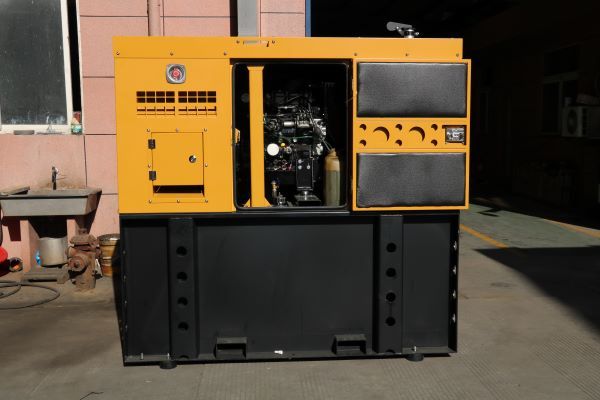

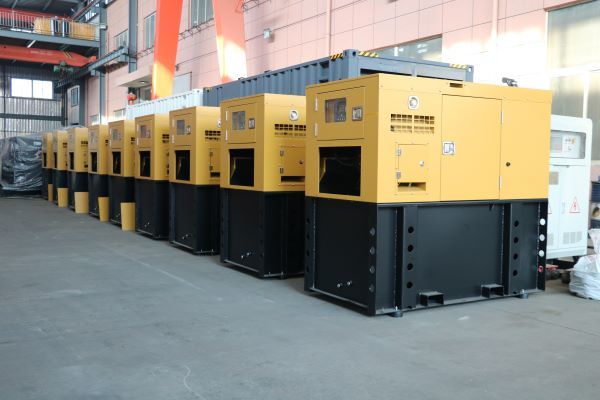

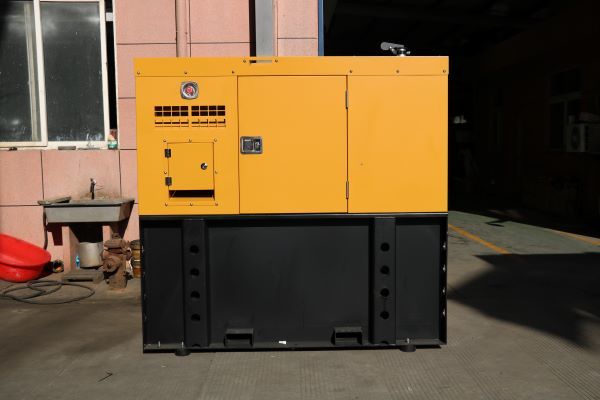

Product Images
