| Categories | 1.44 Inch Display |
|---|---|
| Display Type: | TFT |
| Product Name: | 1.44 Inch LCD 128x128 TFT Display ST7735 Screen with Small Touch Panel |
| Place of Origin: | China |
| MOQ: | 1 piece |
| Resolution: | 128 x 128 |
| Delivery Time: | In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks; |
| Color: | Color |
| Interface: | MCU |
| Controller Ic: | ST7735S |
| Payment Terms: | T/T, L/C, Credit card, Cash |
| Viewing Angle: | 6 O'Clock |
| Supply Ability: | 5000000000 pieces/year |
| Packaging Details: | Tray + Inner Box + Carton |
| Operating Temperature: | -20°C to 70°C |
| Display Size: | 1.44 inch |
| Supply Voltage: | 3.2V |
| Model Number: | KWH014ST12-C01 |
| Brand Name: | Formike |
| Dimensions: | 32.36mm x 38.00mm x 4.45mm |
| Company Info. |
| Formike Electronic Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

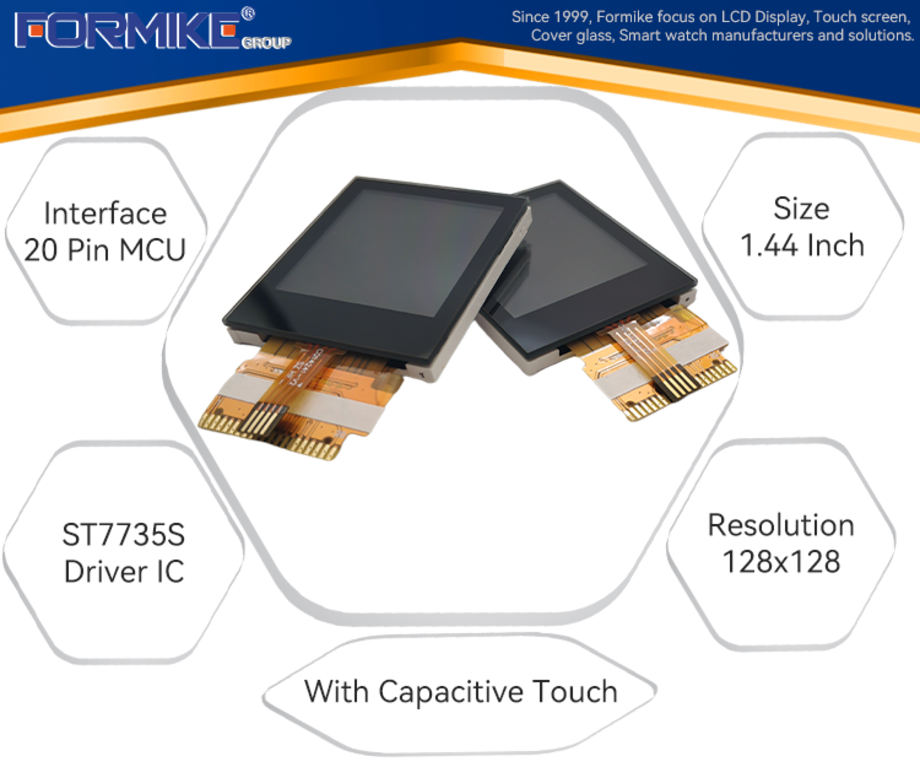

| LCD Name | 1.44 Inch LCD 128x128 TFT Display ST7735 Screen with Small Touch Panel | ||
LCD Size | 1.44 inch LCD Module | Resolution | 128x128 |
Color | 65K | Contrast Ratio | 500:1 |
Outline Dimension | 32.36 x 38 x 4.45mm | Active Area(HxV mm) | 25.4976 x 26.496mm |
Viewing Direction | 6 O’clock | Interface | 8 BIT MCU/4W SPI/3W SPI, 32pins |
Backlight | 1 LED | Brightness | 140cd/m2 |
IC Driver | ST7735S | Backlight Supply Current/Voltage | 15mA,3.2V |

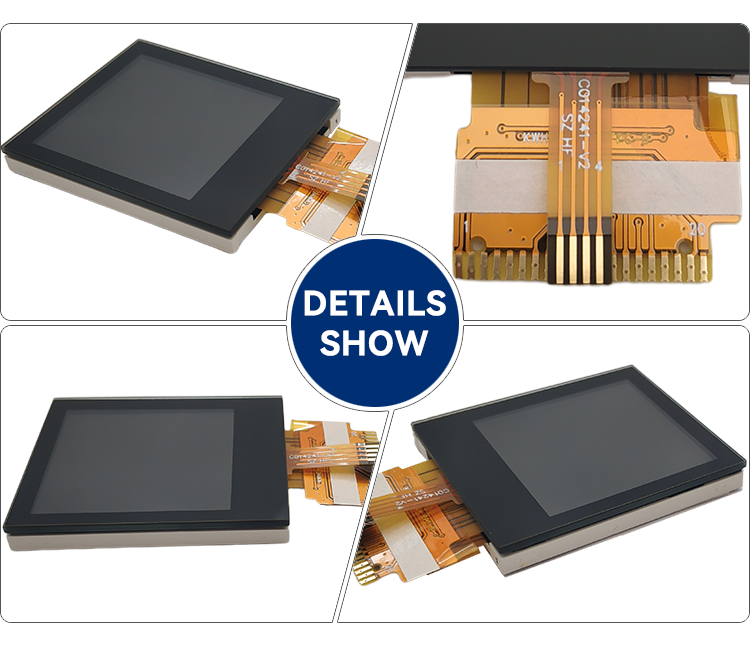

* KWH014ST12-C01 is a small Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC, backlight, CTP.
* It is 128x128 resolution TFT LCD module.
* Backlight with different brightness options from 250 - 1500cd/m2 are available.
* Specific touch panel can be designed & customized.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.
|
