2 Tons Spider Crawler Crane With Rubber Tracked Chassis For Small Spaces

Categories Crawler Spider Crane
Supply Ability: 100 set per month
Boom angle/time: 0-78°/13sec
Brand Name: Hightop
Model Number: HTSC2.0
Maximum operating radius: 6m
Certification: CE,EPA,ISO,TUV
Maximum above ground lift: 6.5m
Price: Negotiation
Packaging Details: Wooden case
Boom form: 2m x 4-section boom (customizable)
MOQ: 1 set
Wire Rope Specifications: Φ8mm×45m
Payment Terms: L/C,D/P,D/A,T/T
Boom length/time: 6.5m/20sec (Support customization)
Delivery Time: 5-14 work days
Rotation angle/speed: 0-360° (continuous)/60sec
Place of Origin: China
Hook Rising Speed: 0-8m/min(4 ropes)
Company Info.
Shandong Hightop Group
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

2 Tons Spider Crawler Crane With Rubber Tracked Chassis For Small Spaces

2 Tons Crawler Spider Crane Basic
Product Overview

This compact crawler spider crane features a small size, light weight, and compact structure, making it ideal for confined spaces such as floor roof lifting and substation maintenance.

  • Rubber tracked chassis prevents ground damage and adapts to various surfaces
  • High-strength manganese steel boom for superior lifting capacity
  • Optional remote control for convenient operation

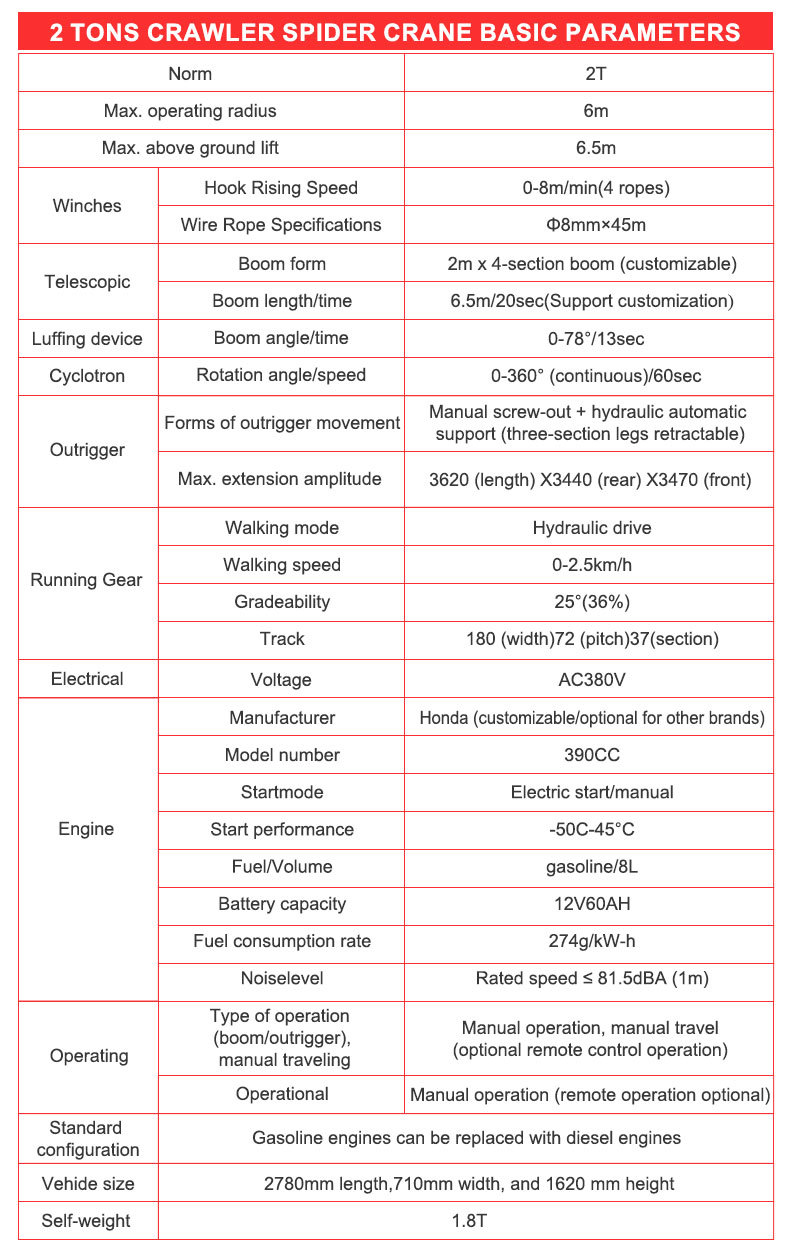

Technical Specifications
ParameterSpecification
Capacity2T
Maximum Operating Radius6m
Maximum Above Ground Lift6.5m
Winches
ParameterSpecification
Hook Rising Speed (4 ropes)0-8m/min
Wire Rope SpecificationsΦ8mm*45m
Telescopic Boom
ParameterSpecification
Boom Form2m x 4-section boom (customizable)
Boom Length/Time6.5m/20sec (Support customization)
Luffing Device
ParameterSpecification
Boom Angle/Time0-78°/13sec
Cyclotron
ParameterSpecification
Rotation Angle/Speed0-360° (continuous)/60sec
Outrigger
ParameterSpecification
Forms of Outrigger MovementManual screw-out + hydraulic automatic support (three-section legs retractable)
Maximum Extension Amplitude3620 (length) X3440 (rear) X3470 (front) mm
Running Gear
ParameterSpecification
Walking ModeHydraulic drive
Walking Speed0-2.5km/h
Gradeability25°(36%)
Track180 (width) 72 (pitch) 37 (section)
Electrical System
ParameterSpecification
VoltageAC380V
Engine
ParameterSpecification
ManufacturerHonda (customizable/optional for other brands)
Model Number390CC
Start ModeElectric start/manual
Start Performance-50°C-45°C
Fuel/VolumeGasoline/8L
Battery Capacity12V60AH
Fuel Consumption Rate274g/kW-h
Noise LevelRated speed ≤ 81.5dBA (1m)
Operation
ParameterSpecification
Type of Operation (boom/outrigger)Manual operation, manual travel (optional remote control operation)
Operational ModeManual operation (remote operation optional)
Physical Dimensions
ParameterSpecification
Vehicle Size2.78m length, 0.71m width, 1.62m height
Self-weight1.8T
Standard Configuration & Options

Standard Configuration: Gasoline engines can be replaced with diesel engines

Optional Accessories: Torque controller, remote control, cradle, hydraulic flying jib

Available Colors: Red, green, yellow, white, grey, black

Product Images

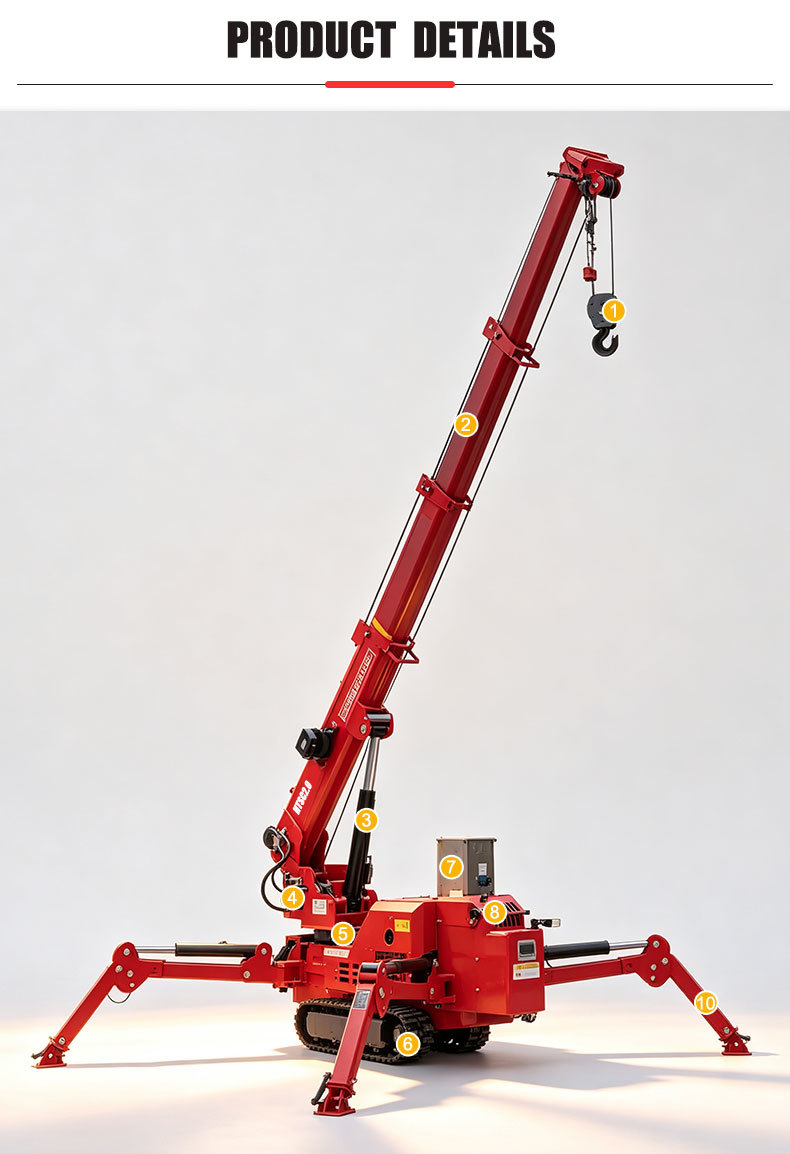

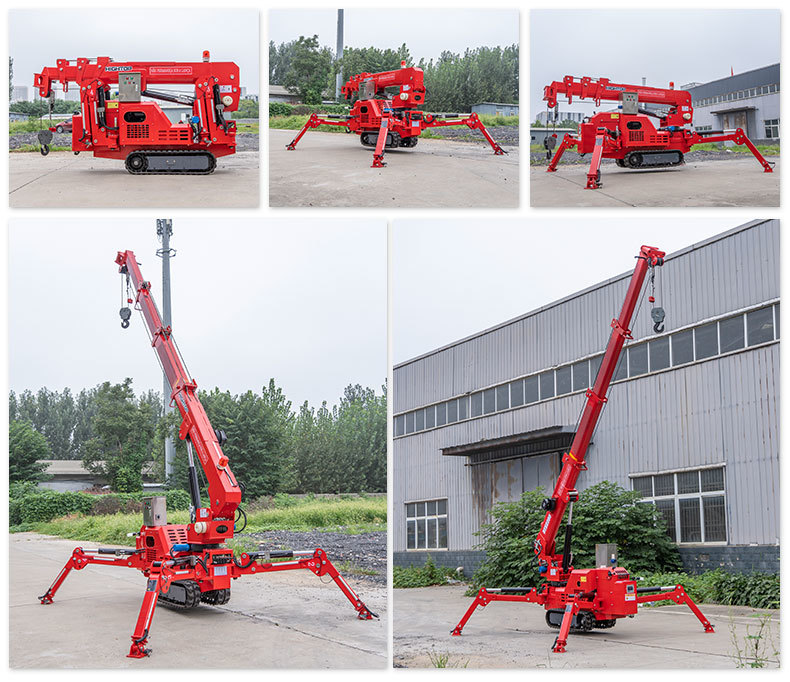

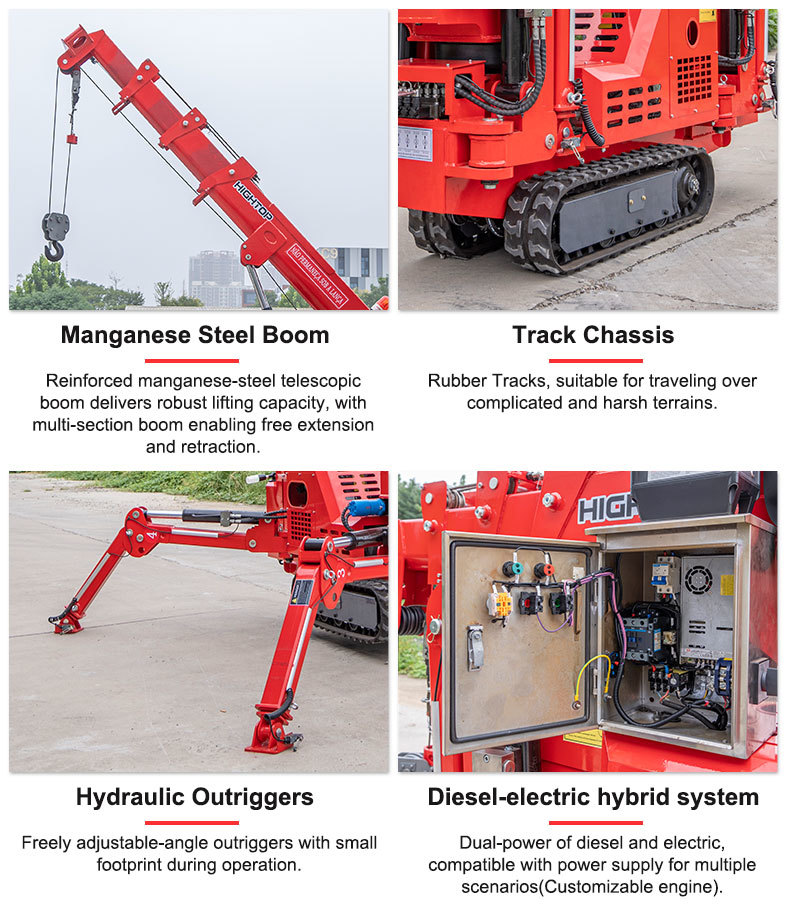

2 tons crawler spider crane front view 2 tons crawler spider crane side view 2 tons crawler spider crane boom detail 2 tons crawler spider crane track system 2 tons crawler spider crane operational view 2 tons crawler spider crane control panel 2 tons crawler spider crane engine compartment 2 tons crawler spider crane outrigger system 2 tons crawler spider crane lifting demonstration 2 tons crawler spider crane compact design 2 tons crawler spider crane telescopic boom 2 tons crawler spider crane workspace application 2 tons crawler spider crane detailed components 2 tons crawler spider crane mobility features 2 tons crawler spider crane complete unit
