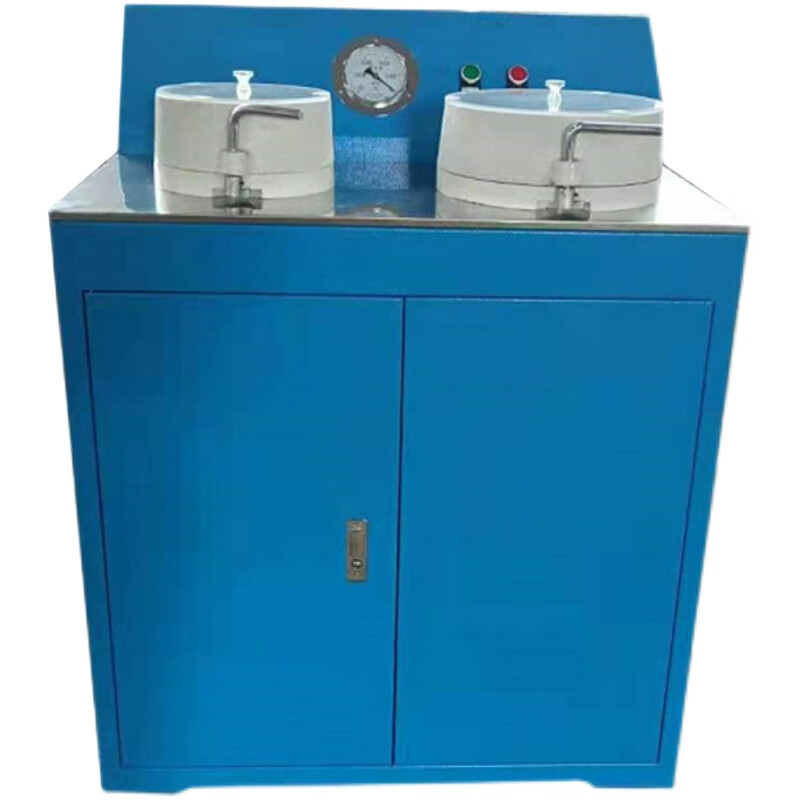

XTLZ-260/200 Laboratory Disc Vacuum Filter Solid-Liquid Separation for Mining Ore

The XTLZ Φ260-200 vacuum filter is an advanced laboratory filtration unit designed for intermittent or continuous filtration, widely used for product dewatering and solid-liquid separation in mineral processing, metallurgy, geology, chemical, building materials, petroleum, papermaking and artificial crystal laboratories as well as small-scale factories.

• Simple structure with convenient operation and maintenance
• Stable performance and high filtration efficiency
• Strong adaptability for hard-to-filter minerals and low-concentration slurries
• Multi-purpose design: dual fixed filter discs can be used together or separately
• Direct-coupled water ring vacuum pump eliminates air-water separation devices
• No shutdown required during operation, filtrate discharged directly by vacuum pump
• Sealed locking device on both filter discs prevents water and air leakage

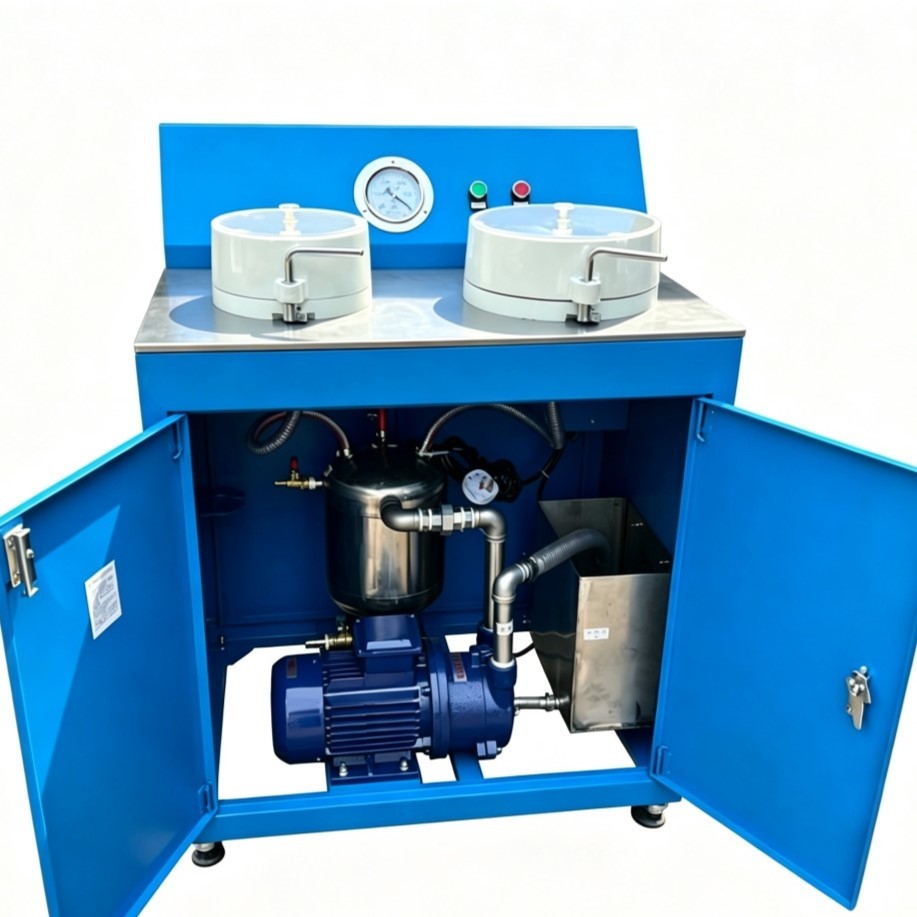

The machine uses the negative pressure generated by a direct-coupled water ring vacuum pump to filter slurries, enabling continuous suction and discharge of filtrate. The 1.5 kW motor drives the pump directly, generating 560-650 mmHg negative pressure at zero altitude. The filtration system composed of fixed large and small filter discs, suction pipes and vacuum gauge is directly connected to the negative pressure zone of the vacuum tank, eliminating air-water separation devices, improving filtration efficiency and reducing machine stops and starts.

Ideal for dewatering and solid-liquid separation in mineral processing, metallurgy, geology, chemical industry, building materials, petroleum, papermaking and artificial crystal laboratories.

Each machine passes strict factory inspection: cabinet surface free of paint defects, vacuum pump runs continuously for one hour with normal vacuum reading and no abnormal noise, suction and discharge piping free of leakage or blockage, filter discs locked without leakage and unblocked filter plates, all fasteners firmly secured, and complete assembly per drawing. Each unit is delivered with user manual, inspection certificate, packing list and product certificate of conformity.

Yes. The XTLZ Φ260-200 supports both intermittent and continuous filtration, with continuous suction and discharge of filtrate without stopping the machine.

The direct-coupled water ring vacuum pump generates 440-650 mmHg negative pressure (560-650 mmHg at zero altitude), with an exhaust capacity of 19.3 m³/h (5.5 L/s).

It is especially effective for hard-to-filter minerals and low-concentration slurries, widely used in mineral processing, metallurgy, geology, chemical, building materials, petroleum, papermaking and artificial crystal laboratories.

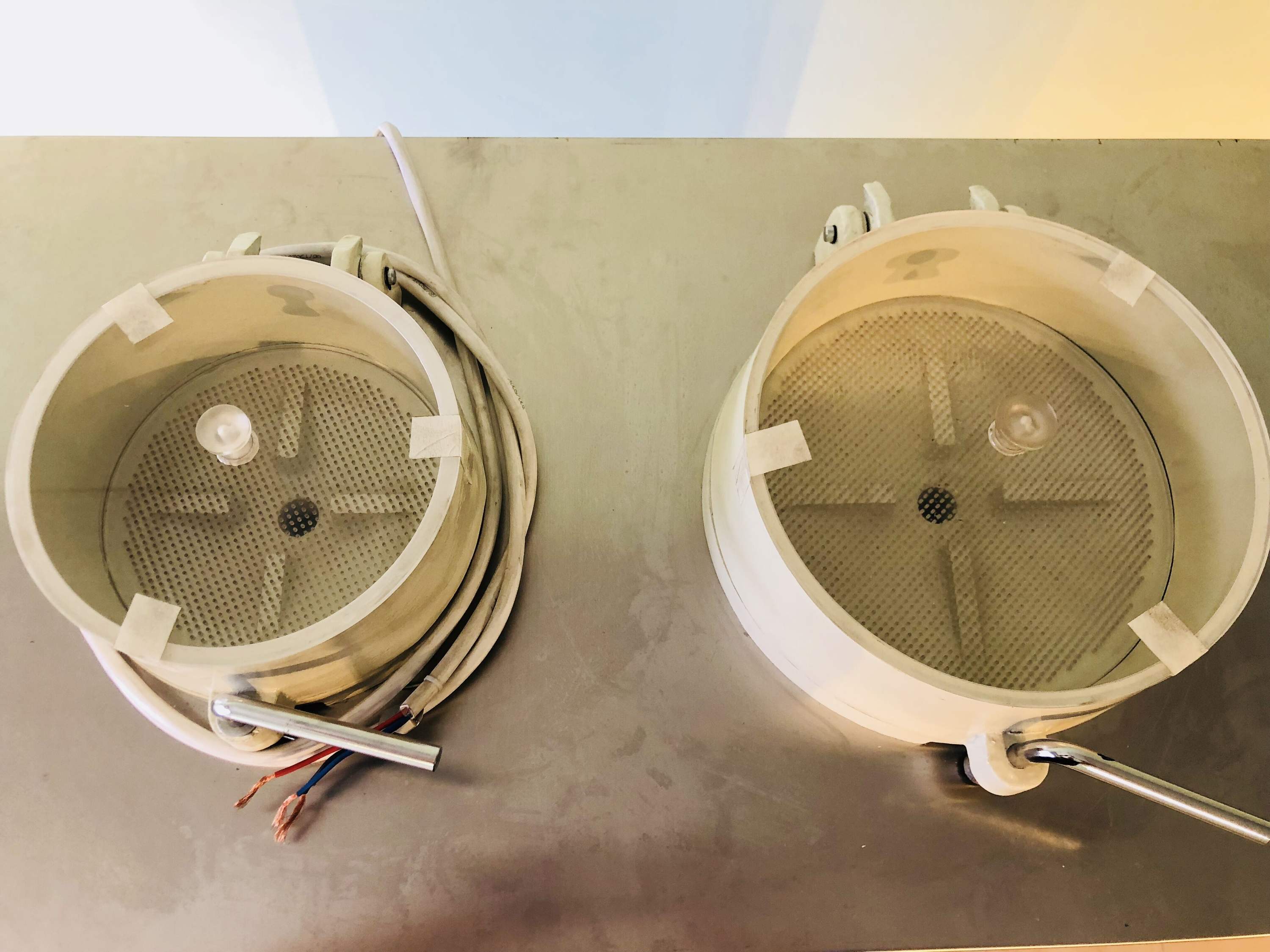

The fixed Φ260mm and Φ200mm discs can be used together or separately for filtering different amounts of material. Both are equipped with sealed locking devices to prevent water and air leakage. An optional external suction head is available for extracting clear water from settled slurry.

Y90L-4 motor, 1.5 kW, 1400 r/min, directly coupled to the vacuum pump. The machine weighs 135 kg with overall dimensions of 650*540*1140 mm.

Product moisture content after filtration is 8-20%.

Each unit is delivered with the user manual, inspection certificate, packing list and product certificate of conformity. Every machine passes strict factory inspection before shipment.
