2L High Efficiency Planetary Ball Mill for Laboratory Mixing and Material Processing

Built around the proven YXQM platform, this laboratory planetary ball mill is configured for laboratories that mainly run mixing and material-processing jobs at the 2 L jar scale. It combines a compact tabletop layout with four-jar parallel operation, so routine tasks such as blending powders, homogenizing suspensions and grinding small batches can be finished quickly without occupying excessive bench space.

The machine accepts dry and wet working modes and can be fitted with vacuum jars when materials must be isolated from air. With a minimum achievable particle size of 0.1 micron, it comfortably covers the gap between analytical sample preparation and small production-scale trials.

• Parallel four-jar loading: four jars on one turntable let operators mix or grind four different batches in a single run.
• High-efficiency 2 L configuration: the 2 L jar class suits typical laboratory mixing and material-processing workloads without oversizing.
• Rapid particle reduction: planetary motion delivers high impact energy that shortens cycle times compared with conventional mills.
• Dry and wet operation: powders, slurries and viscous dispersions can all be processed on the same unit.
• Vacuum jar option: oxidation-sensitive compounds can be handled safely in a sealed, vacuum-protected environment.
• Simple process control: variable-frequency settings for speed, direction and duration make every batch repeatable.

The four jars are fixed on a rotating turntable and at the same time rotate around their own axes. This combined planetary movement creates strong centrifugal fields inside each jar, forcing the grinding balls to impact, crush and shear the charge with far greater force than gravity-driven tumbling mills can produce. Operators can run two or four jars simultaneously according to the workload, and the whole process is monitored through the variable-frequency control panel.

Rotational and revolution speeds vary by model within the series range; exact values should be confirmed with our engineers when selecting a model.

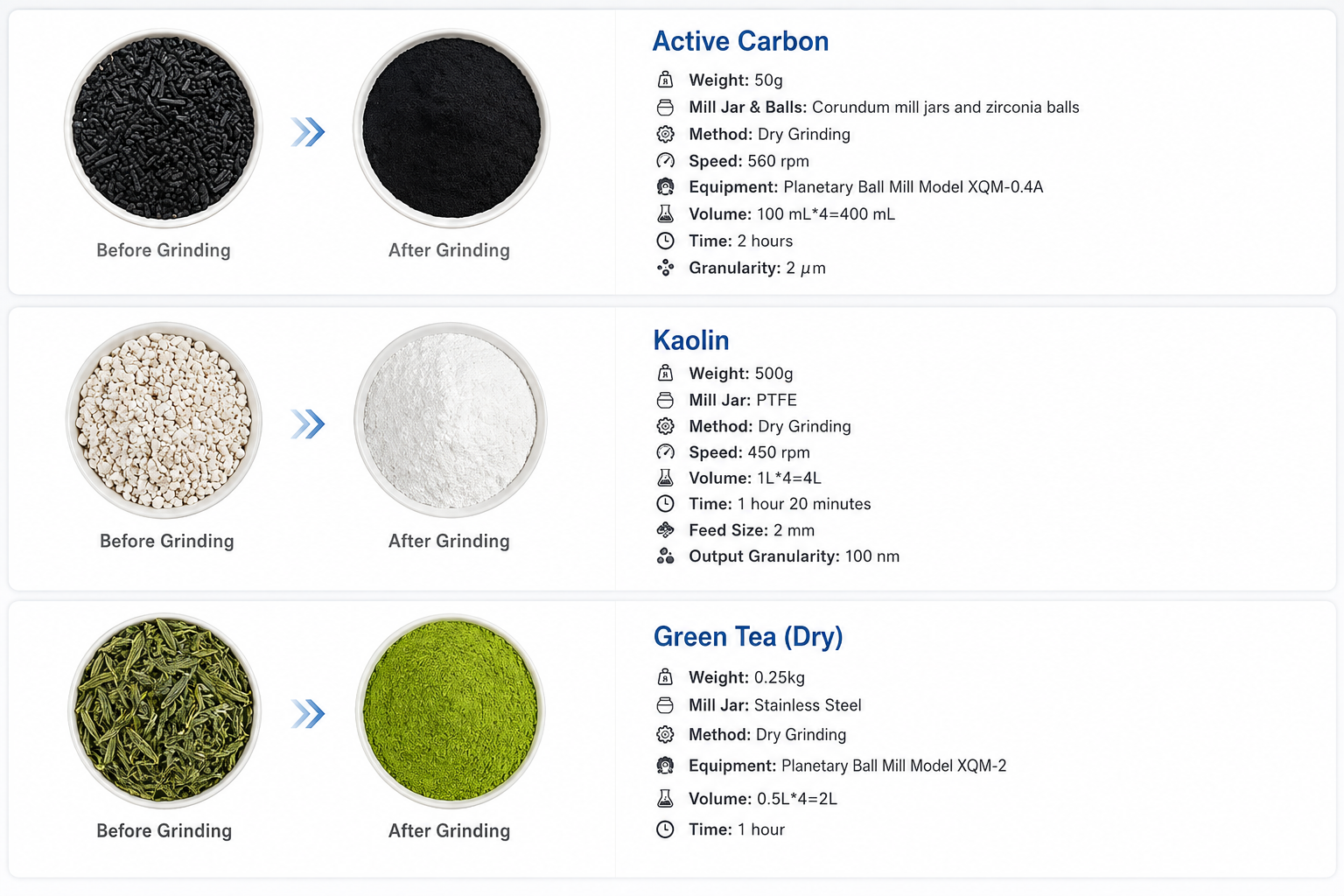

This 2 L planetary ball mill is at home in mining laboratories, metallurgical research centers and electronics material plants, where it is used for ore blending tests, alloy powder mixing, ceramic slurry preparation and general material processing. It also serves universities and testing institutes that need dependable, repeatable small-batch results.

Y&X Beijing Technology Co., Ltd. was established in 2014 in Beijing, China, and integrates scientific research, design, development and manufacturing of laboratory equipment. The company operates under an ISO 9001 quality system and offers factory-direct supply, an MOQ of 1 set, dispatch within 1-3 working days and OEM/ODM customization services.
