DINKONDA GLOBAL Power Plants Special LD-B10-S220 Series Dry-type Transformer -30.0~240.0 ℃, Accuracy Level 0.5. PT100/PTC Intelligent Electronic Temperature Controller

Product Overview
The LD-B10-S220 series dry-type transformer temperature controller is an intelligent temperature controller designed specifically for the safe operation of dry-type transformers. It is designed and manufactured in accordance with the national industry standard JB/T7631-2016<<Electronic Temperature Controllers for Transformers>>.

Equipped with high-performance microcontrollers and other interface circuits, it has the functions of measuring, displaying, and real-time monitoring the temperature of transformer windings and iron cores; It has the functions of automatic start of cooling fan, switching between manual/automatic control of fan, timed start stop control of fan, and remote transmission of fan operation signals; It has the functions of over temperature alarm output, over temperature trip, and iron core alarm output, which can effectively distinguish fault signals such as sensor open circuit, ensuring that the temperature controller will not mistakenly send over temperature alarm or over temperature trip signals when the transformer is stopped or powered on;

Equipped with a "black box" function that stores the measured values of each channel in case of power failure; Equipped with temperature simulation output function; Equipped with RS485 communication and standard 4-20mA analog current output function, it enables remote temperature and status monitoring.

Selection Table

Technical Specifications:
1. Measurement range
-30.0℃～240.0℃

2. Measurement accuracy
Accuracy Level: Level 1 (Temperature Controller Level 0.5, Sensor Level B)

3. Resolution
0.1℃

4. Usage conditions
Environmental temperature: -20 ℃~+55 ℃
Relative humidity:<95% (25 ℃)

5. Power supply voltage:
AC220V(+10％,-15%)

6. Power frequency:
50Hz or 60Hz (± 2Hz)

7. Power consumption of thermostat
≤8W

8. Weight of thermostat
About 2.5kg

9. Implementation standards
Production standard: JB/T7631-2016 "Electronic Temperature Controllers for Transformers"
Certified: ISO9001:2008 International Quality Management System Certification
Test passed: IEC61000-4:2002 international standard
GB/T17626-2008 "Electromagnetic Compatibility Testing and Measurement Techniques" standard

10. Relay contact output
Total capacity of fan contacts: 6A/250VAC (cos φ=0.4)
Control output capacity: 5A/250VAC; 5A/30VDC (resistive)
The Pt100 sensor leads adopt a three wire system

11. Probe size:
Ф4×40mm

12. Temperature controller
Dimensions: 310mm x 220mm x 70mm (height x width x thickness)
Installation dimensions: 283mm x 187mm (height x width)

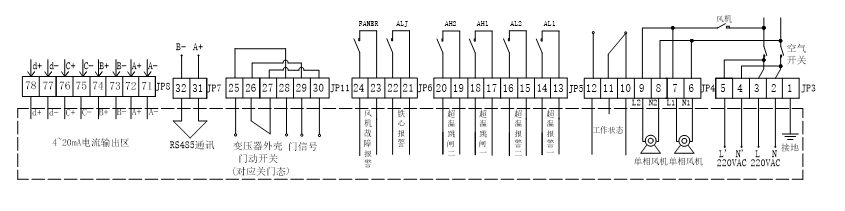

Wiring Diagram

FAQ:
Q1.What about the lead time?
A: 5-7 days for Sample preparing ,15-20 working days for mass production.

Q2. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production.

Q3: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.

Q4: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.

Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
