H-beam three-dimensional five-axis laser production line laser cutting machine

Categories Laser Cutting Machine
Model Number: TY-26025H
Cooling Mode: Water cooling
Cutting speed: 80M/MIN
Certification: CE
Place of Origin: China
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Laser source: Raycus/Max/IPG optional
Maximum acceleration: 1.0G
Supply Ability: 100 sets per month
Product Name: H beam Laser Cutting Machine
Brand Name: TAIYI
Voltage: 380V 50/60HZ
MOQ: 1 Set
Delivery Time: 25-45 work days
Repeating accuracy: ±0.03mm
Price: USD77030—USD120000
Laser power: 12000-60000w
Packaging Details: Export standard packing
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

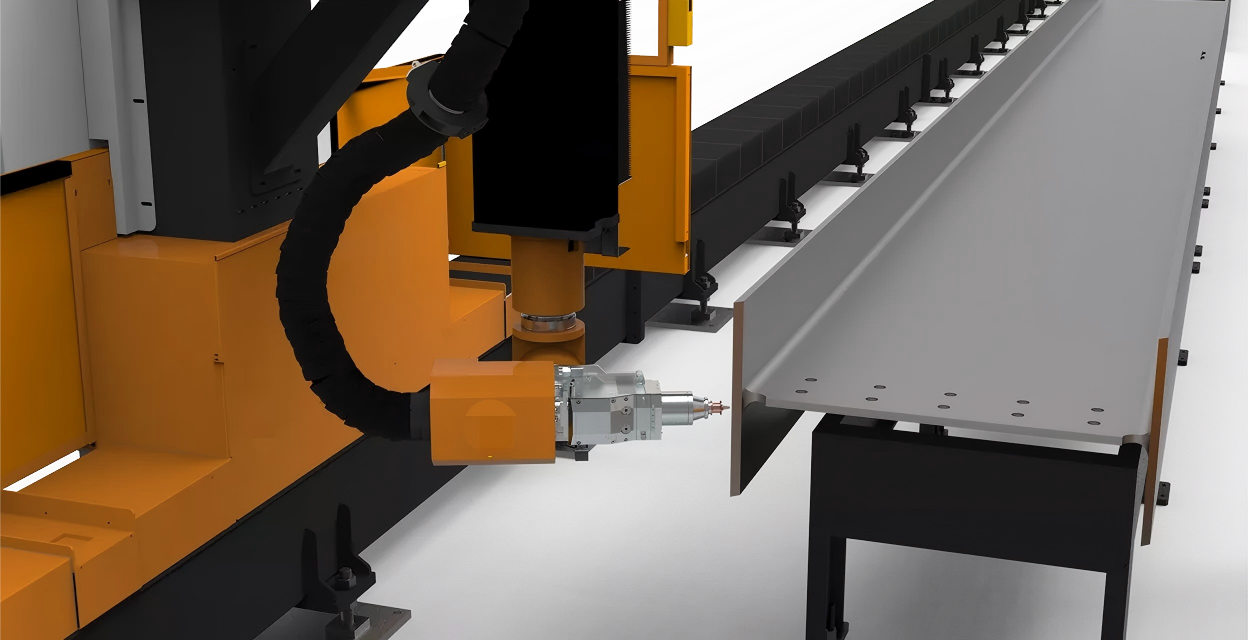

H-beam three-dimensional five-axis laser production line laser cutting machine

  • Model Features
    1.The exclusive patented gantry structure design delivers industry-leading loading speed with minimal load. The dual-drive gantry system ensures safety, stability, high precision, and zero performance degradation, making it ideal for continuous 24-hour operation.
    2 . Independent development of 3 D five-axis linkage technology, achieving ultra-high efficiency;
    3. The open structure features a dual-station design with alternating operations between the two stations, significantly reducing material handling time and achieving a processing efficiency approximately 15 times higher than manual operation.
    4 . The system supports contour detection and automatically adjusts for workpiece deformation.
    5.The tooling positioning and centering device effectively controls the impact of material deformation.
    6. High-precision floating shaft design with rapid response and collision prevention capabilities;

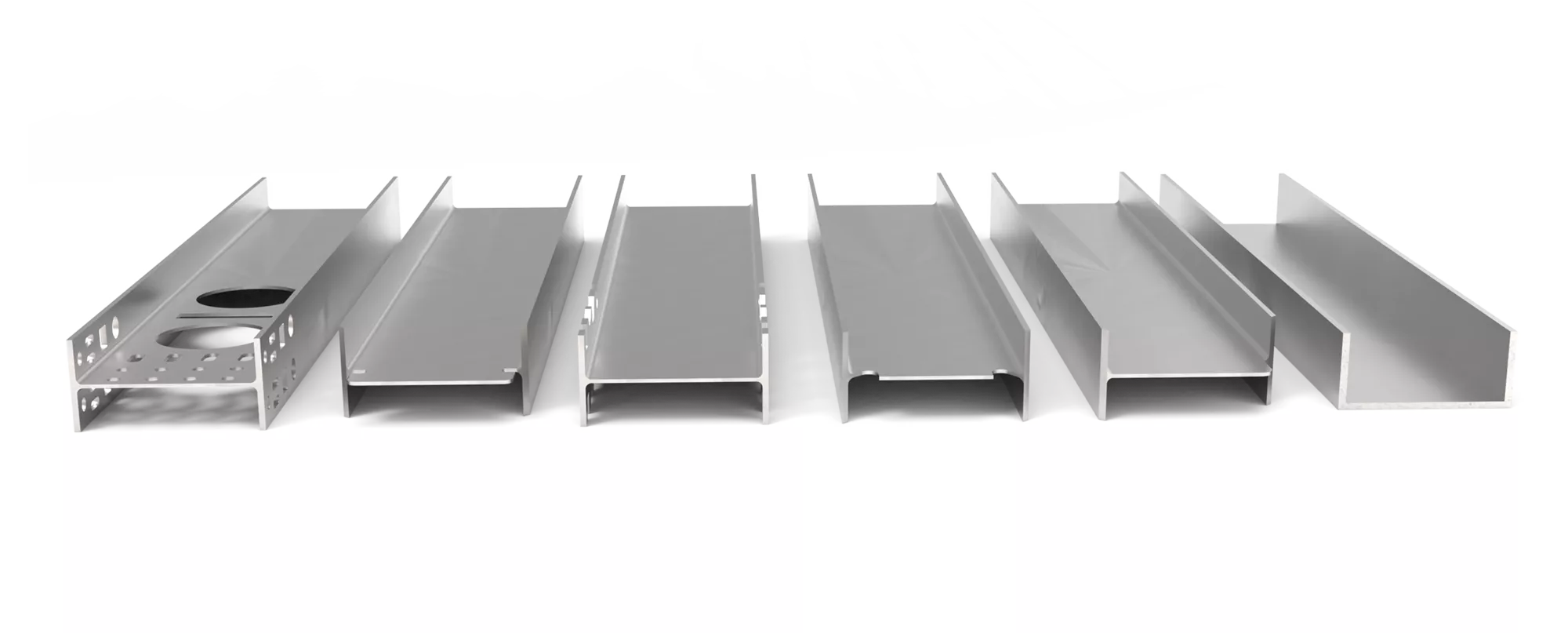

    7 . For H-beams of various specifications (web thickness 100mm–1200mm) , cutting, drilling, beveling, marking, and line drawing can be completed in a single operation without transportation.
    8.The process library includes precision hole cutting techniques;
    9. Supports various butt-joint groove cutting processes; 10 . Supports cutting TEKLA steel structure 3 D modeling data files; 11. The equipment processing statistics feature allows real-time monitoring of processing status on remote terminals.
  • Applicable Industry
    Suitable for metal materials including stainless steel, carbon steel, alloy steel, silicon steel, galvanized steel plate, nickel-titanium alloy, chromium-nickel-iron alloy, and titanium alloy. Widely used in various manufacturing industries such as steel structures, bridge construction, shipbuilding, floating docks, and metal processing services.
Order numberProjectParameter
1Processing size (length x width)26000mmX2500mm
2X-axis stroke≧27000mm
3Y-axis stroke≧2500mm
4Z-axis stroke1000mm
5Maximum cutting width of H-beam (web)1200mm
6Maximum cutting height of H-beam (flange plate)500mm
7Maximum cutting thicknessDirect cut ≤30 mm (flange groove ≤20 mm)
8Maximum cutting length26000mm
9Maximum cutting plate width2500mm
10X/Y axis positioning accuracy±0.05mm/m
11X/Y axis repositioning accuracy±0.03mm/m
12X-Y maximum speed50m/min
13Accelerated speed0.5G
14Number of phases3
15Power Specification380V/50HZ
16Overall Power Supply Protection LevelIP54
