Versatile 1+5 Cradle Planetary Strander for Control & Power Cables

Versatile 1+5 Cradle Planetary Strander for Control & Power Cables

Application

Description:​ Streamline your production with our combined laying-up and taping solution. This cradle-type machine integrates non-metallic taping heads directly after the assembling die, allowing for simultaneous cabling and cushioning tape/lapping tape application—reducing handling and improving production efficiency.

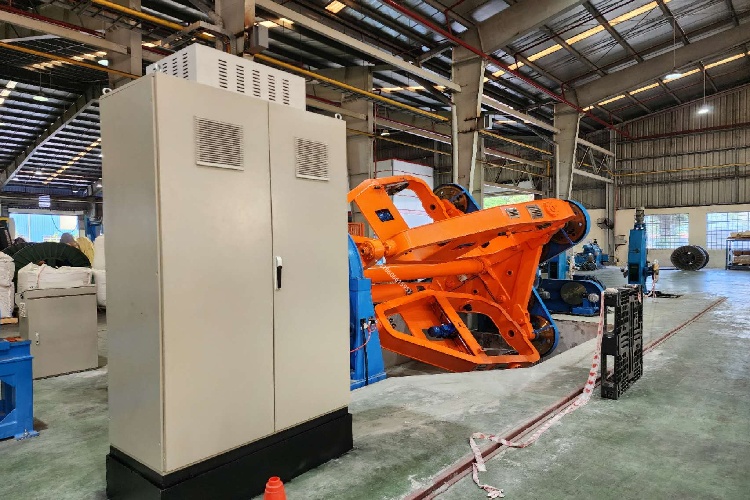

Cradle type cabling machine is an important equipment for wire and cable cable forming. It is mainly used for cabling 3 to 6-core insulated wires, which can be used in round cables with back-twisting, and stranding fan-shaped cables without back-twisting. It is also can be used for cabling LV&MV power cables, control cables, mining cables, and other large-section cables. It is can be used for non-metal and metal tape wrapping, steel tape armoring and filling with this machine.
Our company has many years of experience in research and development of cradle type cabling machine, fully integrated the cable production process of China first-class cable manufacturers. We can provide 1000, 1250, 1600, 2000 and other models of cradle type cabling machine, and can achieve various cabling types such as 1 + 3, 1 + 1 + 3, 1 + 4, 2 + 3, etc.,which effectively broaden the production range of products. It is the best equipment for mass, continuous and large-section cables.

5. Why it beats the Drum Twister for your job

You asked about Drum Twisters previously. Here is why the Cradle​ is better for your specific 4+1 insulated core job:

Insulation Protection:​ The Drum Twister provides 0% back-twist. For large insulated cores, this can cause the insulation to "rope" or twist. The Cradle’s 100% back-twist keeps the cores flat and round.

Speed vs. Precision:​ Drum Twisters are faster but rougher. Cradle machines are slower but much gentler—ideal for pre-insulated wires where surface quality matters.

Cost:​ A Cradle Laying-Up Machine is significantly less expensive than a Drum Twister of equivalent capacity.

6. RFQ Clause for your Supplier

When asking for a quote, use this precise English description to ensure you get the right machine:

"We require a Cradle-Type Laying-Up Machine (1+4 configuration) with the following specifications:

Bobbin Size:​ PN800 or PN1000.

Application:​ Laying up 5 insulated cores (PVC/XLPE).

Max Core Diameter:​ 9.6 mm.

Back-Twist:​ 100% adjustable on all planetary positions.

Tension Control:​ Independent, closed-loop dancer tension per position (0–50N range). Must allow asymmetric settings (e.g., 30N for 7.4mm cores, 18N for 5.19mm ground wire).

Center Payoff:​ Stationary, with independent tension control."

Beyde Trading Co.,Ltd.(Know as Beyde) is the representative office for cable stranding machine factory(Built in 1995)in Hebei, China. BEYDE was set up to meet international business for those factories. One hour and a half hours from Tianjin Port, China, BEYDE keeps superior quality and competitive offers for global valued customers.

BEYDE Trading Co.,Ltd. is a manufacturer engaged in producing cable machines many years. The main products in our company including wire drawing equipments, cable stranding machine, strandingmachinery, plastics extruder and cable Reel drum. We always insists on using the best material to make the machine, so our machines are durable than general machine. We have a lot of customers who use our machine over than 20 years and still using now. Besides, We are makers by ourselves, not machine traders. Therefore, We sell to customers at a low price. We can design any types machine according to the demand of customers. We offer professional technique and services to our customers. Service overseas is provided by our company. We look forward to become your most valuable partner in the future. Let us create a wonderful future!

In 2019, due to the continuous increase of orders, the original production workshop could no longer meet the production requirements. Therefore, the management

of the company decided to repurchase a new piece of land of 10,000 square meters, and built the second processing plant in half a year. branch, and recruited 50

skilled workers, led by professional team personnel, and achieved good benefits, greatly relieving the pressure of production.

Beyde company is used for international advanced cable and wire processing equipment. In China, we are the only real manufacturers with independent processing and design capabilities.

The company produces 200-300 cable machines per year, especially pipe stranding machines, accounting for 60% of the Chinese market.
