Aluminium Foil Container Making Machine 80T H Frame Automatic Stacking & Counting System Integrated

Aluminium Foil Container Making Machine 80T H Frame Automatic Stacking & Counting System Integrated
Machine Overview
The 80T H frame aluminum foil container making machine integrates an automatic stacking and counting system to deliver a complete, labor-saving production solution for aluminium food container manufacturers. This aluminium foil container forming machine combines the rigidity of an H-frame structure with a fully automated post-forming handling system that collects, stacks, and counts finished containers without manual intervention.
Operating at 35 to 70 strokes per minute, the machine's automatic counting function provides real-time production tracking, while the stacking system neatly organises finished containers for easy packaging. The solid tabletop design ensures stronger stability during high-speed stamping, and the servo motor-controlled feeding delivers precision material transport.
With the 80-ton press capacity, this aluminium container production equipment handles a wide range of container sizes - from standard takeaway trays to custom non-standard containers - while significantly reducing labour costs through its integrated stacking and counting automation.
Technical Specifications
ParameterSpecification
ModelAluminium Foil Container Making Machine
Frame TypeH Frame
Press Capacity80 Tons
Stamping Speed35-70 Strokes/Min
Stacking SystemAutomatic
Counting SystemAutomatic with Photoelectric Sensor
Installed Power26 KW
PLC ControlMitsubishi
Main MotorABB
Feeding SystemServo Motor-Controlled with Dual-Roll Feeding
Total Weight14500 KG
CertificationsCE, ISO9001, ISO14001
Factory Experience15+ Years
Key Features
  • Automatic Stacking System - Finished containers are automatically collected and stacked for easy packaging, reducing manual labour
  • Automatic Counting Function - Real-time production tracking with precise batch management and inventory control
  • H Frame Structure - High-rigidity frame absorbs stamping impact for long-term precision and stability
  • Solid Tabletop Design - One-piece heavy-duty construction for stronger stability during operation
  • 35-70 Strokes/Min Production Speed - High-speed output for maximum production efficiency
Frequently Asked Questions
How does the automatic stacking system work?
The automatic stacking system receives finished containers directly from the stamping station via a conveyor. Containers are guided into the stacking unit, where they are neatly arranged into stacks according to your preset stack height. The system can be adjusted via the touchscreen to accommodate different container sizes and stacking configurations. This aluminium container making machine with auto stacking significantly reduces manual handling and improves packaging efficiency.
Can the stacking system handle different container sizes?
Yes. The stacking system is fully adjustable via the touchscreen to accommodate different container diameters, depths, and shapes. For significant size changes, simple mechanical adjustments may be required, but the system is designed for quick changeover between different product runs.
What types of aluminum foil container machines do you produce?
We mainly produce T63, T80 and T130. Different types meet the needs of customers in different markets.
What is the working speed of the machine?
Working speed: 35-68 strokes/min, average speed: 50 strokes/min. It can produce 9,000-12,000 pieces per hour.
Do you only sell machines?
No. We also supply consumables and packaging materials including aluminum foil coils, stamping oil, tape, and cartons for finished products. Everything you need to start production from one supplier.
Factory Photos

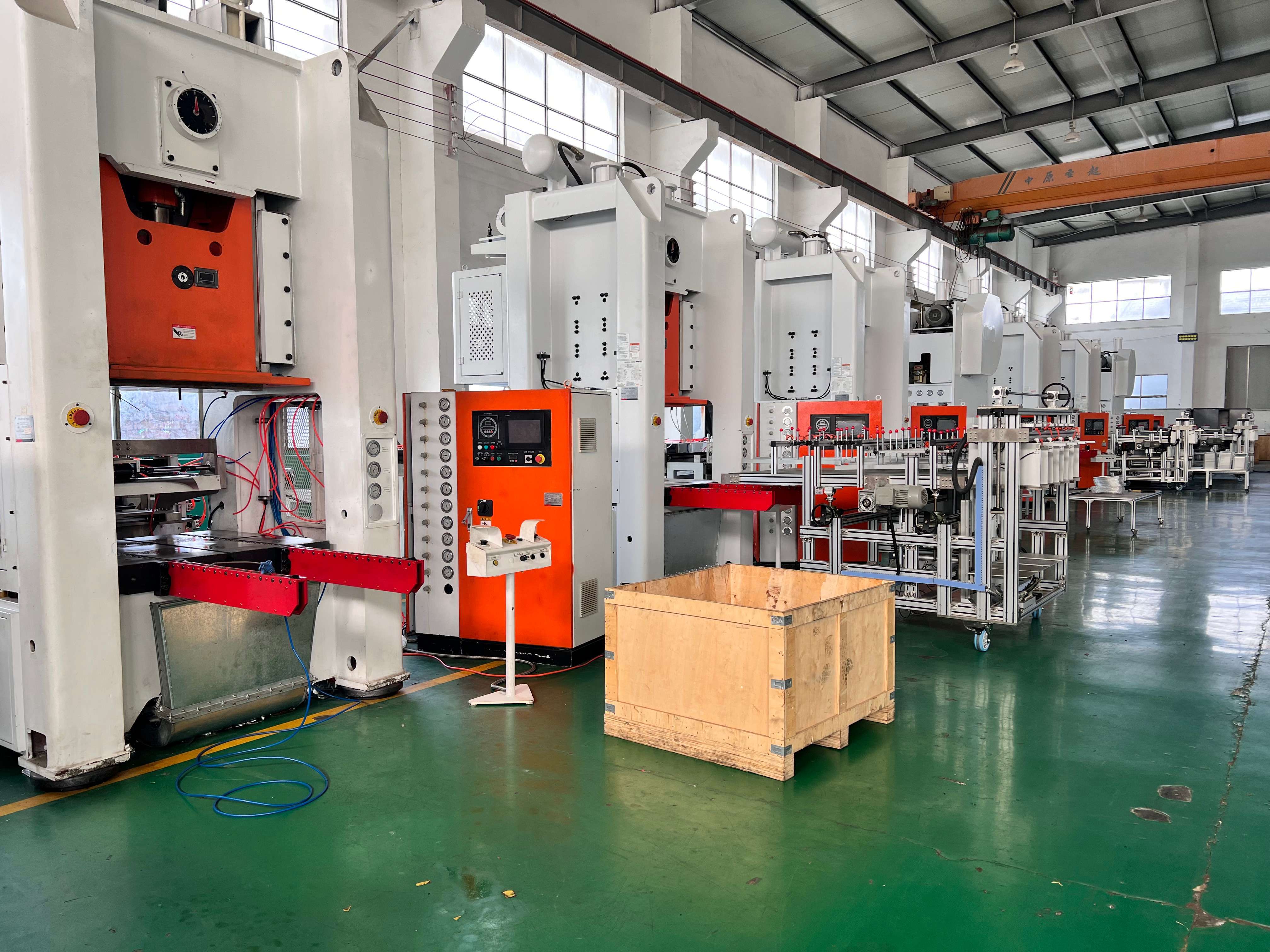

Factory interior showing aluminum foil container production line Manufacturing facility with multiple container making machines Production area with quality control station Factory assembly line for container manufacturing equipment Industrial manufacturing plant overview Production facility with finished container storage
Machine Display

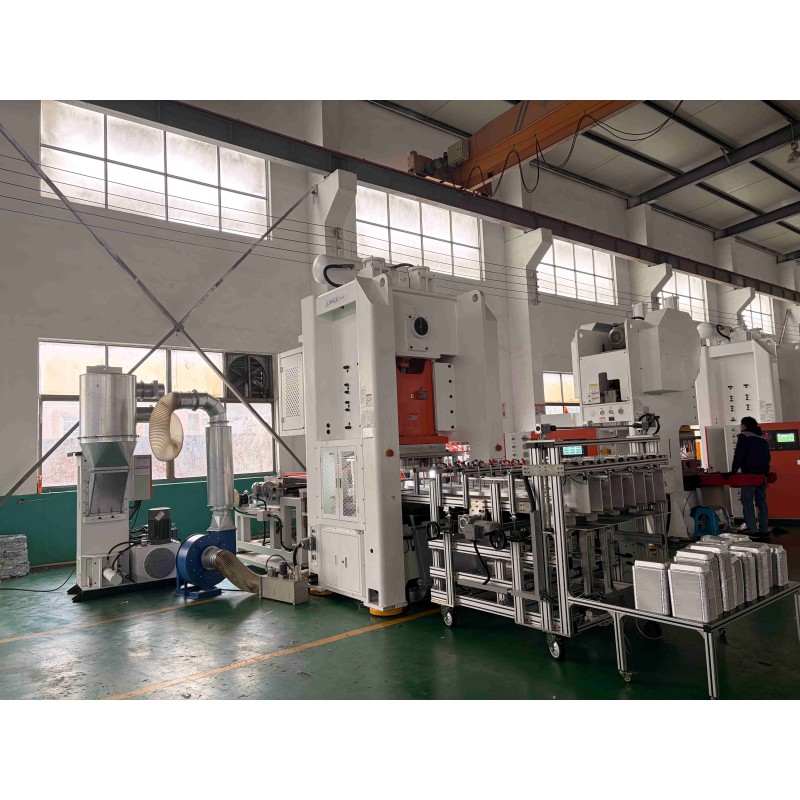

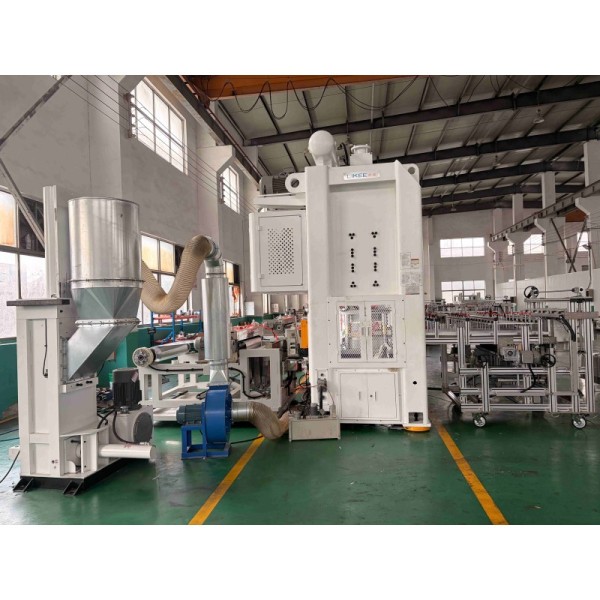

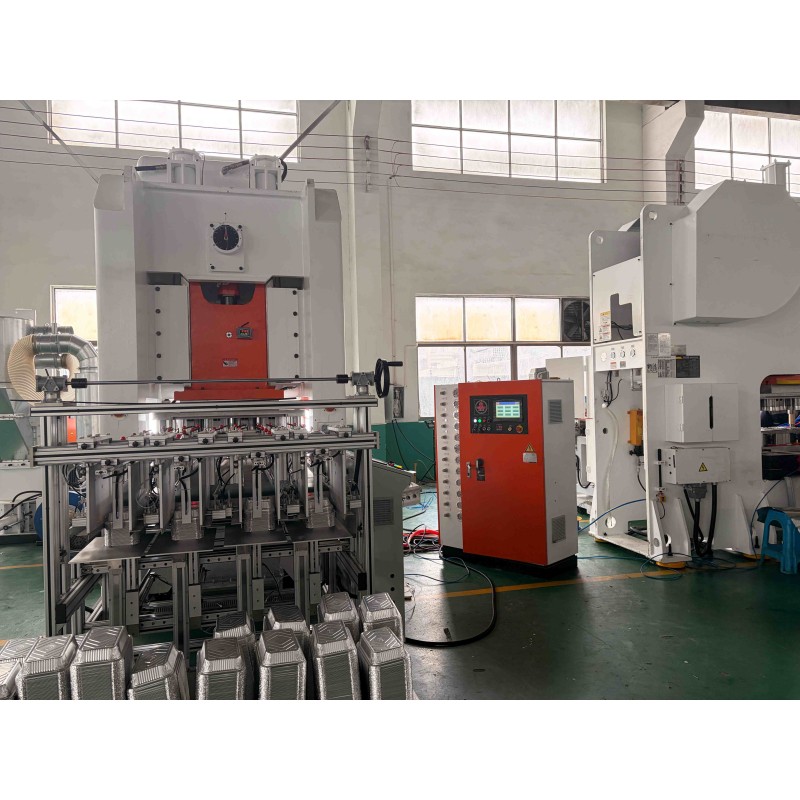

80T H Frame aluminum foil container making machine front view Close-up of machine control panel and interface Side view showing H-frame structure and components Automatic stacking system detail Feeding mechanism and servo motor components Complete machine setup in operational environment
Machine Operation
