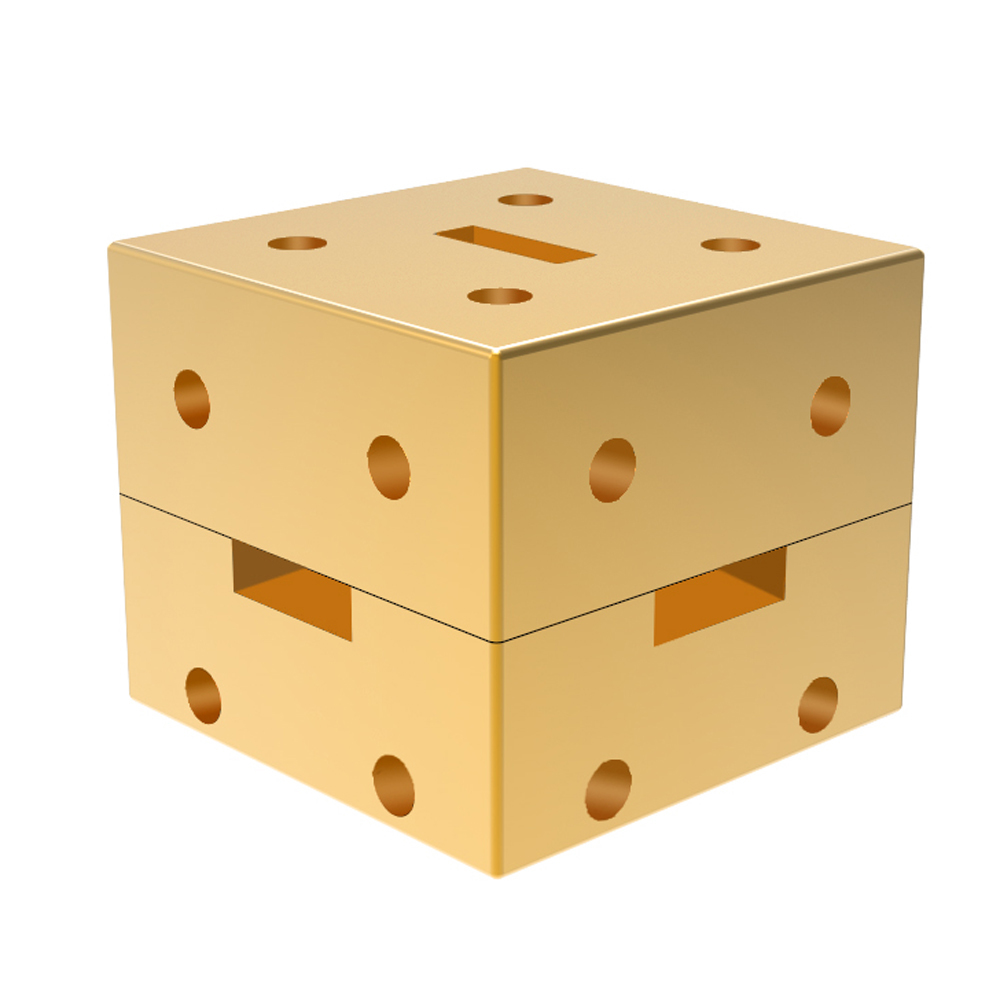

22-33GHz WR-34 WAVEGUIDE MAGIC T

22-33GHz WR-34 WAVEGUIDE MAGIC T

• Stable performance over temperature and vibration
• Enables monopulse radar tracking (sum/delta channels)
• Passive device – no external power required

1. Power combiners and dividers –
   A WAVEGUIDE MAGIC T equally splits a high‑power signal into two paths, or combines two signals into one.

2. alanced mixers –
   A WAVEGUIDE MAGIC T combines the local oscillator (LO) signal and the RF signal in an image‑rejection mixer architecture.

3. Phase comparators and detectors –
   A WAVEGUIDE MAGIC T compares the phase difference between two input signals at the collinear ports.

4. Connect source to H‑arm –
   For in‑phase power division, feed the input signal into the H‑arm of the WAVEGUIDE MAGIC T.

5. Use collinear arms as outputs –
   The two collinear arms of a WAVEGUIDE MAGIC T serve as balanced outputs, each receiving half the input power.
