Thermal Conductive Pad Silicone Thermal Interface Material For Enhancing Heat Transfer Efficiency In GPU CPU Components

Categories Silicone Thermal Pad
Model Number: TIF100-20-05E
Hardness: 65/35 shore 00
Packaging Details: 24*13*12cm cartons
Payment Terms: T/T
Construction: Ceramic filled silicone elastomer
Place of Origin: China
Color: Blue
MOQ: 1000 pcs
Delivery Time: 3-8 work days
Thermal conductivity: 2.0 W/mK
Sample: Free
Price: 0.1-10 USD/PCS
Application: GPU CPU Components
Certification: UL
Keywords: Thermal Conductive Pad
Supply Ability: 100000pcs/month
Thickness: 0.010~0.200"(0.25~5.0mm)
Brand Name: Ziitek
Products name: Thermal Conductive Pad Silicone Thermal Interface Material For Enhancing Heat Transfer Efficiency In GPU CPU Components
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Thermal Conductive Pad Silicone Thermal Interface Material For Enhancing Heat Transfer Efficiency In GPU CPU Components

Thermal Conductive Pad Silicone Thermal Interface Material For Enhancing Heat Transfer Efficiency In GPU CPU Components
Product Overview

TIF®100-20-05E Series is a well-balanced, general-purpose thermal pad offering good thermal conductivity and moderate hardness. This balanced design provides excellent surface conformity and superior ease of use, effectively transferring heat while providing basic physical protection for a wide range of electronic components.

Key Features
  • Good thermal conductivity
  • Moldability for complex parts
  • Soft and compressible for low stress applications
  • Naturally tacky needing no further adhesive coating
  • Available in various thicknesses
Applications
  • Home appliance industry
  • Power module
  • Wearable devices
  • Solar photovoltaic panels
  • LED lighting fixtures
  • Routers
  • Medical devices
  • Audio electronic products
  • Unmanned aerial vehicles (UAV)
  • Photovoltaic systems
  • Signal communication
  • New energy vehicles
  • Motherboard chip
  • Radiator
  • AI Processors AI Servers
Technical Specifications of TIF100-20-05E Series
PropertyValueTest Method
ColorBlueVisual
ConstructionCeramic filled silicone elastomer******
Density (g/cm³)2.5ASTM D792
Thickness Range (inch/mm)0.010~0.020 (0.25~0.50)
0.030~0.200 (0.75~5.00)
ASTM D374
Hardness (Shore 00)65 | 35ASTM 2240
Continuous Use Temp-40 to 200℃***
Breakdown Voltage (V/mm)≥5500ASTM D149
Dielectric Constant @1MHz4.5ASTM D150
Volume Resistivity>1.0×10¹² Ohm-meterASTM D257
Thermal Conductivity (W/m-K)2.0ASTM D5470
ISO22007
Fire ratingV-0UL 94 (E331100)
Product Specifications

Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)

Standard Size: 16"×16" (406 mm×406 mm)

Component Codes:

Reinforcement Fabric: FG (Fiberglass)
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening)
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive)

The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.

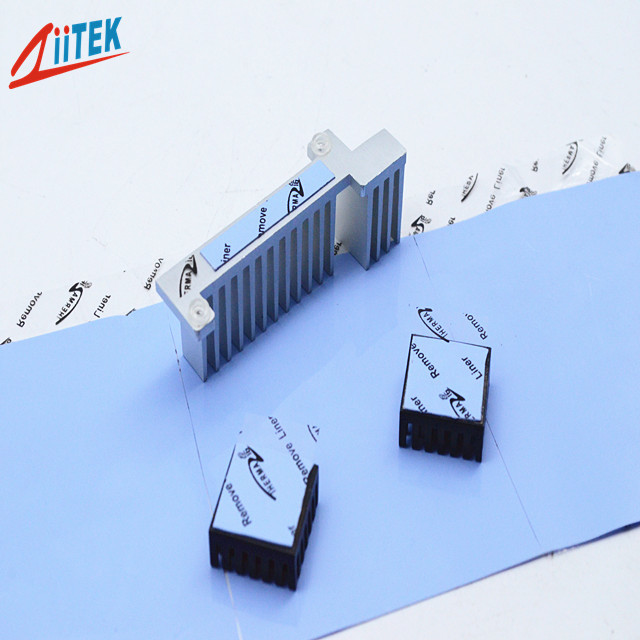

Thermal Conductive Pad product image showing blue silicone material
Company Advantages
  • Our value message is "Do it right the First time, total quality control"
  • Our core competency is thermal conductive interface materials
  • Competitive advantage products
  • Confidentiality agreement and Business Secret Contract
  • Free sample offer
  • Quality assurance contract
Frequently Asked Questions
Q: Do you accept custom orders?
A: Yes, we welcome custom orders. Our customization options include dimensions, shape, color, and coating on one or both sides with adhesive or fiberglass. To place a custom order, please provide a drawing or detailed specifications.
Q: How do I request customized samples?
A: To request samples, you can leave us a message on our website, or contact us via email or phone.
Q: What's the thermal conductivity test method given on the data sheet?
A: All data in the sheet are actual tested results. Hot Disk and ASTM D5470 methods are utilized to test thermal conductivity.
