Servo Driven Saliva Ejectors Automatic Counting Packaging Machine 100 Pieces Central Back BagPack

Categories Toothpick Packing Machine
Model Number: SN-260
After Warranty Service: 1 Year For Main Electric Parts
Payment Terms: T/T
Applicable industries: Capped Saliva Ejector Medium Pack , can link with the capping machine
Sealing Type: Central Bag
Supply Ability: 50 set /month
Usages: Customized Capped Saliva Ejectors
Brand Name: Sayok
Packaging Details: Exported wooden case
MOQ: 1 set
Delivery Time: 20-25 working days
After-sales service: Video technical support
Certification: CE
Place of Origin: China
Price: EXW US$6000 -7800/set
Packing film: blank or printed plastic / Paper heatable film
Key Selling Points: Servo Driven
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Servo Driven Saliva Ejectors Automatic Counting Packaging Machine 100 Pieces Central Back BagPack

Servo Driven Saliva Ejectors Automatic Counting Packaging Machine 100 Pieces Central Back Bag Pack


This automatic counting and packaging machine is specially developed for disposable dental saliva ejectors (dental suction tubes), a common dental consumable in stomatological clinics. It adopts special designed bin automatic feeding, high-precision photoelectric counting sensor and PLC+HMI integrated control system, which can automatically complete product sorting, fixed-quantity counting, bag making, heat sealing, date coding and finished product cutting in one continuous workflow.
The whole machine frame and contact parts with products are made of SUS304 stainless steel, complying with medical hygiene standards. It features ultra-high counting accuracy (error rate ≤0.1%), stable running speed, flexible adjustment of single-bag packaging quantity and pouch length, and is equipped with material shortage alarm, wrong counting protection and automatic stop functions to avoid empty bags and missing packages. Widely applied in dental disposable supplies factories for mass standardized packaging of saliva ejectors, effectively replacing manual counting, greatly improving production efficiency and reducing labor cost and counting errors.

Core Working Process

  1. Manual bulk feeding of saliva ejectors into the sepcial customized vibrating sorting hopper for automatic alignment and single-row separation;
  2. Adopts high sensitive sensors to detect the products, ensure the precisely counting for each packs;
  3. Independent temperature controller to comapatible for different packaging film quality, such as OPP, PE/PET or paper film; And there are color mark sensor, which is flexible for blank and printed packing film packing.
  4. Fitting suitable packing machine model according to required packing qty.;
  5. Optional to link with the capping machine for a full automatic packing line;

Key Advantages & Technical Features

  • Intelligent Control: PLC + touch screen HMI, parameter digital setting, multilingual operation interface;
  • High Precision Counting: Photoelectric sensing counting module, counting accuracy up to 99.9%;
  • Precise Tracking: Photoelectric eye color mark tracing ensures stable bag length cutting, no film waste;
  • Reliable Sealing: Independent PID constant temperature heating system, flat, tight and leak-proof sealing edge, moisture-proof and dust-proof;
  • Safety & Hygiene: Main contact parts adopt 304 stainless steel, conform to food sanitation standards, easy to disassemble and clean;
  • Fault Protection: Auto stop for jammed feeding, empty bag skip counting, overload protection for motors;

Specifications:


Model

SN-260A

Packing Speed

1-15 bags/min

Packing Size

Depends on product size

Power Supply220 50/60Hz
Power750w/1.2kw
Machine size1300*800*1300mm/2500*880*1300mm
Feeder1100*900*1400mm/2600*980*1400mm
Machine WeghtApprox 300kg

Machine Details:


1. Packaging machine appearance

It can realize the one-step process of material release, packaging and sealing and cutting, compact design with stainless steel appearance. , very easy for operateing and high efficiency. Stainless steel apprearance, machine can be used at long life.

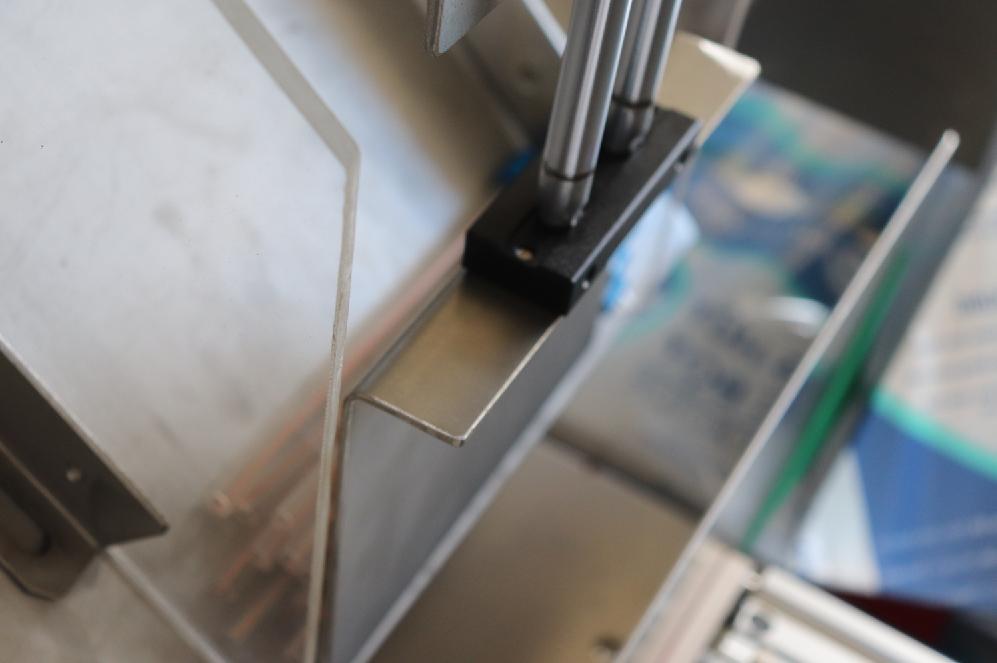

2. Customized Feeding Stops

Special designed feeding stops, ensure the counting is precisely and feeding for packing neatly..

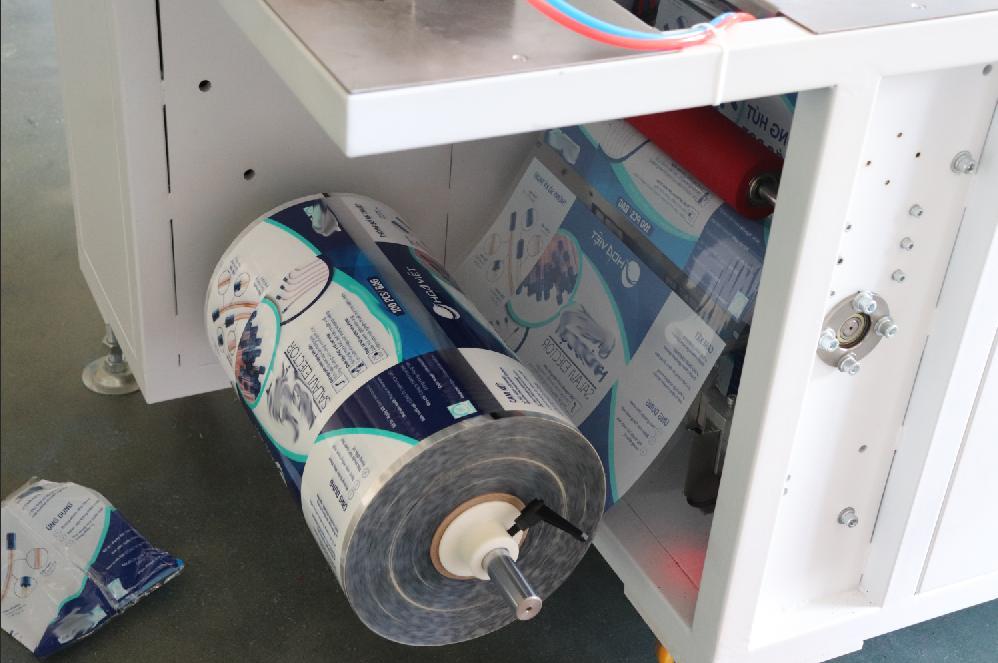

3. Large film roll holder


Large film roll holder to make sure 50-100 pieces medium pack is workable. And there are color mark sensor, photoelectric eye-mark registration for accurate positioning and cutting.

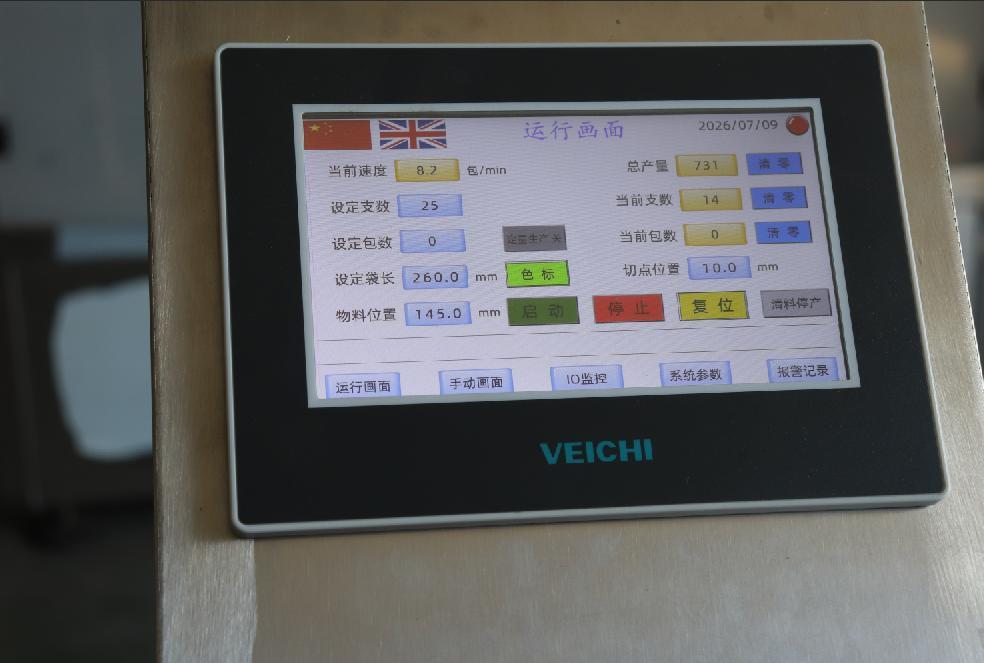

3. Bilanguage HMI Screen


Screen is bilingual large HMI touch panel, can shift to English or Chinese as needed freely. And can set the data easy from the screen, which is very easy to operate and maintain.


4.Packaging For Shipment


we adopt wooden case as package type. It's suitable for long-distance transport. Before wooden case packing, will use the stretch film to wrapping the whole machine to ensure of firmly packing in the wooden case whichout moving and crushing.

5. All Feeding and Counting Device are special customized.

All grooves and stopers are customized according to the actual products, make sure the products can be feeding and counting smoothly.

6. Packing neat and good looking, it is with tightly 3 side sealing, can be blank and printing plastic film, very snug pack without any film wasting.
