Full Automatic Pipe Belling Machine for Plastic Pipes with 20mm - 630mm Belling Diameter Range and Rectangular R U Type Socket Forming

Categories Pipe Belling Machine
Model Number: LB-51/105
Expansion Shape: U shape, R shape, Rectangle shape
Payment Terms: L/C,T/T
Bellingdiameterrange: 20mm - 630mm
Price: Negotiable(USD EUR)
Screw Number: Two
Supply Ability: 15 SETS PER MONTH
Machineweight: 500kg - 1500kg
Brand Name: LB
Motor Power: 37KW
MOQ: 1 SET
Delivery Time: 45 WORKING DAYS
Capacity: 120~800kg/h
Power: 3kw
Packaging Details: NORMAL PACKAGE
Ipe Used For: plastic corrugate pipe machine
Certification: CE ISO
Processed Pipe: PVC pipe
Place of Origin: ZHANGJIAGANG
Pipediameterrange: 20mm - 630mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Full Automatic Pipe Belling Machine for Plastic Pipes with 20mm - 630mm Belling Diameter Range and Rectangular R U Type Socket Forming

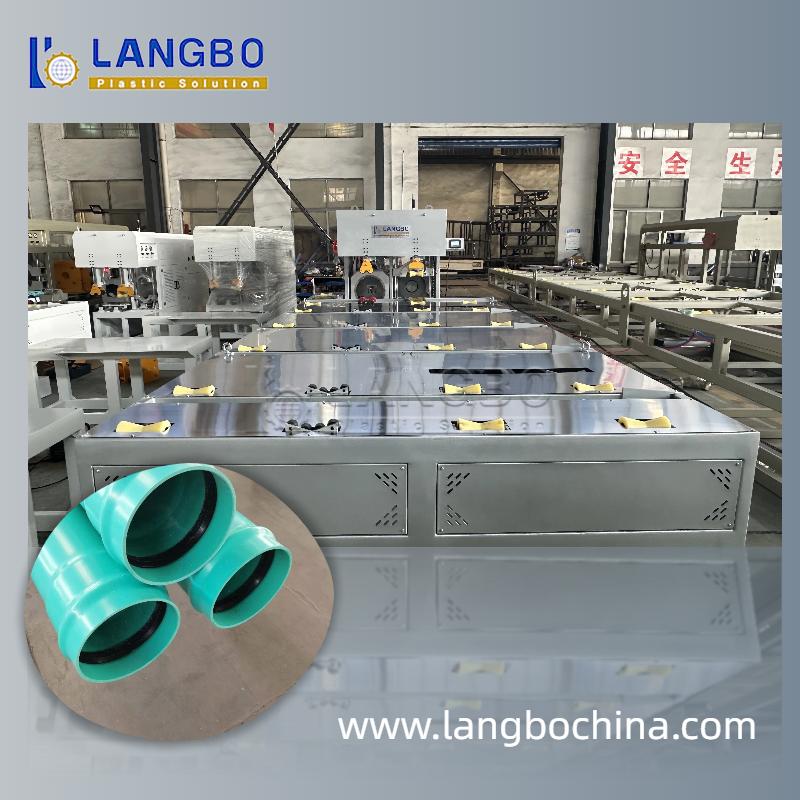

Full Automatic Pipe Belling Machine For Plastic Pipes
The SGK Series Full Automatic Plastic Pipe Belling Machine features motor control bracket height adjustment for easy operation. This advanced system is configured with material-receiving pulling device and related process interfaces that integrate seamlessly with the main machine, enabling both collaborative and standalone operation.
Key Features
  • Horizontal pipe movement ensures stable, accurate actions that prevent pipe damage

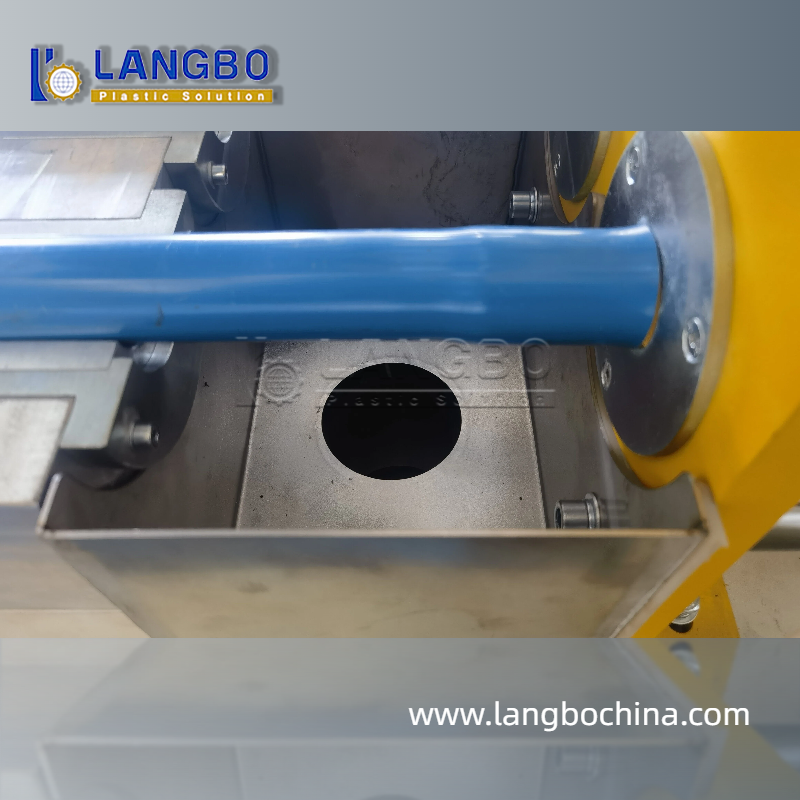

  • Infrared ray heating system with double-heating furnace configuration
  • Each heating furnace equipped with central heating furnace core
  • Expansion tube head shaping method for precise nozzle dimensions
  • Control panel includes conversion switches for expansion solvent plug (direct type) and expansion flexibility sealing washer type plug (R type)
  • Main electric control components utilize imported parts for stable, reliable system performance
Technical Specifications
Pipe Expand Range (Outer Diameter)Φ 20-630mm
Belling TypeR type & U type
Used Oil LabelNo. 40/Hydraulic Oil
Quantity of Heater2
Highest Temperature in Heater280°C
Gas Pressure0.6~0.8Mpa
Water Pressure0.2~0.3Mpa
Pipe Length3-6m
Center Height900mm ± 50mm
Machine Dimensions8615 × 3125 × 2500mm
