Mindray D3 defibrillator power module bottom frame with three-prong power interface Socket

Replacement Mindray D3 defibrillator power board Power Charging PCB Assembly with good condition

► Brief Introduction

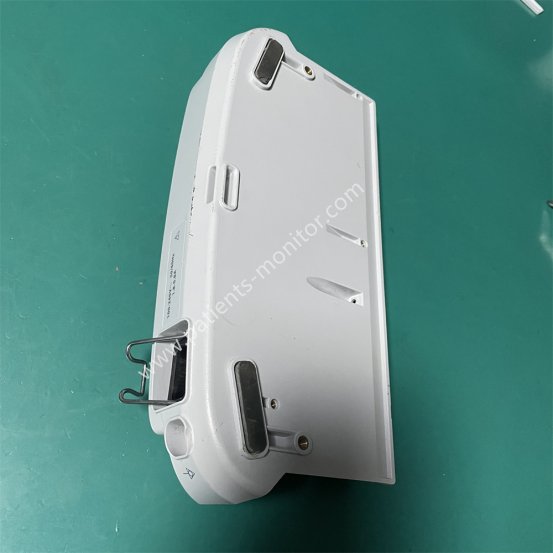

This is the bottom case of the original power module for the Mindray D3 defibrillator, located at the bottom of the monitor. It features two anti-slip feet to reduce slippage when the device is placed flat, increasing resistance. Multiple screw holes are also provided on the bottom for securing the base.

The front of the bottom case has a three-prong power socket with a cable inside for connecting to the device's power board.

The main body of the bottom case is made of white ABS plastic, which is sturdy and wear-resistant, resistant to corrosion in environments with frequent disinfection, and also protects the internal components of the device.

► Features

1. Complete Power Board Protection

This bottom case is a complete protective plate that protects the power board from dust and disinfection moisture, preventing oxidation of power board components and significantly reducing the probability of power short circuits and capacitor bulging failures.

2. Stable Power Supply

The bottom case has a built-in power interface, preventing the power cable from loosening or burning out with frequent plugging and unplugging, greatly reducing the risk of emergency shutdowns due to power outages.

3. Reduced Risk of Leakage

The interior of the base shell uses an insulating cushioning pad to isolate the high-voltage circuitry of the power board from the outside environment, preventing leakage and static electricity interference with the ECG waveform. It also insulates against high temperatures from power components, preventing the shell from softening and deforming.

4. Anti-Slip and Shock-Damping Design

The rubber pad on the bottom cushions vibrations during ambulance and trolley transport, reducing power board swaying and preventing power outages during outdoor emergency rescues.

► Parameters

► Product Picture

►FAQ

Q1: The power socket on the base shell has a loose power cord and disconnects power with a slight touch. Can I replace only the socket?

A1: The socket is injection molded and fixed to the base shell as a single unit and cannot be disassembled and replaced separately. If the socket terminals are worn out or loose, the entire power supply and base shell assembly must be replaced.

Q2: The insulating heat-resistant film on the inner wall of the base shell has fallen off. What are the risks of continuing to use the device?

A2: After the film falls off, the high-voltage components on the power board are directly in contact with the plastic shell. Prolonged heat generation can soften the shell and pose a risk of leakage and static electricity interference with AED heart rhythm recognition. Replacement is recommended.

Q3: The plastic base shell has minor cracks. Does it need to be replaced immediately?

A3: The crack will gradually extend, and moisture and dust will continue to penetrate and damage the power socket and circuit board. It is recommended to replace it in advance to prevent damage during the process.
