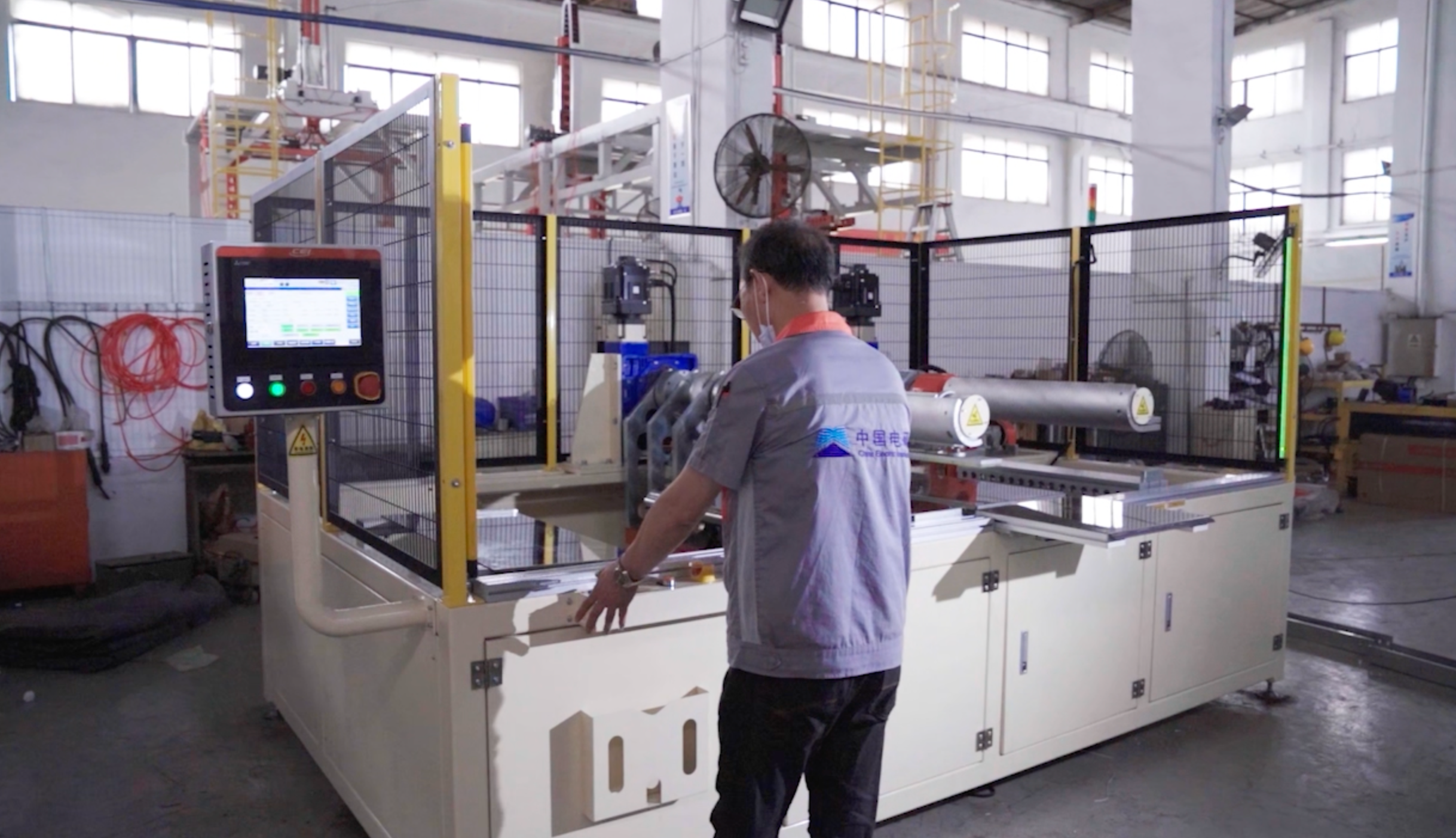

Condenser inline bending machine

1.Applicable product range: L‑shaped and U‑shaped condensers for medium to large commercial air‑conditioning units such as roof‑top units.

2.Bending radius: R76, R89, etc.

3.Workpiece thickness: 0 – 40.11 mm.

4.Fin pitch: ≤ 1.6 mm.

5.Max. workpiece width: 1500 mm.

6.Max. workpiece length: 2000 mm.

7.Clamping opening / stroke: 200 mm.

8.Bending angle: 0 – 120°.

9.Automatic cycle time: for U‑shaped products: ≤ 60 s/cycle; for L‑shaped products: ≤ 30 s/cycle.

I. Equipment Purpose and Working Principle

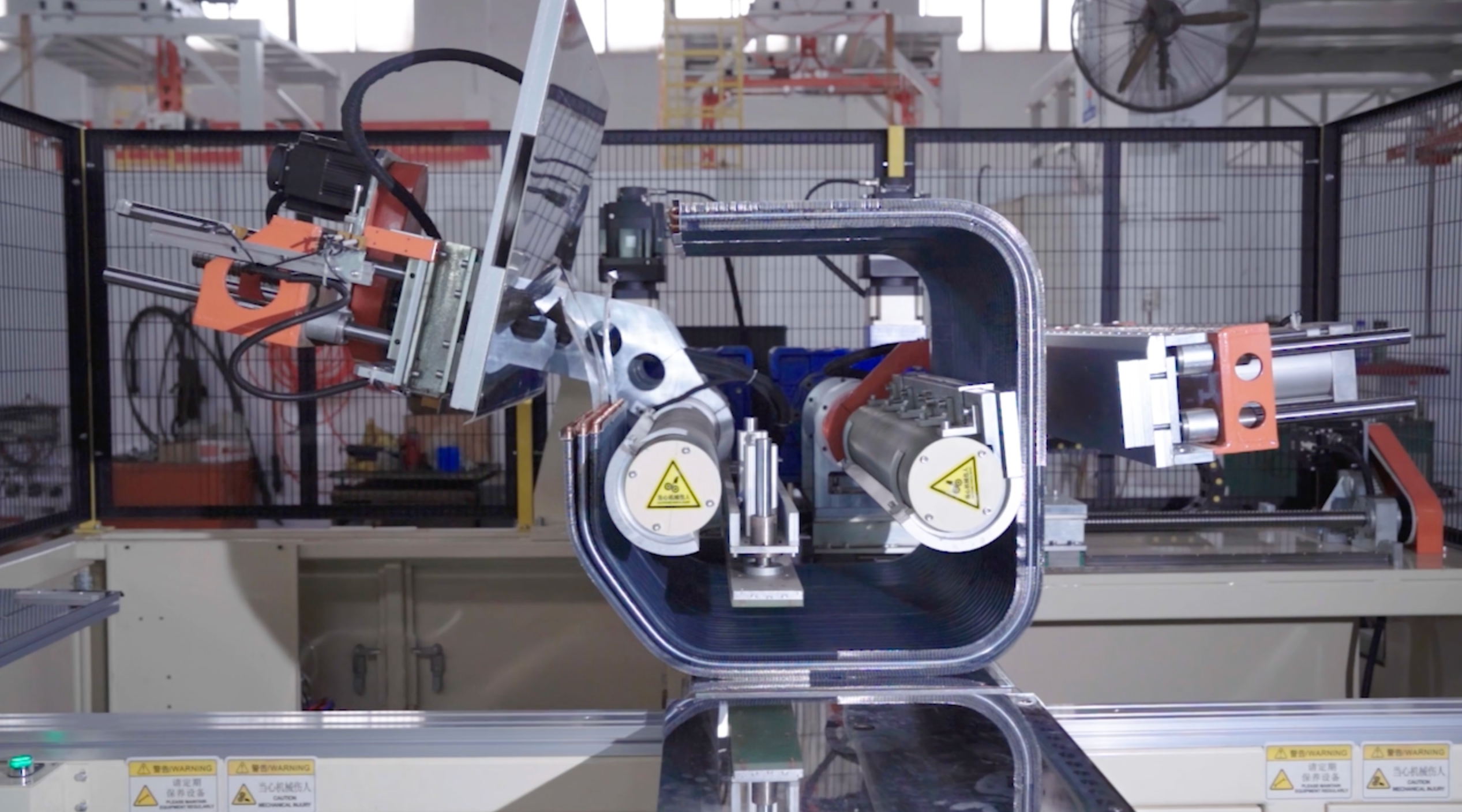

This machine is a fully automatic U/L-type condenser bending and forming equipment specially designed for air conditioner heat exchanger production lines. It is used to automatically bend straight copper-tube aluminum-fin condenser cores into U-shape, L-shape, or UL composite shapes, meeting the compact assembly process requirements of Thai air conditioner outdoor units. The whole machine is adapted to Thailand's industrial power grid and high-temperature workshop environment, satisfying the automated production needs of Southeast Asian air conditioner manufacturers.
II. Main Advantages
1Fully automatic loading and unloading, saving labor and improving efficiency, suitable for automated production line integration.
2Adapted to Thai industrial electricity, stable operation in high-temperature environments.
3Interface supports Chinese/English/Thai trilingual switching, user-friendly operation.
4Stable forming quality, no fin damage, no copper tube deformation, and high yield rate.
