Turboo High Barrier Gate Automatic Pedestrian Access Control LB3211B

Categories High Barrier Gate
MOQ: 1 PC
Delivery Time: 7-15 working days
Power: 24V 500W
Certification: CE, ISO9001,FCC,RoHS,etc.
Model Number: LB3211B
Supply Ability: 1000 units per month
Size: 1500*150*980mm
Brand Name: Turboo
Payment Terms: L/C, T/T
Material: SUS 304+ Tempered glass
Control board: Servo Standard Board + Logic Board + Driver Board
Price: Negotiation
Pass width: 600mm
Mechanism: Enhanced Servo Speed Gate
Place of Origin: China
Packaging Details: Wooden case package
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Turboo High Barrier Gate Automatic Pedestrian Access Control LB3211B

Turboo High Barrier Gate Automatic Pedestrian Access Control LB3211B
The LB3211B turnstile gate features an increased barrier height compared to standard barrier gates, designed specifically for high-security environments. This enhanced design prevents unauthorized personnel from climbing over while maintaining strong security features and sophisticated aesthetic appeal.
Key Features & Functions
  • Engineered for low noise operation with smooth, reliable performance and extended service life
  • Advanced anti-tailgating and anti-reverse pass security functions
  • Configurable card memory settings (with or without memory function)
  • Automatic reset feature - gates return to locked position after set time period
  • Infrared anti-pinch protection during gate operation
  • Compatible with IC/ID cards, barcode scanning, and facial recognition systems
  • Dual operation modes: open or closed configurations
  • Multiple working modes including bidirectional and unidirectional card reading
Product Dimensions

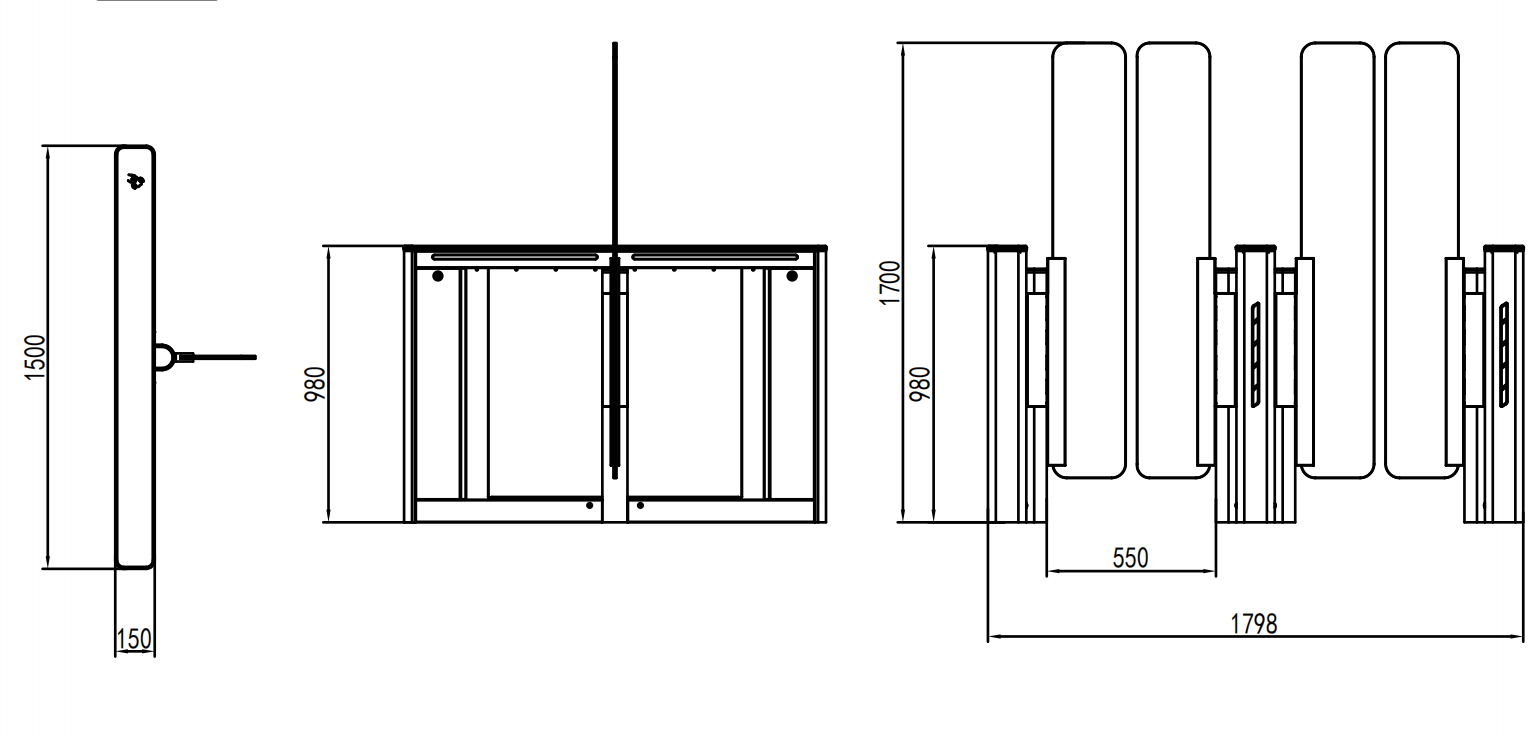

Technical diagram showing dimensions and specifications of Turboo LB3211B high barrier gate
Technical Specifications
Size15000*150*980 (mm)
MaterialSUS 304 with snowflake sand, white marble, tempered glass, solar panel
ThicknessHousing 1.5mm+ Top cover 12mm
Bar Materialδ=10mm Tempered Glass filling panel
MovementEnhanced servo speed gate
Pass Lane600mm
Electronic ControlControl board: Servo standard board+ logic board+ driver board
Motor: XC brushless servo 70:1 200W
Power Supply24V 500W
Installation Examples
Example installation of Turboo LB3211B high barrier gate in commercial setting

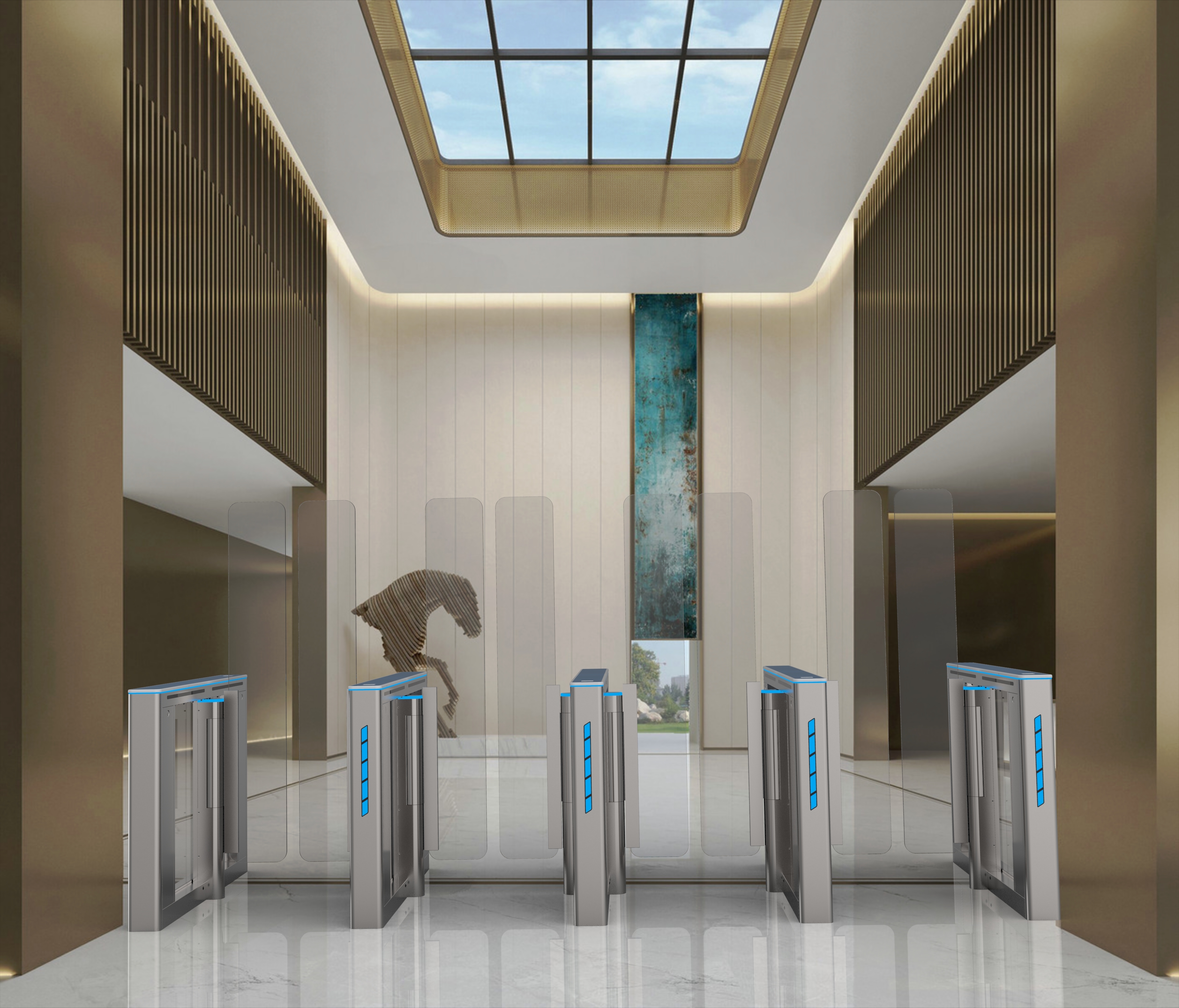

Operational view of Turboo LB3211B high barrier gate system
